6 Installation
6.2.3 Positions of the fan burners and main gas valve
Position of the fan burners in appliances sizes 6.10, 6.20, 10.10, 10.20 and 12.20

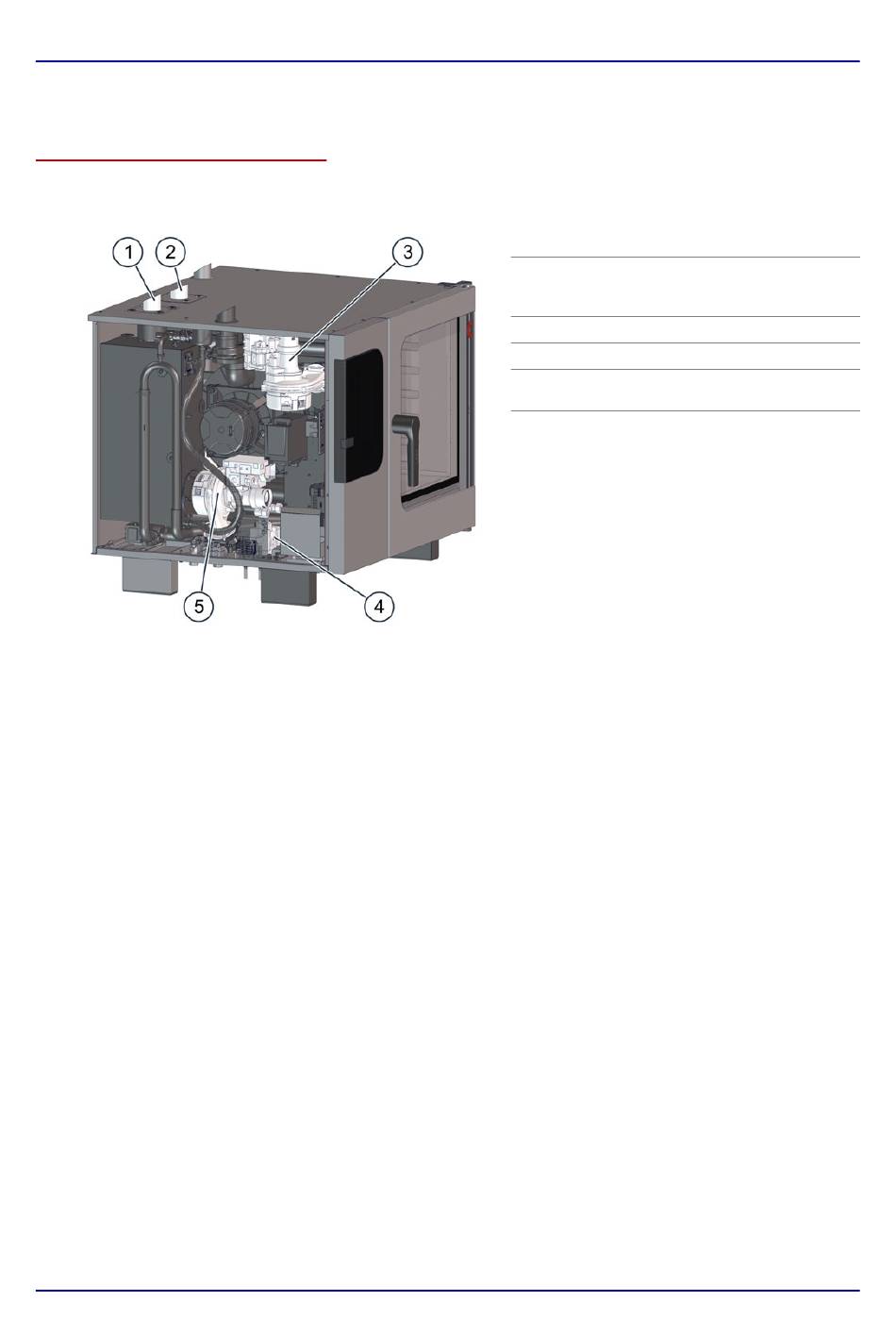

The following illustration shows a size 6.10 combi oven with boiler as an example of gas appliances of
size 6.10, 6.20, 10.10, 10.20 and 12.20:
Item Name
Exhaust outlet from boiler burner
1
(only on models with boiler not
steam injection)
Exhaust outlet for convection burner
2
Convection burner
3
Main gas valve, connection to gas
4
supply in appliance floor
Boiler burner (only on models with
5
boiler not steam injection)
