10 Connection diagrams

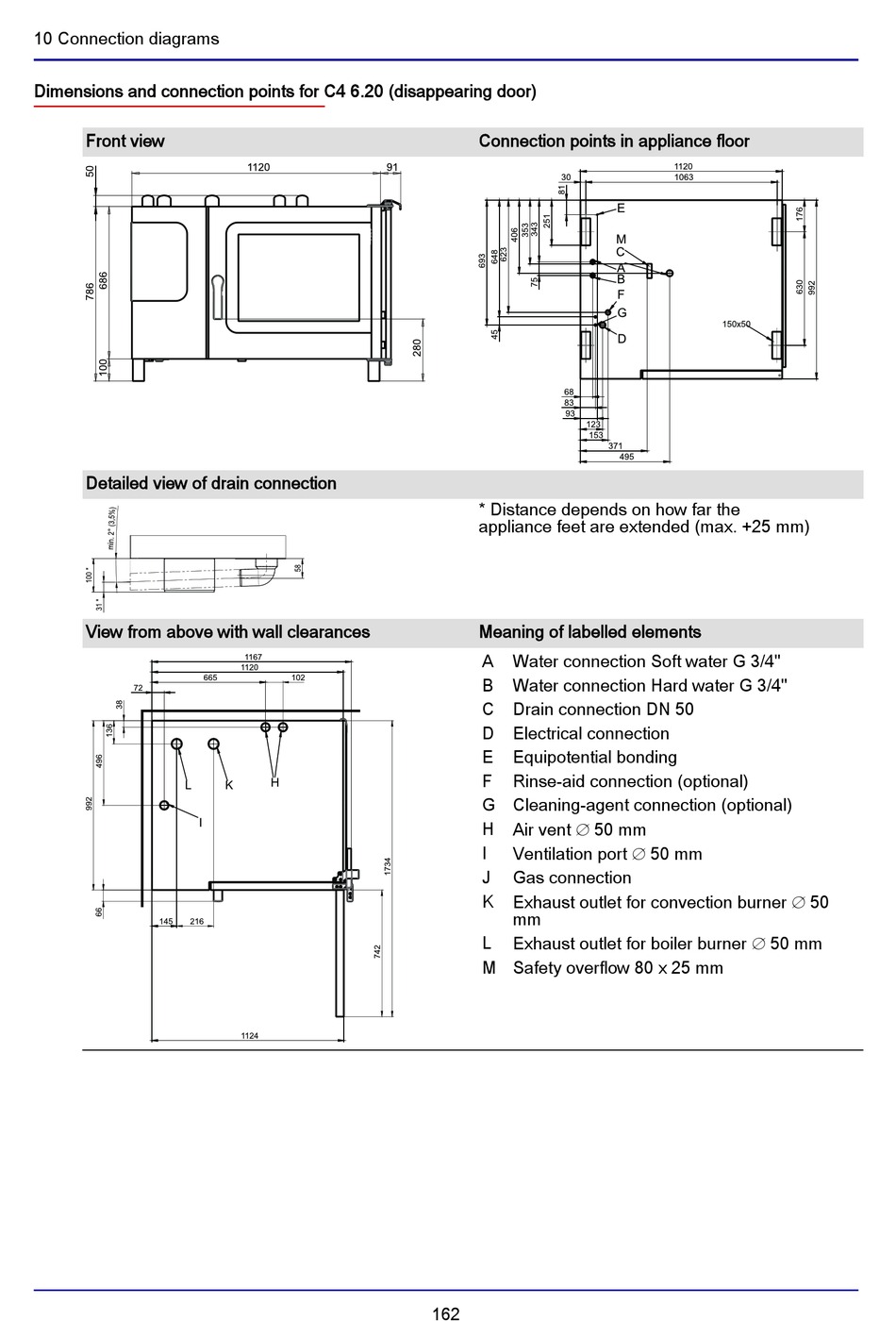

Dimensions and connection points for C4 6.20 (disappearing door)
Front view
Detailed view of drain connection
View from above with wall clearances
Connection points in appliance floor
* Distance depends on how far the
appliance feet are extended (max. +25 mm)
Meaning of labelled elements
A Water connection Soft water G 3/4''
B Water connection Hard water G 3/4''
C Drain connection DN 50
D Electrical connection
E Equipotential bonding
F Rinse-aid connection (optional)
G Cleaning-agent connection (optional)
H
Air vent Æ 50 mm
I Ventilation port Æ 50 mm
J Gas connection
K Exhaust outlet for convection burner Æ 50
mm
L Exhaust outlet for boiler burner Æ 50 mm
M Safety overflow 80 x 25 mm
