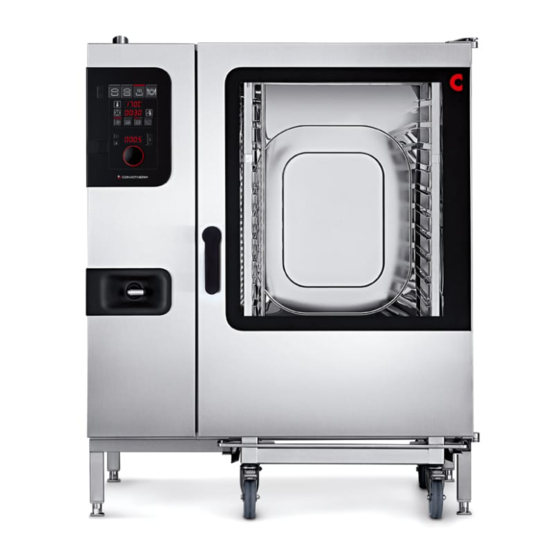

Convotherm 4 easyDial
Operating instructions - Original, ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4 easyDial and is the answer not in the manual?

Questions and answers

Related Manuals for Convotherm 4 easyDial

Summary of Contents for Convotherm 4 easyDial

  • Page 1 Combi Oven Read this manual before using Convotherm 4 easyDial Operating instructions - Original, ENG...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents General Customer Documentation Structure Safety Information That Must Be Read without Exception About These Operating Instructions easyDial Functions easyDial Functions at a Glance Selected cooking profile easyDial Layout easyDial Layout at a Glance Operating Mode Buttons Cooking Temperature Button and Display Cooking Time and Core Temperature Buttons and Display Cooking Function Buttons...
  • Page 4 Table of Contents Fully Automatic ConvoClean Oven Cleaning Workflow Workflow for Fully Automatic ConvoClean Oven Cleaning with Single-Measure Dispensing Configuring Settings in easyDial Setting the Date and Time and Configuring the Temperature Display Importing and Exporting Data Accessing and Starting Import/Export Functions Exiting the Import/Export Functions System Routine When Exporting HACCP Data System Routine When Importing / Exporting a Cookbook...

  • Page 5: General

    1 General 1  General Purpose of this section This section explains how to use these operating instructions. 1.1  Customer Documentation Structure Customer documentation parts The customer documentation for the combi oven is made up of the following: Installation manual ■ Operating manual ■...

  • Page 6: Safety Information That Must Be Read Without Exception

    1 General 1.2  Safety Information That Must Be Read without Exception Safety information found in the documentation for the customer Only the installation manual and operating manual provide safety information for the combi oven. The installation manual provides safety information for the transportation, setup, installation, placing- into-operation, and removal-from-service tasks it describes.

  • Page 7: About These Operating Instructions

    1 General 1.3  About These Operating Instructions Purpose The purpose of these operating instructions is to provide everyone working with/on the combi oven with an overview of the easyDial user interface and how to use it, as well as to enable them to carry out basic tasks with easyDial.

  • Page 8: Easydial Functions

    2 easyDial Functions 2  easyDial Functions Purpose of this section easyDial is the combi oven’s user interface. easyDial enables you to quickly create your own cooking profiles, and has all the corresponding func‐ tions available on a single user interface level. This section provides an overview of the functions in easyDial, as well as a selection of available cook‐...
  • Page 9 2 easyDial Functions Settings The settings in easyDial can be used to set a date and time, select a temperature unit, and adjust the acoustic signal’s volume. Import and export functions The import and export functions can be used, for example, to import and export cookbooks and run software updates.

  • Page 10: Selected Cooking Profile

    2 easyDial Functions 2.2  Selected cooking profile Various cooking profiles Product ACS+ Baguette, frozen 170°C 15 min Baked potato 180°C 93°C Flan 80°C 35 min Fish sticks 210°C 12 min Leavening baked goods 35°C 3 min Roasted chicken breast 235°C 72°C Fresh carrots 100°C 8 min...

  • Page 11: Easydial Layout

    The controls on your combi oven include a series of buttons and a rotary encoder called the Convotherm-Dial (C-Dial). These buttons, together with the C-Dial and the unit’s displays, can be used to select and use all of the unit’s functions.

  • Page 12: Operating Mode Buttons

    3 easyDial Layout 3.2  Operating Mode Buttons Steam Button used to enter a cooking profile with the steam operating mode The indicator light above the button will turn red when ■ the corresponding operating mode is selected Combi-steam Button used to enter a cooking profile with the combi- steam operating mode Convection Button used to enter a cooking profile with the hot air...

  • Page 13: Cooking Function Buttons

    3 easyDial Layout 3.5  Cooking Function Buttons Fan speed Button used to select the cooking function for controlling the airflow speed inside the oven (features five settings) Step 1 Minimum flow speed Step 4 Default setting Step 5 Maximum flow speed HumidityPro Button used to select the cooking function for controlling the moisture level inside the oven (features five set‐...

  • Page 14: Prompt Indicators

    3 easyDial Layout 3.6  Prompt Indicators Out of rinse aid This indicator will light up when more rinse aid needs to be added (only when using fully automatic oven cleaning) Out of cleaning agent This indicator will light up when more cleaning agent needs to be added (only when using fully automatic oven cleaning) Not enough water...

  • Page 15: Program Area

    3 easyDial Layout 3.7  Program Area Cookbook Button used to access the cookbook used to manage up to 99 cooking profiles Please refer to page 33 Cookbook with Button used to access the import/export functions plugged-in USB Please refer to page 54 flash drive Clean Button used to access oven cleaning profiles...

  • Page 16: C-Dial Functions

    3 easyDial Layout 3.8  C-Dial Functions Turning the C-Dial Used to select settings Quickly pressing Used to confirm settings ■ the C-Dial Used to start and end processes ■ Please refer to page 27 Please refer to page 44 Pressing and hold‐ Used to access the 'Settings' ing down the C-Dial Please refer to page 52...

  • Page 17: Cooking With Easydial

    4 Cooking with easyDial 4  Cooking with easyDial Purpose of this section To cook or rethermalize food with your combi oven, you will need a cooking profile that is appropriate for the food being cooked. The easyDial user interface’s operating modes can be used to quickly enter a single-step cooking pro‐ file and start it right away.
  • Page 18 4 Cooking with easyDial Select the 'Fan speed' setting you want. Please refer to page 13 Result: You have now entered a cooking profile. Next steps: Pre-heating or cooling down the oven cavity after being prompted do so. For more information, ■...

  • Page 19: Entering A Cooking Profile That Uses Combi-Steam

    4 Cooking with easyDial 4.2  Entering a Cooking Profile That Uses Combi-Steam Applications Combi-steam is a combination of convection and steam. 'Combi-steam' is an unit operating mode in which food is cooked using combi-steam, The 'Combi-steam' operating mode is suitable for the follow‐ ing cooking methods, among others: Roasting Baking...
  • Page 20 4 Cooking with easyDial Next steps: Pre-heating or cooling down the oven cavity after being prompted do so. For more information, ■ please refer to page 26 Starting the cooking sequence. For more information, please refer to page 27 ■ Cooking workflow with Pre-heat Function, please refer to page 28 ■...

  • Page 21: Entering A Cooking Profile That Uses Convection

    4 Cooking with easyDial 4.3  Entering a Cooking Profile That Uses Convection Applications 'Hot air' is an unit operating mode in which food is cooked using dry heat. The 'Hot air' operating mode is suitable for the following cooking methods, among others: Roasting Baking Cooking au gratin...
  • Page 22 4 Cooking with easyDial Next steps: Pre-heating or cooling down the oven cavity after being prompted do so. For more information, ■ please refer to page 26 Starting the cooking sequence. For more information, please refer to page 27 ■ Cooking workflow with Pre-heat Function, please refer to page 28 ■...

  • Page 23: Entering A Cooking Profile That Uses Rethermalization

    4 Cooking with easyDial 4.4  Entering a Cooking Profile That Uses Rethermalization Applications 'Rethermalization' is a combi oven function in which pre-cooked food is heated up and fully cooked so that it can be served. Almost any type of food can be rethermalized. although it needs to be placed on a plate first.

  • Page 24: Entering A Cooking Profile That Uses The Core Temperature Measurement

    4 Cooking with easyDial 4.5  Entering a Cooking Profile That Uses the Core Temperature Measurement Function Applications When you use the core temperature measurement function, the cooking process’ duration will depend on the food’s internal temperature instead of on a set time. This function can be used with all operating modes.
  • Page 25 4 Cooking with easyDial Next steps: Cooking with the core temperature probe. Please refer to the operating manual for more informa‐ ■ tion. Pre-heating or cooling down the oven cavity after being prompted do so. For more information, ■ please refer to page 26 Starting the cooking sequence.

  • Page 26: Selecting The Pre-Heat And Cool Down Functions

    4 Cooking with easyDial 4.6  Selecting the Pre-Heat and Cool down Functions Prerequisites You must have entered a new cooking profile or opened one from the 'Cookbook'. ■ The system must prompt you to pre-heat or cool down the oven cavity before cooking. ■...

  • Page 27: Starting A Cooking Sequence

    4 Cooking with easyDial 4.7  Starting a Cooking Sequence Prerequisites Before starting a cooking sequence, read and understand the rules, risks, and hazards associated ■ with safely using the unit (as described in the operating manual) and follow all the corresponding instructions.

  • Page 28: Cooking Workflow With Pre-Heat Function

    4 Cooking with easyDial 4.9  Cooking Workflow with Pre-Heat Function Prerequisites You must have entered a new cooking profile or opened one from the 'Cookbook'. ■ The oven cavity temperature must be too low for the selected cooking profile. ■ Cooking workflow The oven temperature is too low The unit will make the 'Pre-heat' indicator flash in order to indicate that the oven cavity should be...
  • Page 29 4 Cooking with easyDial The cooking process ends Once the end of the cooking sequence is reached, the C-Dial will start flashing with a green light. The unit prompts the user to remove the food from oven An acoustic signal asking for the food to be re‐ moved from the unit will be emitted and the 'Open unit door' prompt indicator will light up at the same time.

  • Page 30: Cooking Workflow With Cool Down Function

    4 Cooking with easyDial 4.10  Cooking Workflow with Cool down Function Prerequisites You must have entered a new cooking profile or opened one from the 'Cookbook'. ■ The oven cavity temperature must be too high for the selected cooking profile. ■ Cooking workflow The oven temperature is too high The unit makes the 'Cool down' indicator flash in...
  • Page 31 4 Cooking with easyDial The cooking process ends Once the end of the cooking sequence is reached, the C-Dial will start flashing with a green light. The unit prompts the user to remove the food from oven An acoustic signal asking for the food to be re‐ moved from the unit will be emitted and the 'Open unit door' prompt indicator will light up at the same time.

  • Page 32: Changing Settings During Cooking

    4 Cooking with easyDial 4.11  Changing Settings During Cooking Prerequisites You must have started the cooking sequence already. ■ Changing Settings During Cooking Press the 'Cooking temperature' button to change the cooking temperature. Turn the C-Dial to set the cooking temperature you want.

  • Page 33: Using The Cookbook

    If you have a 'Cookbook' that you are using with other Convotherm combi ovens and would like to use with this one as well, you can simply export and import the cookbook using the units’ USB port and the cookbook import/export functions.
  • Page 34 5 Using the Cookbook Next steps: Pre-heating or cooling down the oven cavity after being prompted do so. For more information, ■ please refer to page 26 Starting a cooking profile from the cookbook. For more information, please refer to page 35 ■...

  • Page 35: Starting A Cooking Profile From The Cookbook

    5 Using the Cookbook 5.2  Starting a cooking profile from the cookbook Prerequisites Before starting a cooking profile, read and understand the rules, risks, and hazards associated with ■ safely using the unit (as described in the operating manual) and follow all the corresponding in‐ structions.

  • Page 36: Creating A New Single-Step Cooking Profile In The Cookbook

    5 Using the Cookbook 5.3  Creating a New Single-Step Cooking Profile in the Cookbook Creating a New Single-Step Cooking Profile in the Cookbook Press the 'Cookbook' button. Turn the C-Dial to select a free program slot for the cooking profile. Yellow C-Dial light = Free program slot Green C-Dial light = The program slot contains a profile Set the settings for your cooking profile.
  • Page 37 5 Using the Cookbook Next steps: Creating a multi-step cooking profile in the cookbook. For more information, please refer to page ■ Accessing a cooking profile found in the cookbook. For more information, please refer to page 33 ■...

  • Page 38: Creating A Multi-Step Cooking Profile In The Cookbook

    5 Using the Cookbook 5.4  Creating a multi-step cooking profile in the cookbook Prerequisites You must have the 'Cookbook' open with a program slot already selected. ■ You must have already entered and saved the first cooking step for a cooking profile. ■...

  • Page 39: Delete The Cooking Profile From The Cookbook

    5 Using the Cookbook 5.5  Delete the cooking profile from the cookbook Cookbook functions Program slots P1 to P99 for cooking profiles Indicates that the cooking profile is about to be deleted Prerequisites The cooking profile must have already been stored in the 'Cookbook'. ■...

  • Page 40: Exiting The Cookbook

    5 Using the Cookbook 5.6  Exiting the cookbook Prerequisites A cooking profile’s program slot must have already been selected in the 'Cookbook'. ■ Exiting the cookbook Press the 'Cookbook' button. Result: The system will exit the 'Cookbook'.

  • Page 41: Cooking Workflow For A Multi-Step Cooking Profile

    5 Using the Cookbook 5.7  Cooking Workflow for a Multi-Step Cooking Profile Prerequisites You must have opened a multi-step cooking profile from the 'Cookbook'. ■ You must have pre-heated or cooled down the oven cavity after being prompted to do so. ■...

  • Page 42: Cleaning With Easydial

    6 Cleaning with easyDial 6  Cleaning with easyDial Purpose of this section By using the unit’s 'Clean' button, you can access the various oven cleaning profiles that are available: Before starting a cleaning sequence, read and understand the rules, risks, and hazards associated with safely cleaning the unit (as described in the operating manual) and follow all the corresponding instructions.
  • Page 43 6 Cleaning with easyDial Next steps: Starting the cleaning profile. For more information, please refer to page 44 ■ Exiting cleaning mode. For more information, please refer to page 45 ■ Semi-Automatic Oven Cleaning Workflow, please refer to page 46 ■...

  • Page 44: Starting A Cleaning Sequence

    6 Cleaning with easyDial 6.2  Starting a Cleaning Sequence Prerequisites Before starting a cleaning profile, read and understand the rules, risks, and hazards associated ■ with safely using the unit (as described in the operating manual) and follow all the corresponding instructions.

  • Page 45: Exiting Cleaning Mode

    6 Cleaning with easyDial 6.4  Exiting cleaning mode Prerequisites You must have selected a cleaning profile already. ■ Exiting cleaning mode Press the 'Clean' button. Result: The system will exit 'Cleaning' mode.

  • Page 46: Semi-Automatic Oven Cleaning Workflow

    6 Cleaning with easyDial 6.5  Semi-Automatic Oven Cleaning Workflow Prerequisites The unit door must be closed. ■ The semi-automatic oven cleaning profile must have been selected. ■ The cleaning profile must have been started. ■ Cleaning process The user removes all food Before the semi-automatic oven cleaning process starts, all food needs to be removed from the oven cavity.
  • Page 47 6 Cleaning with easyDial 2nd cleaning stage After the unit door is closed, the 2nd cleaning stage will start (actual cleaning phase). The display will show the remaining cleaning duration. The C-Dial will light up with a solid yellow light. The unit prompts the user to rinse the oven cavity with water Once the 2nd cleaning stage is complete, an...

  • Page 48: Workflow For Oven Cleaning Without Cleaning Agent

    6 Cleaning with easyDial 6.6  Workflow for Oven Cleaning Without Cleaning Agent Prerequisites The unit door must be closed. ■ The 'oven cleaning without cleaning agent' cleaning profile must have been selected. ■ The cleaning profile must have been started. ■ Cleaning process The user removes all food Before the 'Oven cleaning without cleaning agent'...

  • Page 49: Fully Automatic Convoclean Oven Cleaning Workflow

    6 Cleaning with easyDial 6.7  Fully Automatic ConvoClean Oven Cleaning Workflow Prerequisites The unit door must be closed. ■ A fully automatic ConvoClean oven cleaning profile must have been selected. ■ The cleaning profile must have been started. ■ Cleaning process The user removes all food Before the fully automatic ConvoClean oven clean‐...

  • Page 50: Workflow For Fully Automatic Convoclean Oven Cleaning With Single-Measure

    6 Cleaning with easyDial 6.8  Workflow for Fully Automatic ConvoClean Oven Cleaning with Single- Measure Dispensing Prerequisites The unit door must be closed. ■ A fully automatic ConvoClean oven cleaning profile must have been selected. ■ The cleaning profile must have been started. ■...

  • Page 51: Dispensing

    6 Cleaning with easyDial 2nd cleaning stage After the unit door is closed, the 2nd cleaning stage of the fully automatic ConvoClean oven cleaning process (with single-measure dispensing) will start (actual cleaning stage). The display will show the remaining cleaning duration. The C-Dial will light up with a solid yellow light.

  • Page 52: Configuring Settings In Easydial

    7 Configuring Settings in easyDial 7  Configuring Settings in easyDial Purpose of this section You can use the 'Settings' to configure the unit settings for your combi oven. This section provides step-by-step instructions for the most important tasks involved in the use of these 'Settings.' 7.1  Setting the Date and Time and Configuring the Temperature Display Setting the date, time, temperature display, and volume Press and hold down the C-Dial until the display...
  • Page 53 7 Configuring Settings in easyDial Then press the C-Dial briefly to exit the 'Settings'. Result: The 'Settings' you chose will be saved.

  • Page 54: Importing And Exporting Data

    8 Importing and Exporting Data 8  Importing and Exporting Data Purpose of this section You can use the import/export functions to configure the unit settings for your combi oven. In order to import and export data, you will need to use your combi oven’s USB port. The port is located on the easyDial control panel.

  • Page 55: Exiting The Import/Export Functions

    8 Importing and Exporting Data Accessing and Starting Import/Export Functions Press the 'Cookbook' button. Turn the C-Dial to select an import or export func‐ tion ('Pro In', for example). Start the import/export function you selected ('Pro In', for example) by pressing the C-Dial. 8.2  Exiting the Import/Export Functions Prerequisites The USB drive must be plugged in.

  • Page 56: System Routine When Exporting Haccp Data

    8 Importing and Exporting Data 8.3  System Routine When Exporting HACCP Data Prerequisites The USB drive must be plugged in. ■ The function must have already been accessed and started. ■ Export system routine The system exports the HACCP data The unit will start exporting the HACCP data to the USB drive.

  • Page 57: System Routine When Importing / Exporting A Cookbook

    8 Importing and Exporting Data 8.4  System Routine When Importing / Exporting a Cookbook Prerequisites The USB drive must be plugged in. ■ The import/export function must have already been accessed and started. ■ Import / export system routine The system imports/exports the cookbook data The unti will start importing/exporting the data.

  • Page 58: System Routine When Importing A Cleaning Profile

    8 Importing and Exporting Data 8.5  System Routine When Importing a Cleaning Profile Prerequisites The USB drive must be plugged in. ■ The import/export function must have already been accessed and started. ■ Import system routine The system imports the cleaning profile data The unit will start importing the data corresponding to the selected cleaning profile.

  • Page 59: System Routine When Importing A Software Update

    8 Importing and Exporting Data 8.6  System Routine When Importing a Software Update Prerequisites The USB drive must be plugged in. ■ The function must have already been accessed and started. ■ Software update system routine The system updates the software The unit will start the software update and import the corresponding data from the USB drive while showing the import’s progress.
  • Page 61 Additional technical documentation can be found in the download center at : www.convotherm.com Welbilt off ers fully-integrated kitchen systems and our products are ® backed by KitchenCare aftermarket parts and service. Welbilt’s portfolio of award-winning brands includes Cleveland™, Convotherm , Delfi eld ® ® fi tkitchen , Frymaster ®...
