Convotherm 4 Series Installation Manual page 83

6 Installation
4.
5.
6.

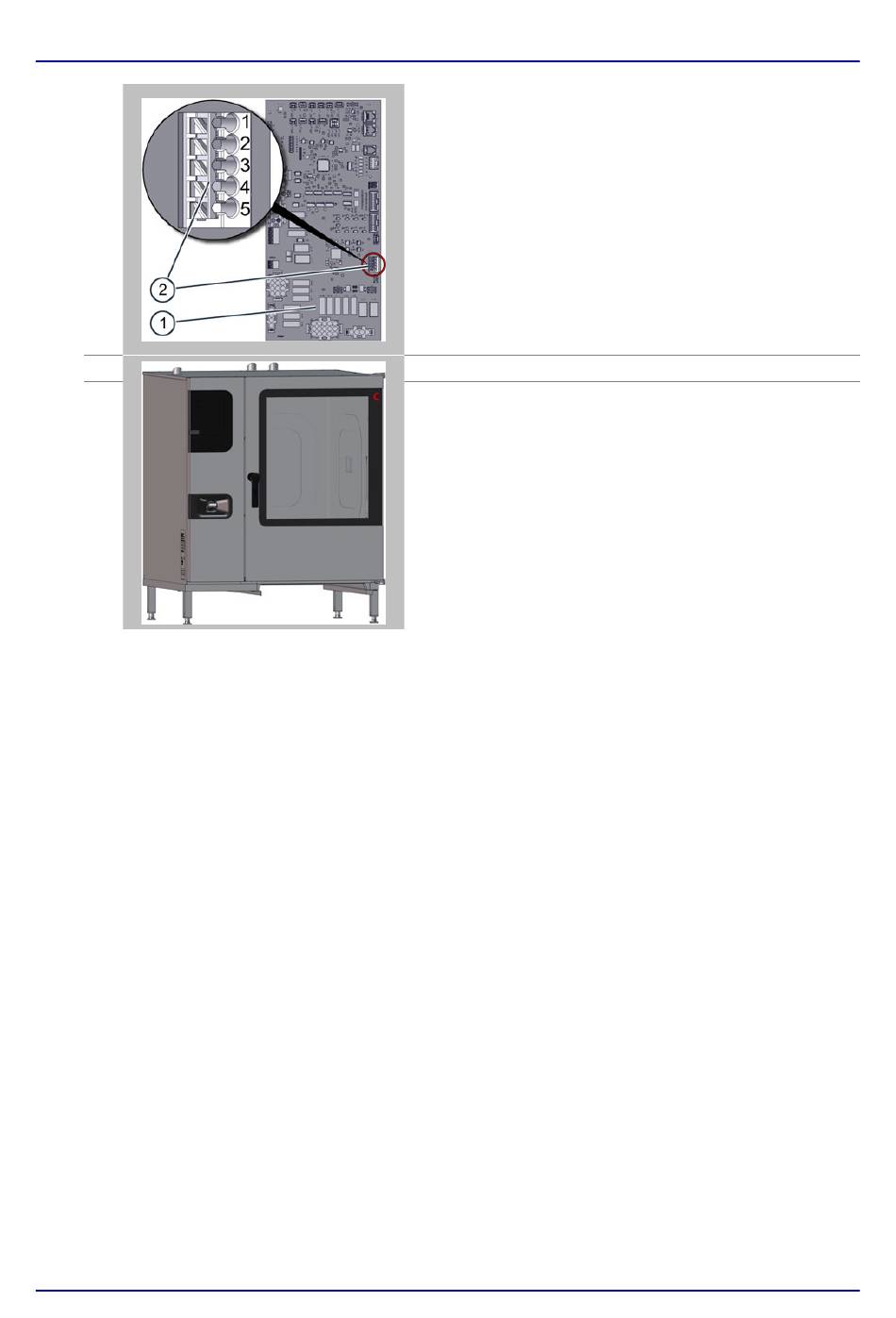

Connect the signal-tower connecting cable to the combi
oven in accordance with the PIN assignment shown be‐
low.
PIN Assignment
GND
1
Signal: buzzer
2
Signal: red light
3
Signal: yellow light
4
Signal: green light
5
Refit the side panel on the combi oven.
Put the combi oven and signal tower into operation.
83
Wire colour
BU (Blue)
GY (Grey)
BK (Black)
WH (White)
BN (Brown)
