2 Design and function
2.2 Layout and function of the operating panel

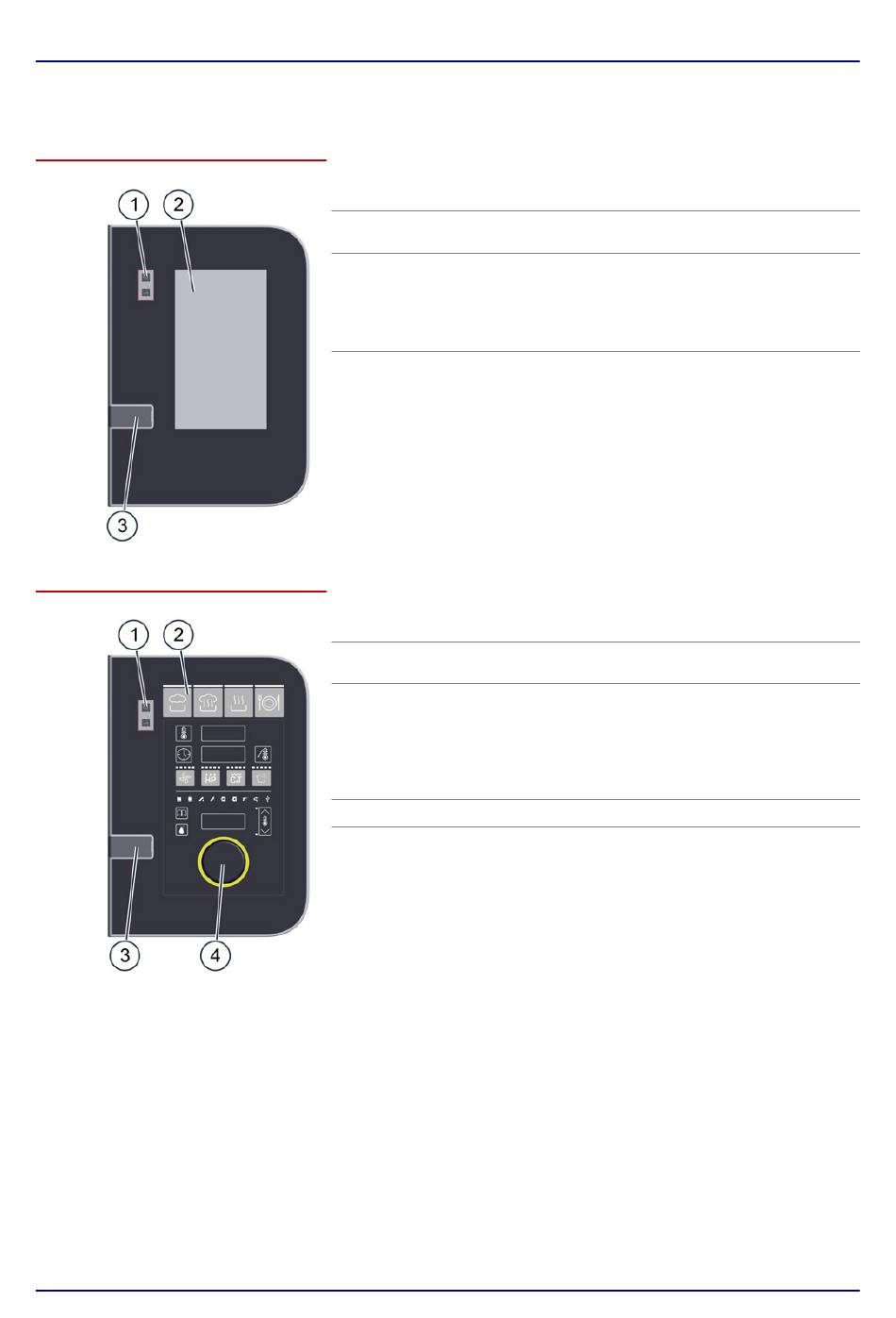

Layout and elements of the easyTouch operating panel
Layout and elements of the easyDial operating panel
Item Name
Appliance
1
ON/OFF switch
Full
2
touchscreen
display
USB port
3
Item Name
Appliance
1
ON/OFF switch
Control panel
2
USB port
3
C-Dial
4
19
Function
Switches the combi oven on and off
Central controls for appliance
Appliance operated by touching icons
■
on the control panel (full touchscreen
display)
Status displays
■
For connecting a USB stick
Function
Switches the combi oven on and off
Central controls for appliance
Buttons for entering the cooking pro‐
■
grams
Displays showing the values you have
■
set
Prompts for the user
■
For connecting a USB stick
Combined rotary knob and pushbutton for
adjusting and setting the cooking parame‐
ters.
