Convotherm 4 Series Installation Manual page 17

2 Design and function
Item Name
Suction panel
7
Core temperature probe,
8
sous-vide sensor (optional)
Built-in preheat bridge in
9
appliance door
Loading trolley
10
Cooking chamber
11
Recoil hand shower
12
(this is not fitted on certain
appliances)
Side panel
13
Appliance feet
14
Ventilation slots under‐
15
neath the appliance
Type plate
16

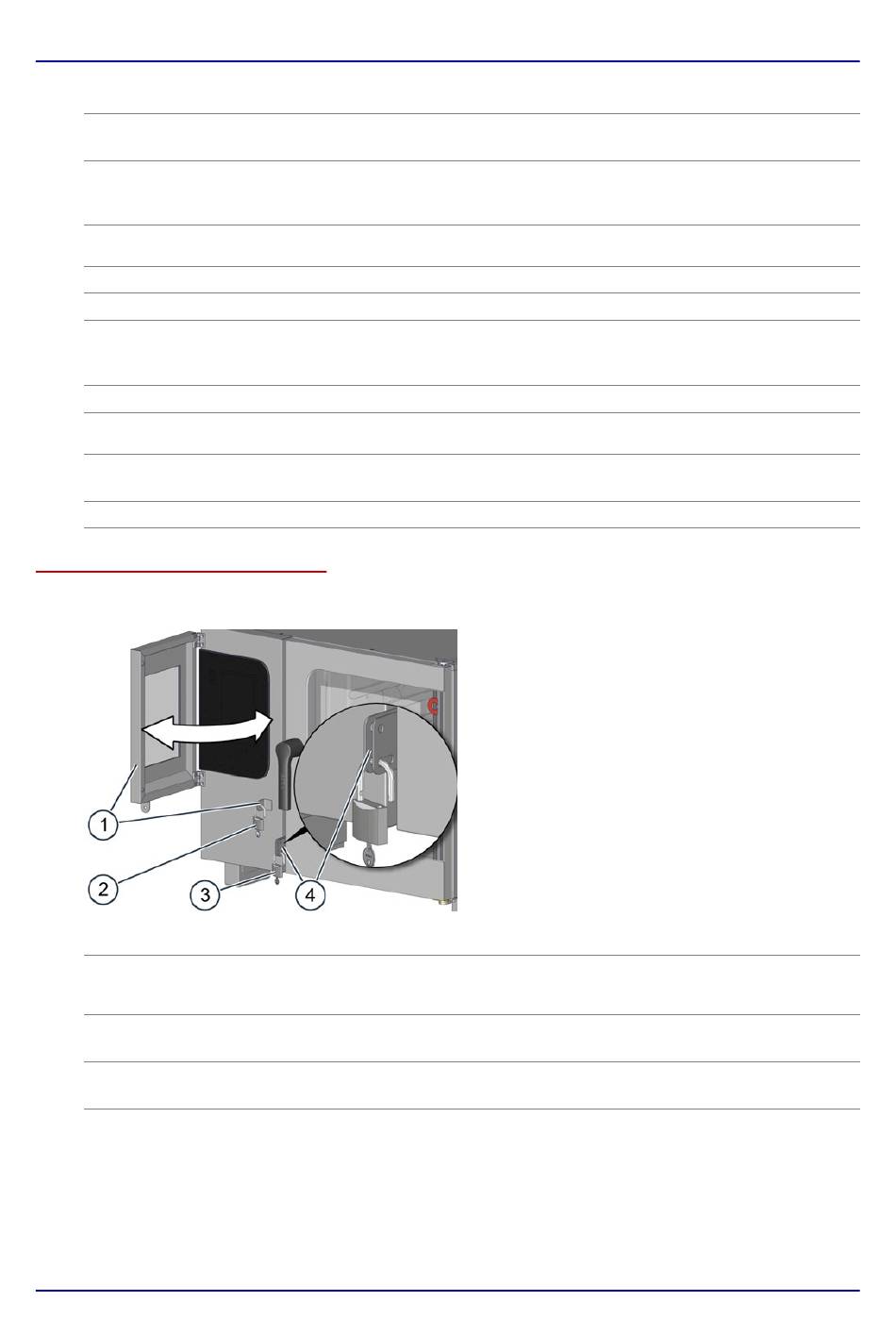

Components and function of the special security mechanism (prison model only)
The following illustration shows the optional special security mechanism for a size 6.10 gas combi
oven as an example of all appliance sizes:
Item Name
Lockable cover to the op‐
1
erating panel
Padlock
2
Padlock
3
Locking mechanism for the
4
appliance door
Function
Distributes the heat evenly inside the cooking chamber
■
Separates the fan compartment from the cooking chamber
■
Measures the core temperature of the food being cooked
■
Available in two connection options: permanent internal con‐
■
nection or temporary external connection
Used for safety purposes during preheating and reduces energy
wastage
Holds standard-sized food containers
Contains the food during cooking operation
Intended solely for rinsing out the cooking chamber with water
■
Retracts automatically into the holder after use
■
Antibacterial ("HygienicCare")
■
Covers the appliance wiring compartment
Can be adjusted in height to allow the appliance to be positioned
horizontally
Used for appliance ventilation
■
Must not be covered
■
Identifies the appliance
Function
The hinged cover can be closed over the operating panel and
locked to the appliance case in order to prevent unauthorized use
of the combi oven.
To lock the operating panel cover to the appliance case
■
Not supplied
■
To lock the appliance door to the appliance case
■
Not supplied
■
Provides a two-stage lock for the appliance door to prevent unau‐
thorized opening and closing of the appliance door
Behaviour of the appliance door:
When the top locking position is used, the appliance door re‐
■
mains fully closed.
When the bottom locking position is used, the appliance door
■
can be opened as far as the venting position on table-top units
or as far as the on-latch position for floor-standing units.
17
