2 Design and function
Item Name
Cooking chamber
10
Recoil hand shower
11
(this is not fitted on certain
appliances)
Appliance feet
12
Side panel
13
Ventilation slots under‐
14
neath the appliance
Type plate
15

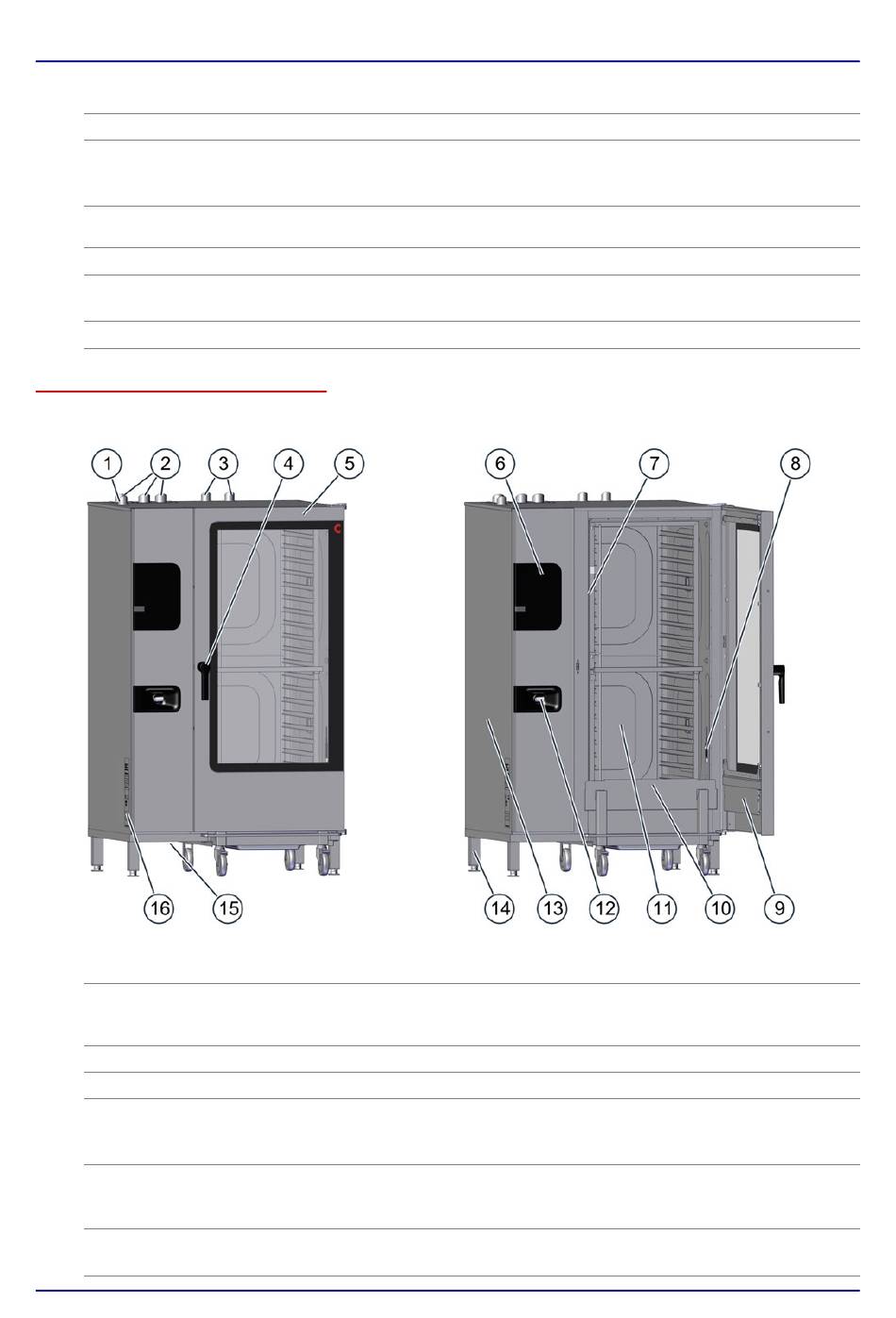

Components and function (gas floor-standing units)
The following illustration shows a size 20.20 combi oven as an example of all gas floor-standing units:
Item Name
Ventilation port
1
Exhaust outlet
2
Air vent
3
Door handle
4
Appliance door
5
Operating panel
6
Function
Contains the food during cooking operation
Intended solely for rinsing out the cooking chamber with water
■
Retracts automatically into the holder after use
■
Antibacterial ("HygienicCare")
■
Can be adjusted in height to allow the appliance to be positioned
horizontally
Covers the appliance wiring compartment
Used for appliance ventilation
■
Must not be covered
■
Identifies the appliance
Function
External air intake for removing the moisture removal from the
■
cooking chamber
Smooths out any pressure fluctuations in the cooking chamber
■
Takes away hot exhaust gases
Allows hot vapour to escape
Opens and closes the appliance door
■
On-latch position for opening the appliance safely
■
Antibacterial material containing silver ions ("HygienicCare")
■
Closes the cooking chamber
■
Can slide back beside the appliance when opened in order to
■
save space ("disappearing door") (optional)
Used for operating the appliance
■
Antibacterial ("HygienicCare")
■
