Convotherm 4 Series Installation Manual page 52

5 Setting up the appliance
Height requirement

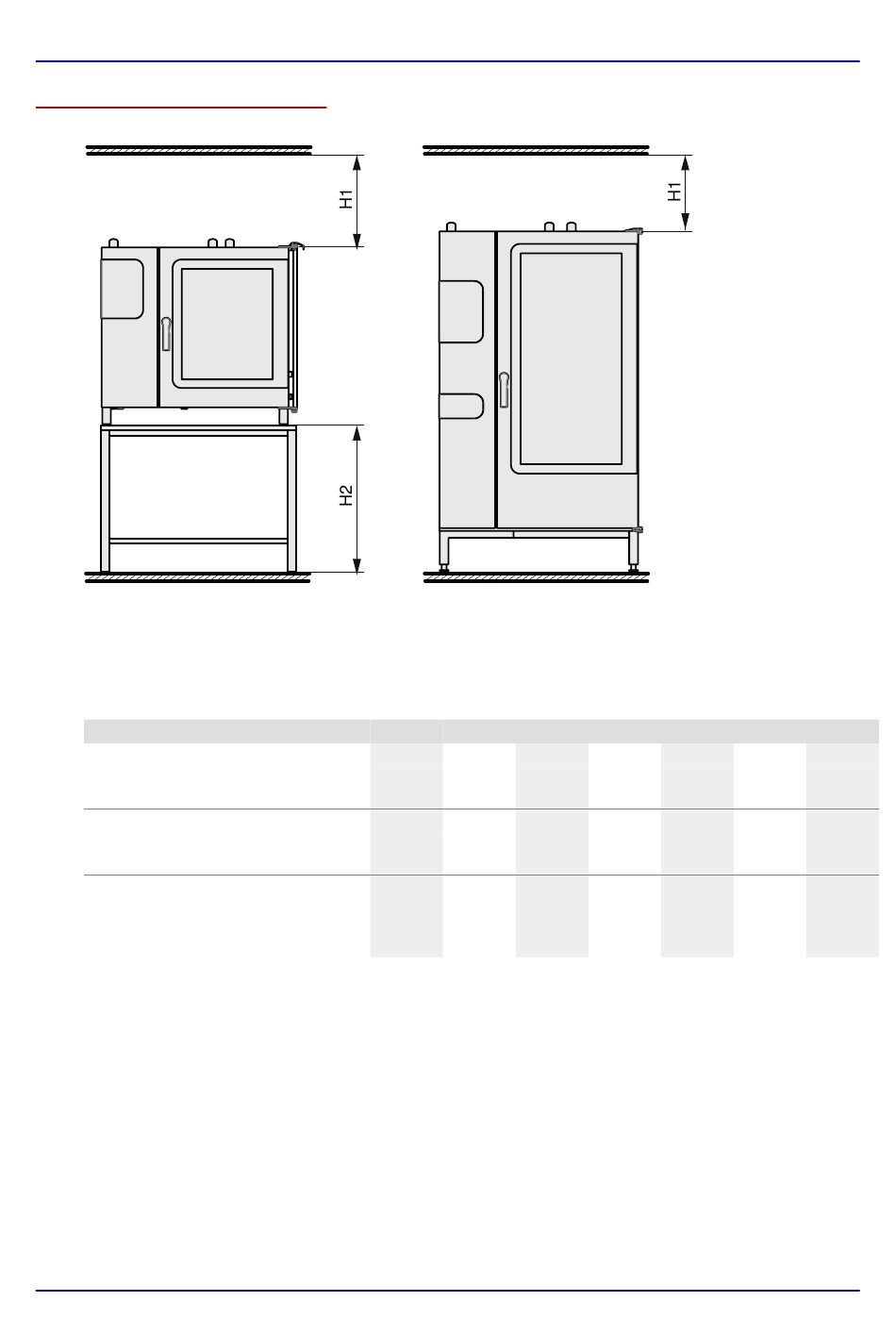

The following diagram and table show the vertical space needed by the appliance:
The service engineer who is responsible for setting up the appliance must take into account the nature
of the ceiling and any adjacent systems that may be used (air ventilation system, vapour extractor
hood etc.) when designing the particular clearance needed between the top of the appliance and the
ceiling. In this context, the vertical distance H1 must be understood as a guide value for the minimum
vertical clearance.
Meaning
Electric appliances
H1 Guide value for the mini‐
mum vertical clearance
Gas appliances
H1 Guide value for the mini‐
mum vertical clearance
Electric appliances and gas applian‐
ces
H2 Installation height
6.10 6.20
[mm] 500 500
[mm] 1000 1000
[mm] 620 - 620 -
900 900
52
10.10 10.20 12.20
500 500 500
1000 1000 1000
620 - 620 - -
900 900
20.10 20.20
500 500
1000 1000
- -
