6 Installation
6.4.3  Connecting the fully automatic oven cleaning system
Connecting the fully automatic oven cleaning system to canisters

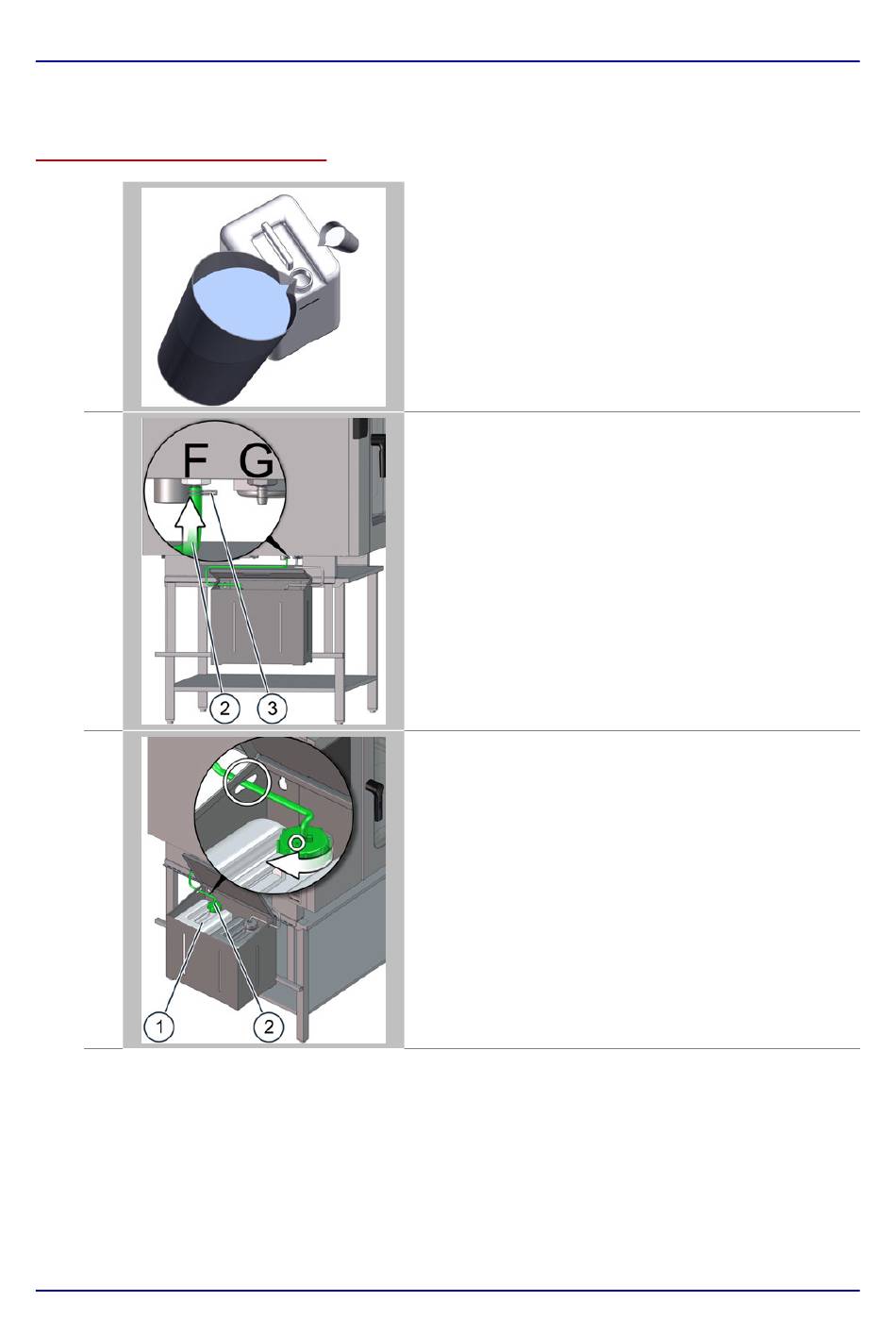

1.
2.
3.
Mix the supplied ConvoCare Kconcentrate with soft water
in the empty ConvoCare rinse aid canister.
Follow the instructions in the user manual on mixing the
ConvoCare rinse aid in the canister.
Plug the green extractor tube (2) for the ConvoCare rinse
aid onto the connector nipple of the rear tube fitting (F)
and secure the tube in place with the wire clip (3) (see la‐
bel for rinse-aid connection on the left-hand side of the
appliance).
Insert the suction nozzle on the green extractor tube into
the rinse-aid canister (1). There must be no kinks in the
tube and the vent hole in the canister must be open and
unblocked.
