2.2.13 Strobe Connections Behind the Port Cover

See
Amplifier (AC-Powered).
See
Microphone Connections
Name
MIC IN
Strobe Connections
Name
STROBE
Operations Guide
Figure 2-21 for the additional connection options for the InformaCast Enabled Loudspeaker

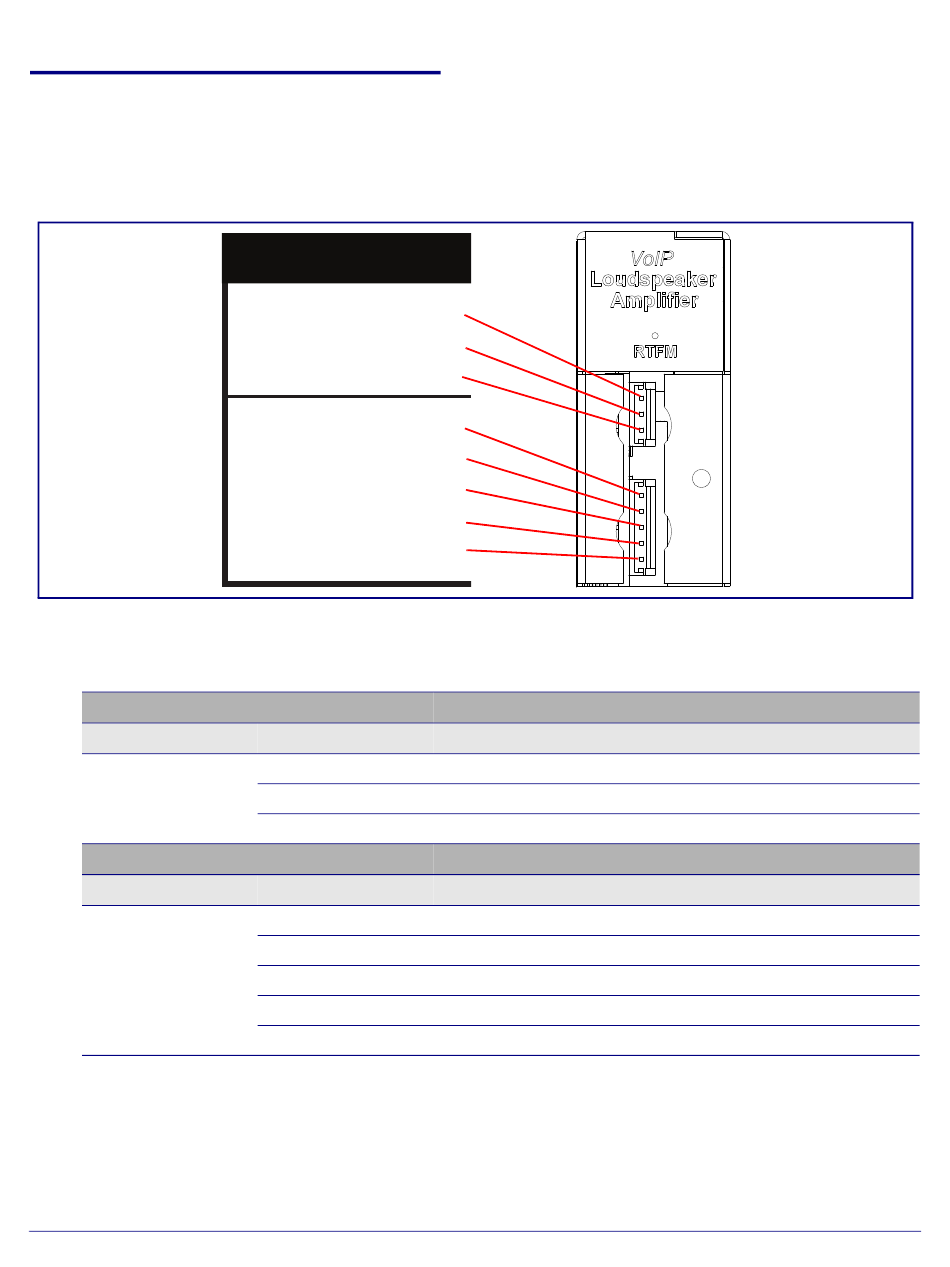

Figure 2-21. Connections Behind the Port Cover
CLASS II WIRING
MIC IN
STROBE
Table 2-4 for the descriptions of the connections behind the port cover.
Table 2-4. Connections Behind the Port Cover
Connection
J6-1
J6-2
J6-3
Connection
J9-1
J9-2
J9-3
J9-4
J9-5
3
2
1
5
4
3
2
1
Description
Microphone chassis ground connections
Microphone signal input
Microphone common input
Description
Ground
Strobe positive power (+24V)
Ground
I2C data
I2C clock
