2.2.5 Strobe Connections Behind the Port Cover

Microphone Connections
Name
MIC IN
Strobe Connections
Name
STROBE
Operations Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299
See Figure 2-13 for the additional connection options for the SIP Loudspeaker Amplifier (PoE).

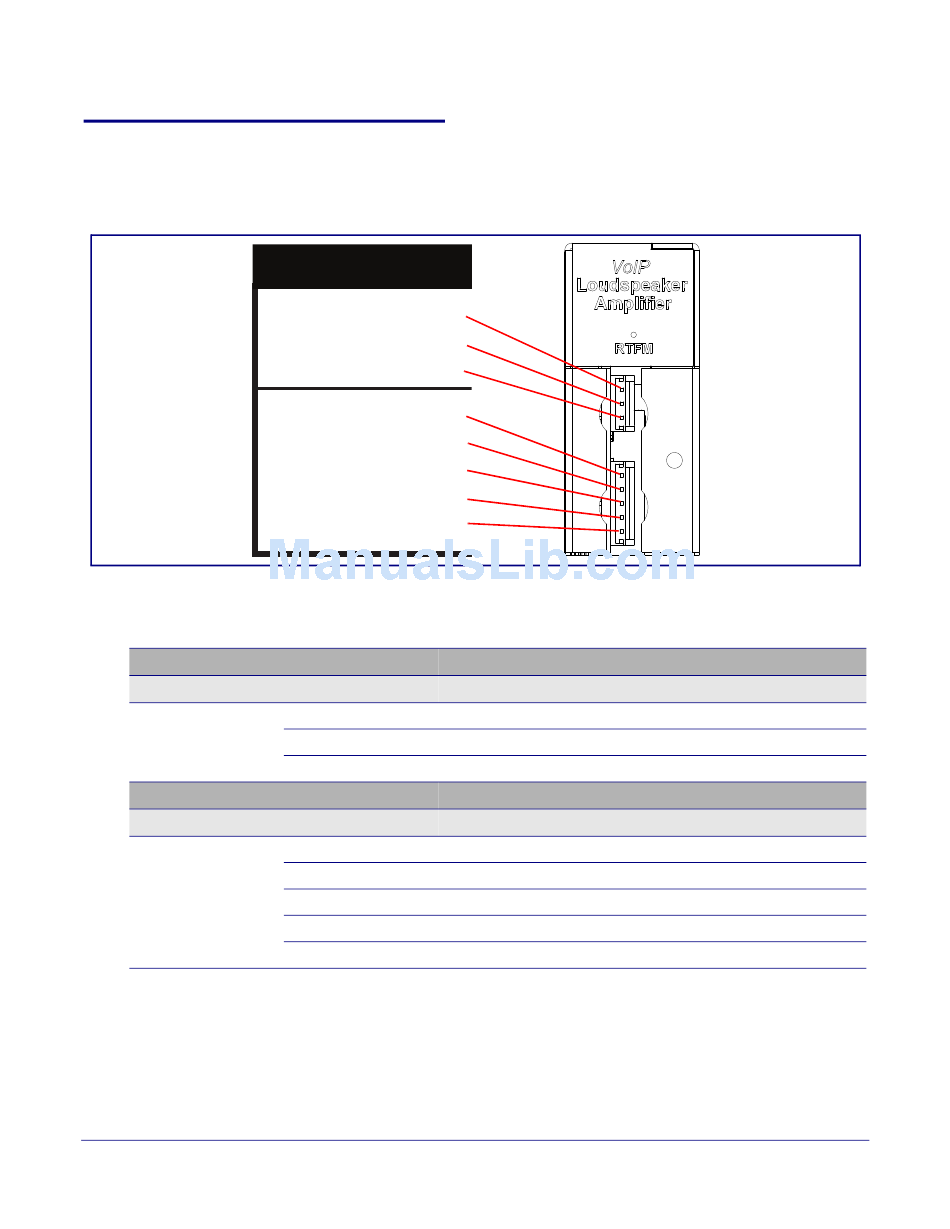

Figure 2-13. Connections Behind the Port Cover
CLASS II WIRING
MIC IN
STROBE
See Table 2-4 for the descriptions of the connections behind the port cover.
Table 2-4. Connections Behind the Port Cover
Connection
J6-1
J6-2
J6-3
Connection
J9-1
J9-2
J9-3
J9-4
J9-5
3
2
1
5
4
3
2
1
Description
Microphone chassis ground connections
Microphone positive input
Microphone negative input
Description
Ground
Strobe positive power (+24V)
Ground
I2C data
I2C clock
