2.2.4 Strobe Connections Behind the Port Cover

See
24 VDC Auxiliary Power
Connections
Strobe Connections
See
24 VDC Auxiliary Power Source Connections (replacement of PoE power)
Connection
J6-1
J6-2
J6-3
Strobe Connections
Connection
JX-1
JX-2
JX-3
JX-4
JX-5
Operations Guide
Figure 2-13 for the additional connection options for the SIP Paging Amplifier.

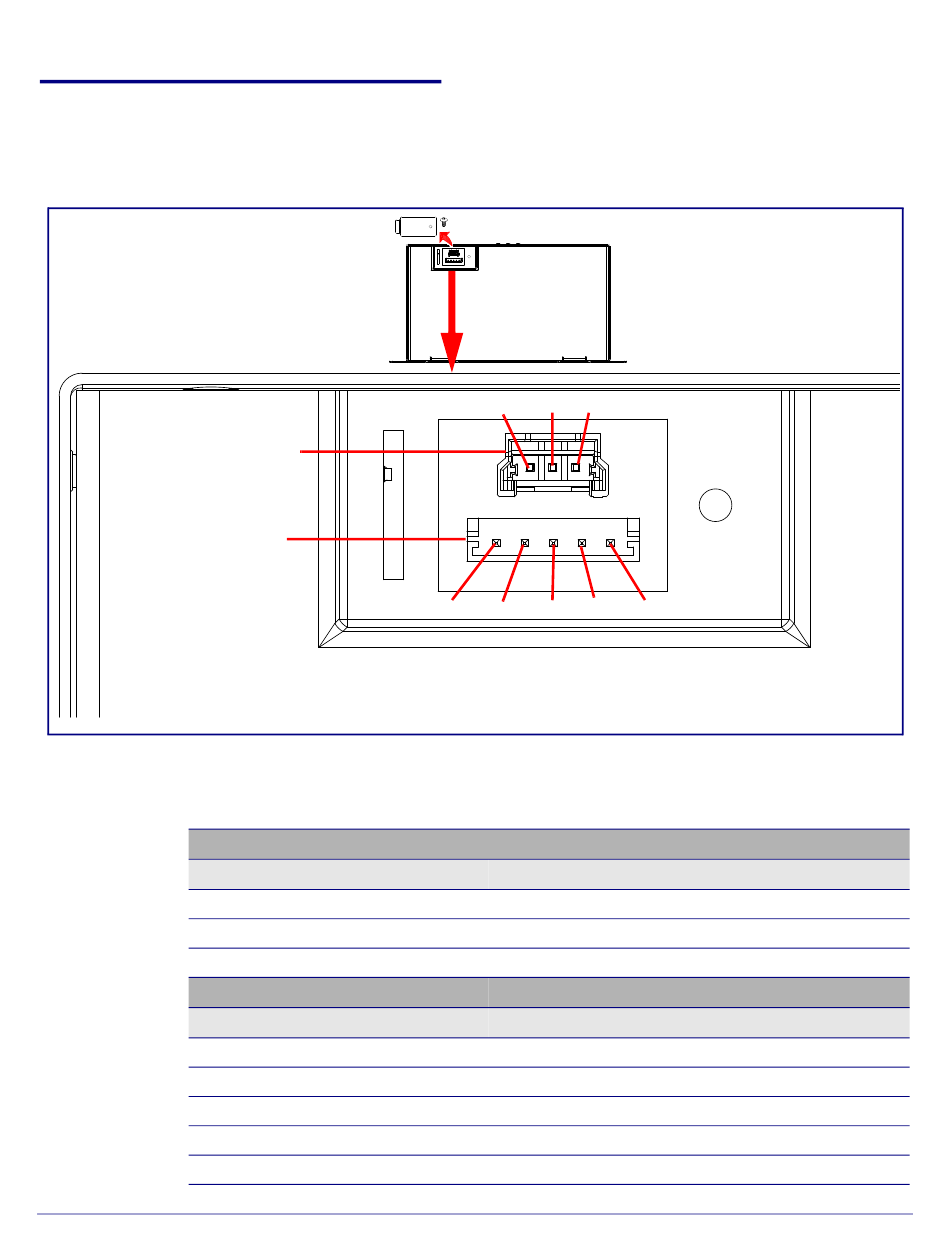

Figure 2-13. Connections Behind the Port Cover
Table 2-4 for the descriptions of the connections behind the port cover.
Table 2-4. Connections Behind the Port Cover
J6-3 J6-2 J6-1
JX-5 JX-4 JX-3 JX-2
Description
+24VDC
Ground
Chassis Ground
Description
Ground
Strobe positive power (+24V)
Ground
I2C data
I2C clock
931971A
Installing the SIP Paging Amplifier
SIP Paging Amplifier Setup
JX-1
