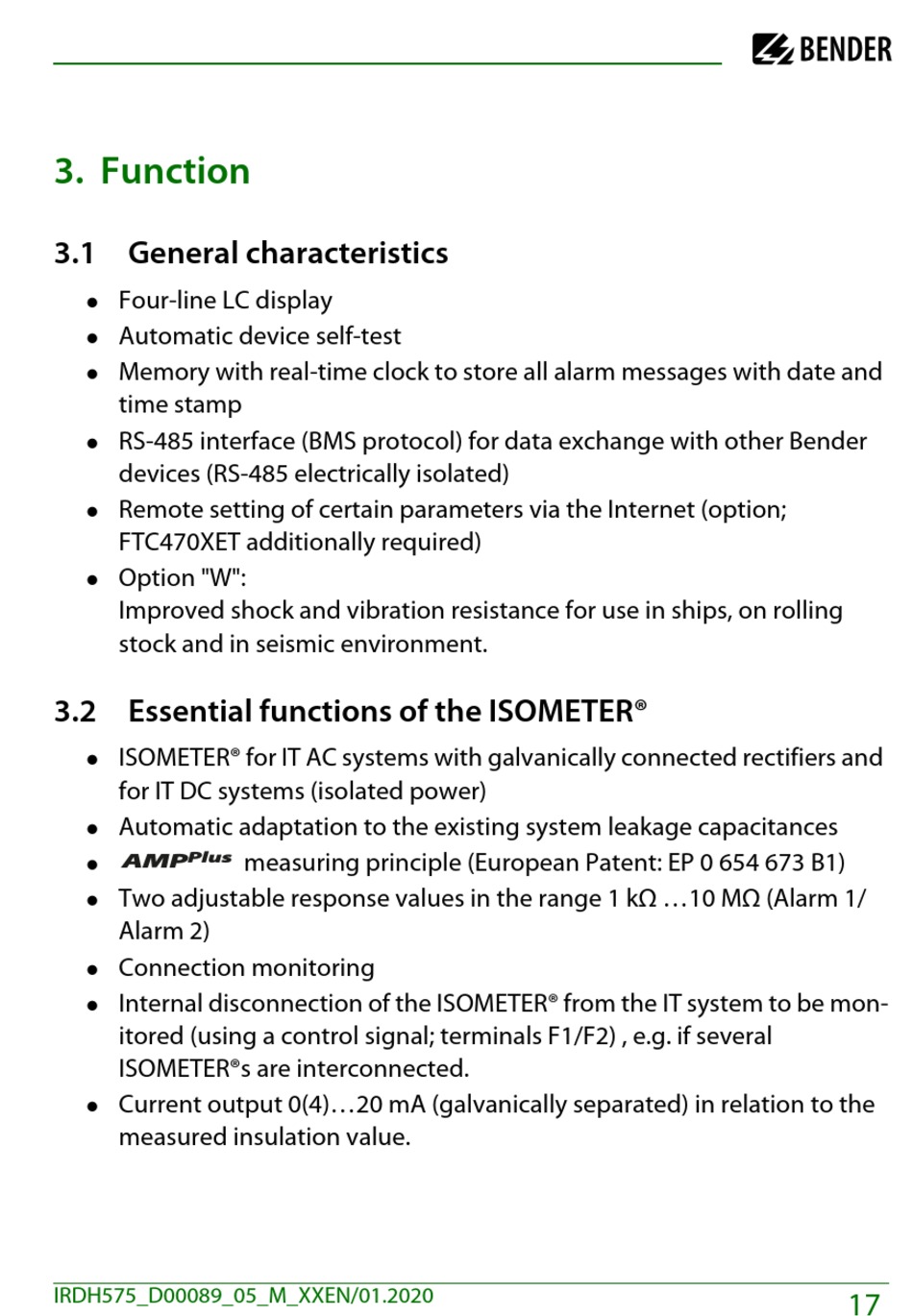

3. Function

3.1 General characteristics

Four-line LC display
 
Automatic device self-test
 
Memory with real-time clock to store all alarm messages with date and
 
time stamp
RS-485 interface (BMS protocol) for data exchange with other Bender
 
devices (RS-485 electrically isolated)
Remote setting of certain parameters via the Internet (option;
 
FTC470XET additionally required)
Option "W":
 
Improved shock and vibration resistance for use in ships, on rolling
stock and in seismic environment.
3.2 Essential functions of the ISOMETER®
ISOMETER® for IT AC systems with galvanically connected rectifiers and
 
for IT DC systems (isolated power)
Automatic adaptation to the existing system leakage capacitances
 
 
Two adjustable response values in the range 1 kΩ ...10 MΩ (Alarm 1/
 
Alarm 2)
Connection monitoring
 
Internal disconnection of the ISOMETER® from the IT system to be mon-
 
itored (using a control signal; terminals F1/F2) , e.g. if several
ISOMETER®s are interconnected.
Current output 0(4)...20 mA (galvanically separated) in relation to the
 
measured insulation value.
IRDH575_D00089_05_M_XXEN/01.2020
measuring principle (European Patent: EP 0 654 673 B1)
