5. Commissioning flow chart

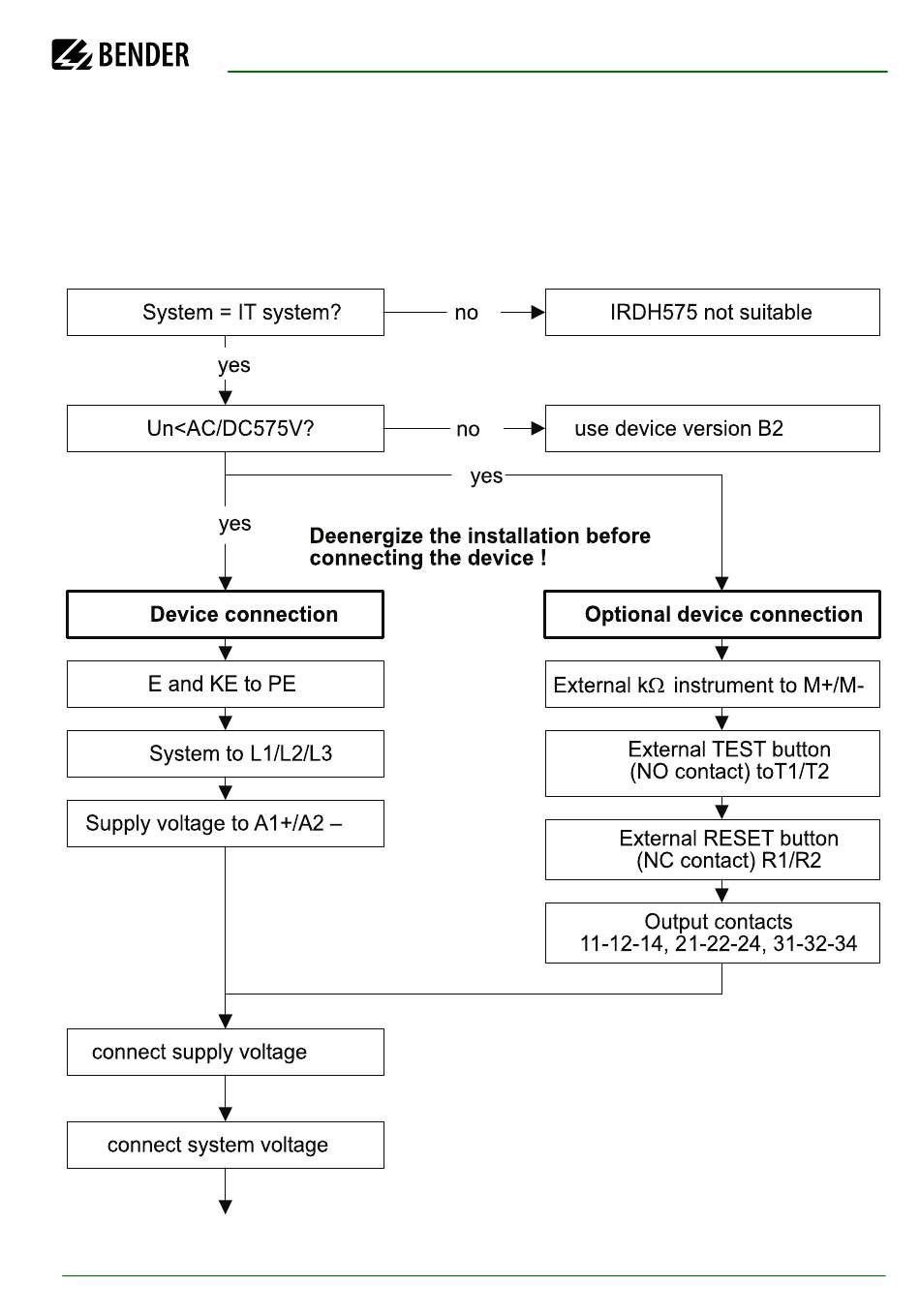

5.1 Commissioning of the ISOMETER® function range (1)
IRDH575_D00089_05_M_XXEN/01.2020
33
Table of
Contents
Previous
Page
Next
Page
1
...
29
30
31
32
33
34
35
36
