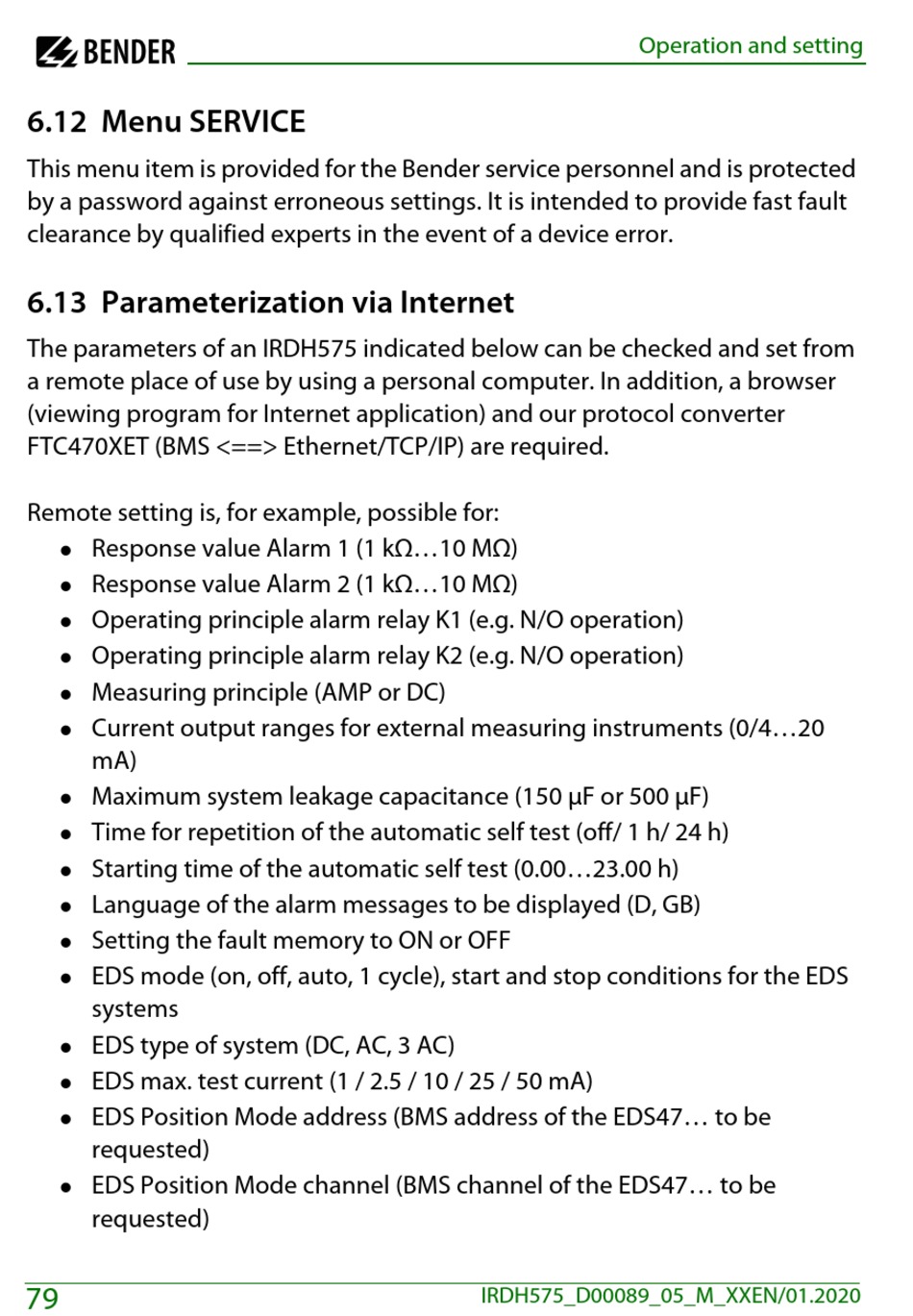

6.12 Menu SERVICE

This menu item is provided for the Bender service personnel and is protected
by a password against erroneous settings. It is intended to provide fast fault
clearance by qualified experts in the event of a device error.

6.13 Parameterization via Internet

The parameters of an IRDH575 indicated below can be checked and set from
a remote place of use by using a personal computer. In addition, a browser
(viewing program for Internet application) and our protocol converter
FTC470XET (BMS <==> Ethernet/TCP/IP) are required.
Remote setting is, for example, possible for:
Response value Alarm 1 (1 kΩ...10 MΩ)
 
Response value Alarm 2 (1 kΩ...10 MΩ)
 
Operating principle alarm relay K1 (e.g. N/O operation)
 
Operating principle alarm relay K2 (e.g. N/O operation)
 
Measuring principle (AMP or DC)
 
Current output ranges for external measuring instruments (0/4...20
 
mA)
Maximum system leakage capacitance (150 µF or 500 µF)
 
Time for repetition of the automatic self test (off/ 1 h/ 24 h)
 
Starting time of the automatic self test (0.00...23.00 h)
 
Language of the alarm messages to be displayed (D, GB)
 
Setting the fault memory to ON or OFF
 
EDS mode (on, off, auto, 1 cycle), start and stop conditions for the EDS
 
systems
EDS type of system (DC, AC, 3 AC)
 
EDS max. test current (1 / 2.5 / 10 / 25 / 50 mA)
 
EDS Position Mode address (BMS address of the EDS47... to be
 
requested)
EDS Position Mode channel (BMS channel of the EDS47... to be
 
requested)
