Serial interfaces
7.3.4
Combination with EDS46... devices

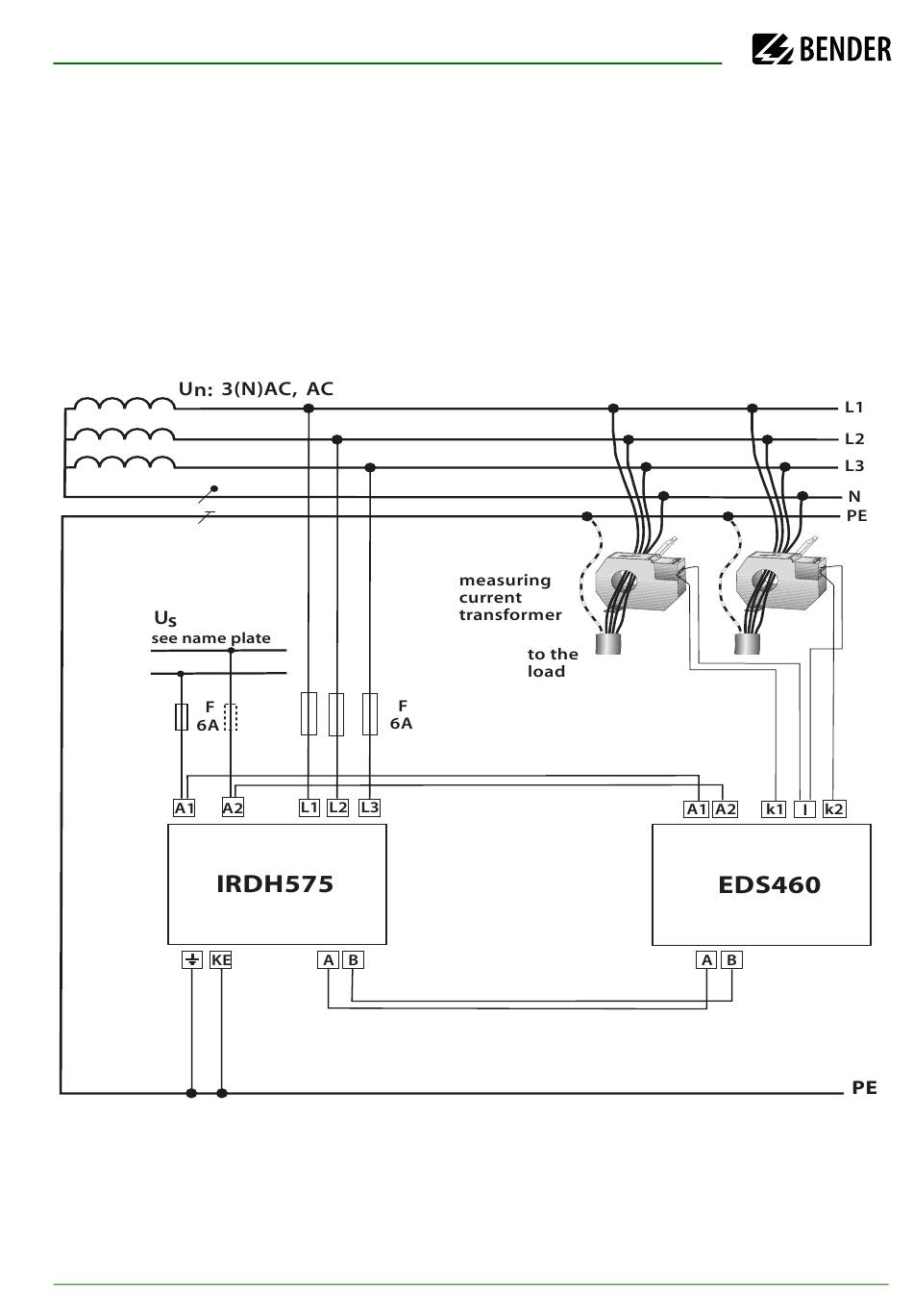

The following illustration shows an IRDH575 device in combination with
EDS46... and the measuring current transformers W...for insulation fault lo-
cation.The factory setting of the devices can usually be maintained. If several
EDS46... are used, the addresses within the range 2 to 30 in subsequent order
must be used. For details about the EDS settings refer to EDS SETUP and
EDS460/490 on page 58 respectively page 70.
86
IRDH575_D00089_05_M_XXEN/01.2020
