Current output for external measuring instruments

Factory setting: 0...20 mA
The current output of the IRDH575 can be set to "0...20 mA" or "4...20 mA" via
the menu point "M+/M-:". The maximum load is 500 Ω.

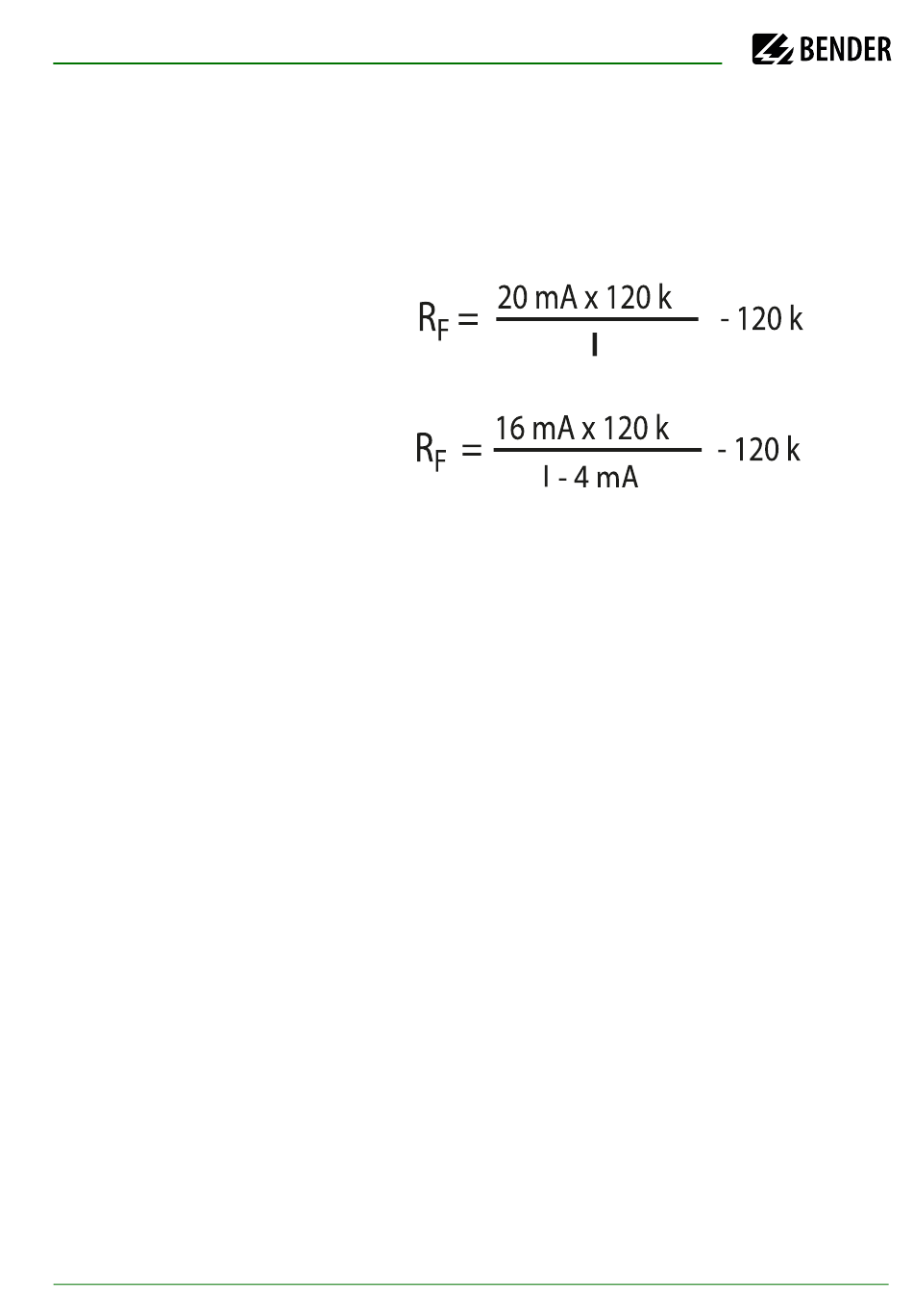

Function 0...20 mA:
= insulation fault,
R
F
I = current in mA
Function 4...20 mA:
= insulation fault,
R
F
I = current in mA
The associated characteristic curves are illustrated on page 98.
