Technical data IRDH575
Maximum system leakage capacitances for the insulation fault lo-
cation system EDS470

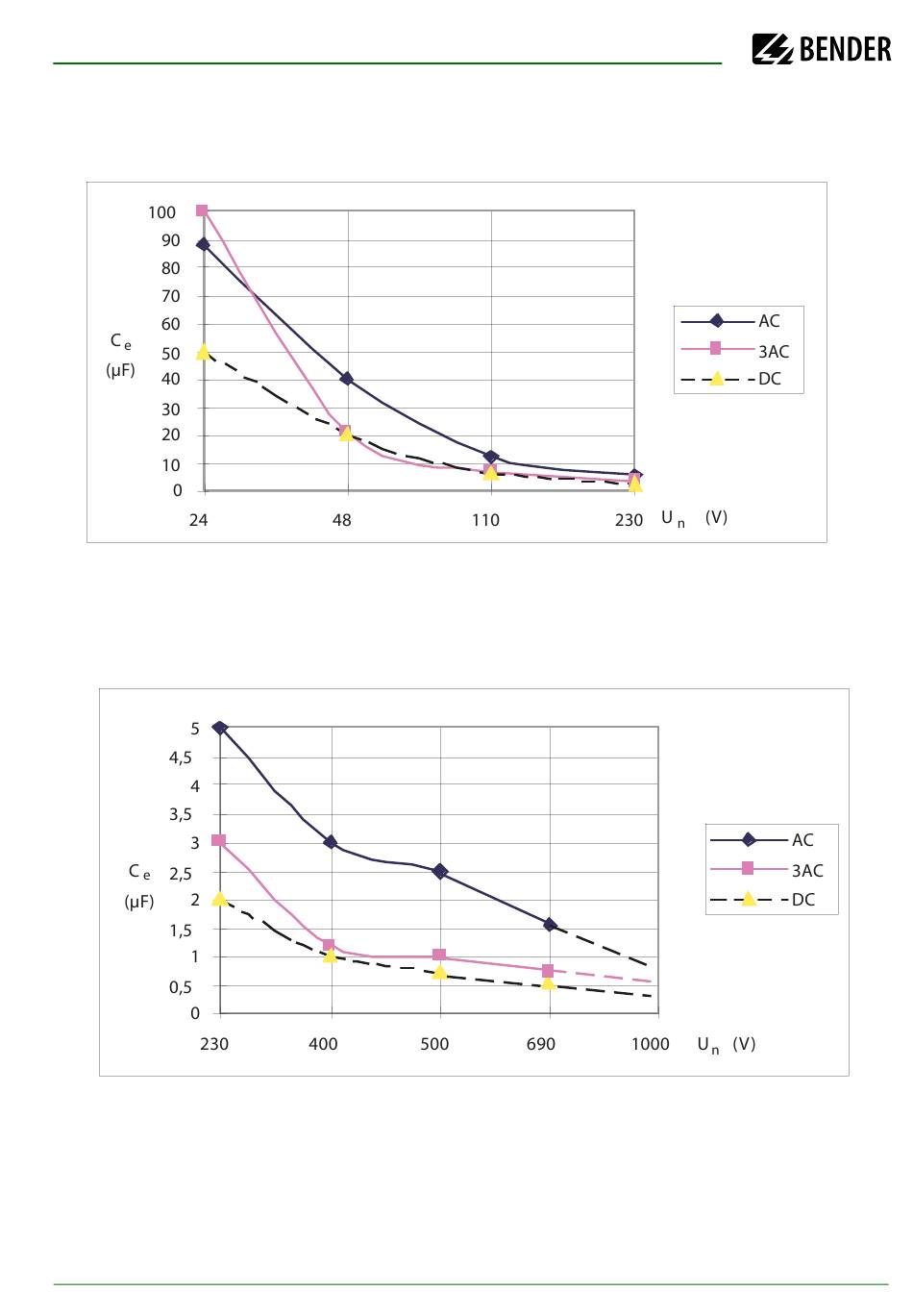

Curve 2a:
Maximum allowable system leakage capacitance in relation to the system vol-
tage to be monitored. Up to this limiting value of the system leakage capaci-
tance, the EDS system has the sensitivity illustrated in curve 1a.
Curve 2b:
Maximum allowable system leakage capacitance in relation to the system vol-
tage to be monitored. Up to this limiting value of the system leakage capaci-
tance, the EDS470 system has the sensitivity shown in curve 1b.
104
IRDH575_D00089_05_M_XXEN/01.2020
