Operation and setting
6.1.1

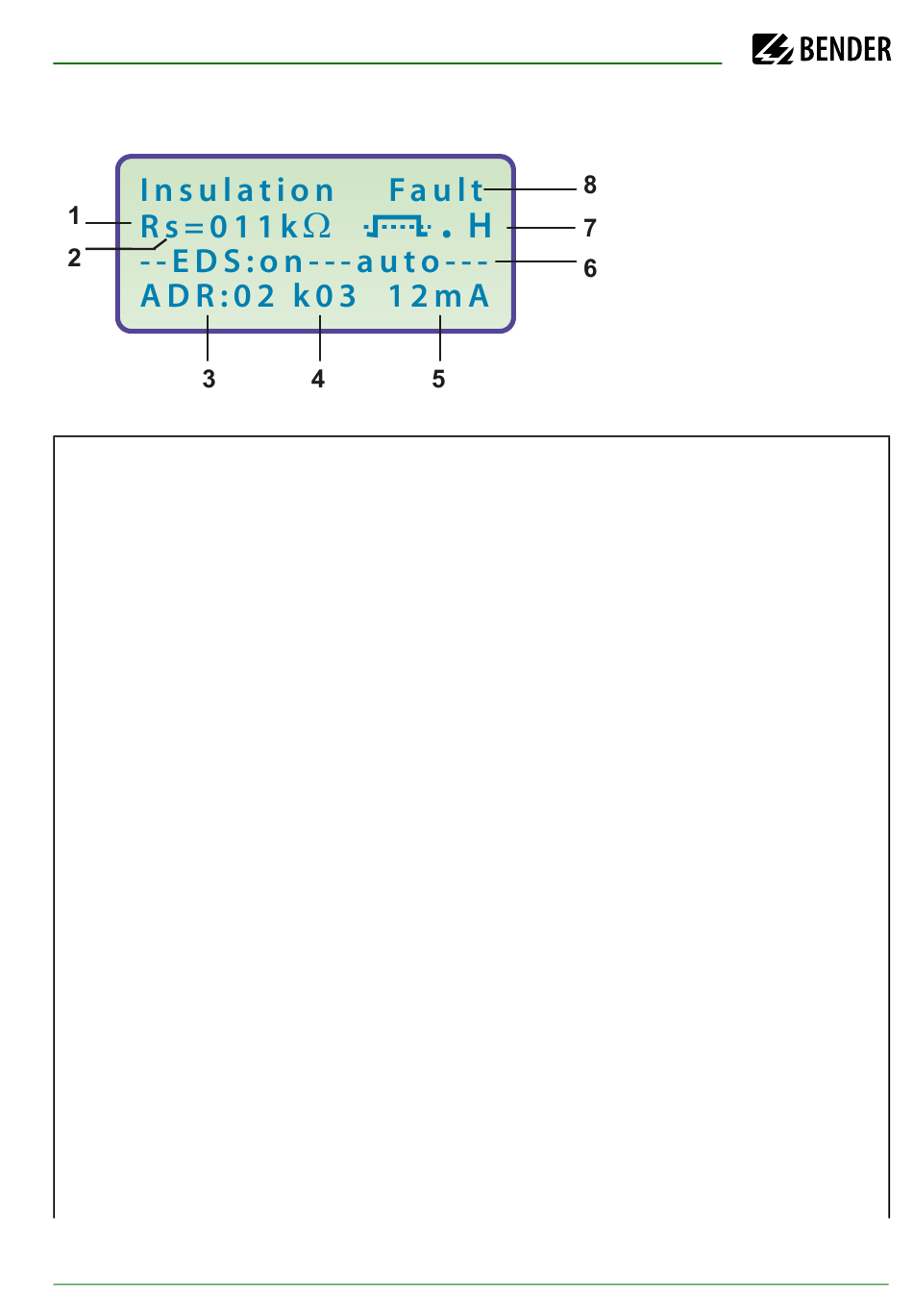

Display in case of active EDS and detected fault

Insulation resistance is indicated in kΩ
1
Additional information about the insulation resistance:
2
„+": insulation fault at L+
„–": insulation fault at L–
„s": new measurement has started
Bus address of the active EDS4... (indication in case of fault detec-
3
tion)
Channel being monitored by the EDS4... (indication in case of fault
4
detection)
Test current in mA or µA (indication in case of fault detection) or
5
short = measuring input short-circuited
noCT = no CT connected
-on---auto: EDS is in the AUTO mode and just running. Further modes
6
are:
- on: EDS is activated
- off: EDS is deactivated
- pos470 : Addr. and channel of the EDS have to be selected
(in the Master mode only), EDS47... only
- 1cycle : after testing all the channels, once the EDS is deactivated
