Serial interfaces

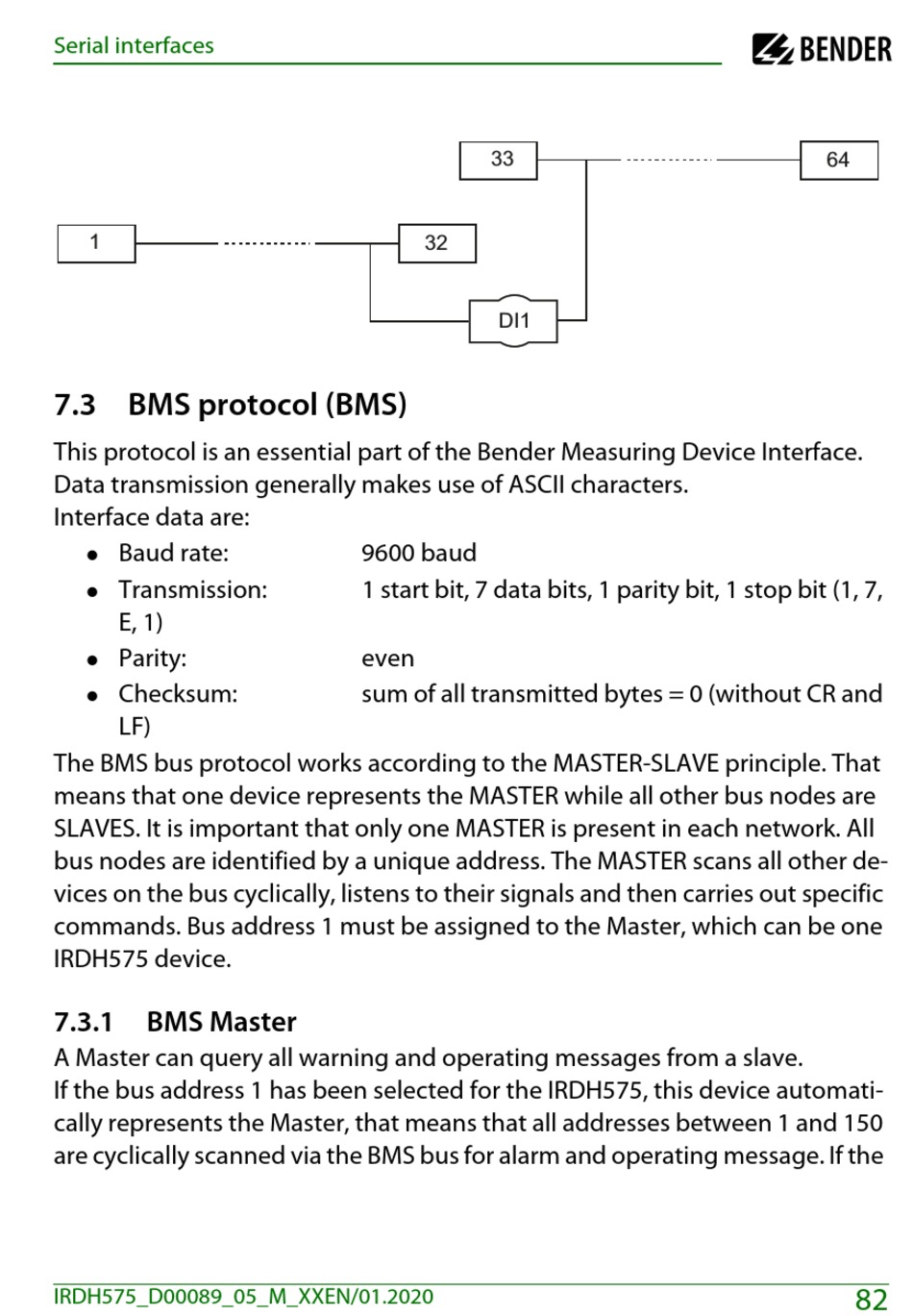

7.3 BMS protocol (BMS)

This protocol is an essential part of the Bender Measuring Device Interface.
Data transmission generally makes use of ASCII characters.
Interface data are:
Baud rate:
 
Transmission:
 
E, 1)
Parity:
 
Checksum:
 
LF)
The BMS bus protocol works according to the MASTER-SLAVE principle. That
means that one device represents the MASTER while all other bus nodes are
SLAVES. It is important that only one MASTER is present in each network. All
bus nodes are identified by a unique address. The MASTER scans all other de-
vices on the bus cyclically, listens to their signals and then carries out specific
commands. Bus address 1 must be assigned to the Master, which can be one
IRDH575 device.
7.3.1

BMS Master

A Master can query all warning and operating messages from a slave.
If the bus address 1 has been selected for the IRDH575, this device automati-
cally represents the Master, that means that all addresses between 1 and 150
are cyclically scanned via the BMS bus for alarm and operating message. If the
IRDH575_D00089_05_M_XXEN/01.2020
9600 baud
1 start bit, 7 data bits, 1 parity bit, 1 stop bit (1, 7,
even
sum of all transmitted bytes = 0 (without CR and
