Technical data IRDH575

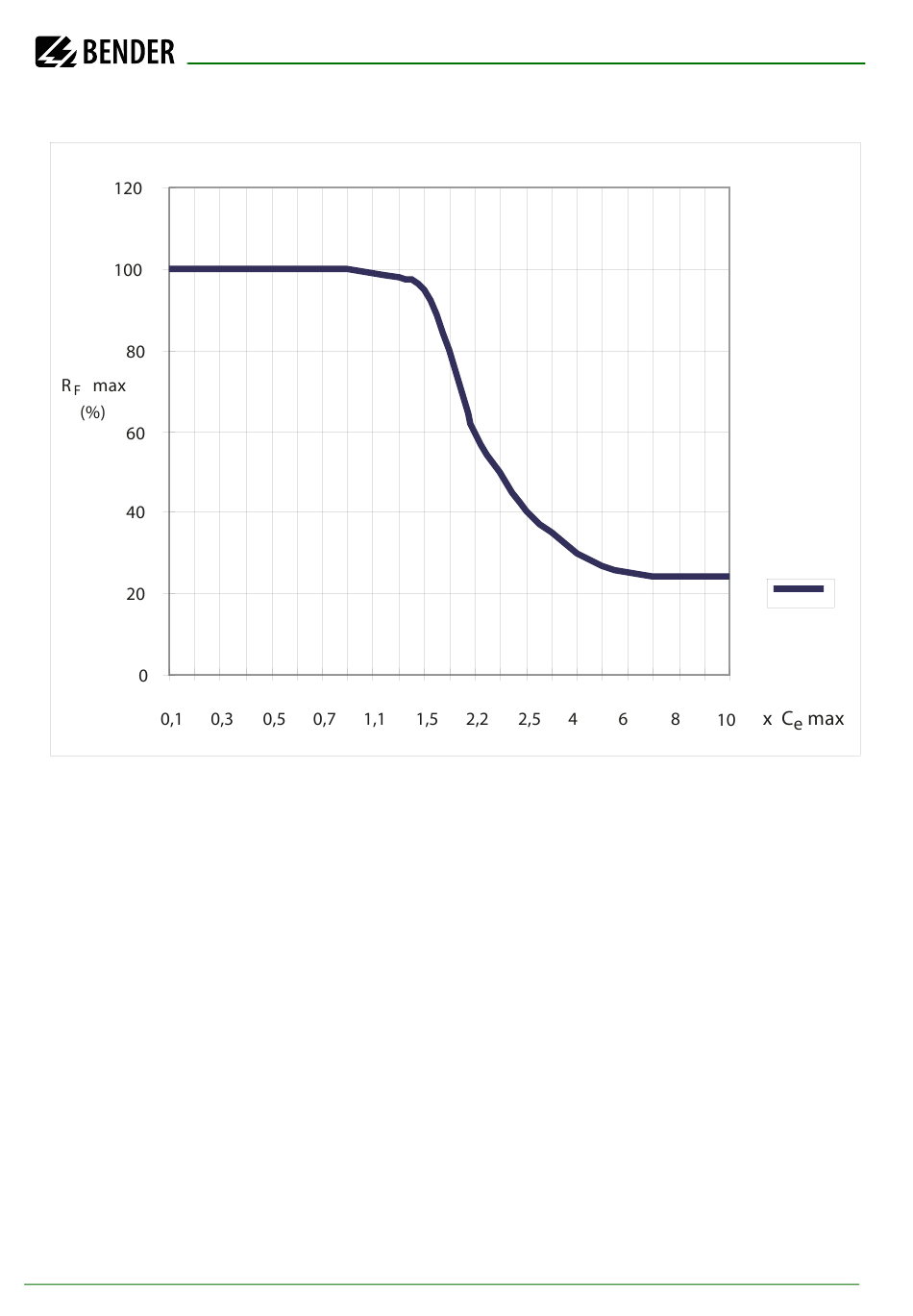

Curve 3:
A reduction of the response sensitivity at system leakage capacitances greater
than the maximum permissible value of C taken from the curves 2a and 2b.
e
The indication of the test current on the IRDH575 display in case of high sys-
tem leakage capacitance also changes.
When considering the curves, a point to be taken into account is that the sum
of the pre-capacitances upstream the measuring current transformer must
amount to at least 50 % of the total capacitance. Otherwise it may result in
wrong alarm messages.
A value of 20 000µFV/400 V = 50µF is taken for the system leakage capaci-
tance. Exceeding the limiting value may result in false trippings.
