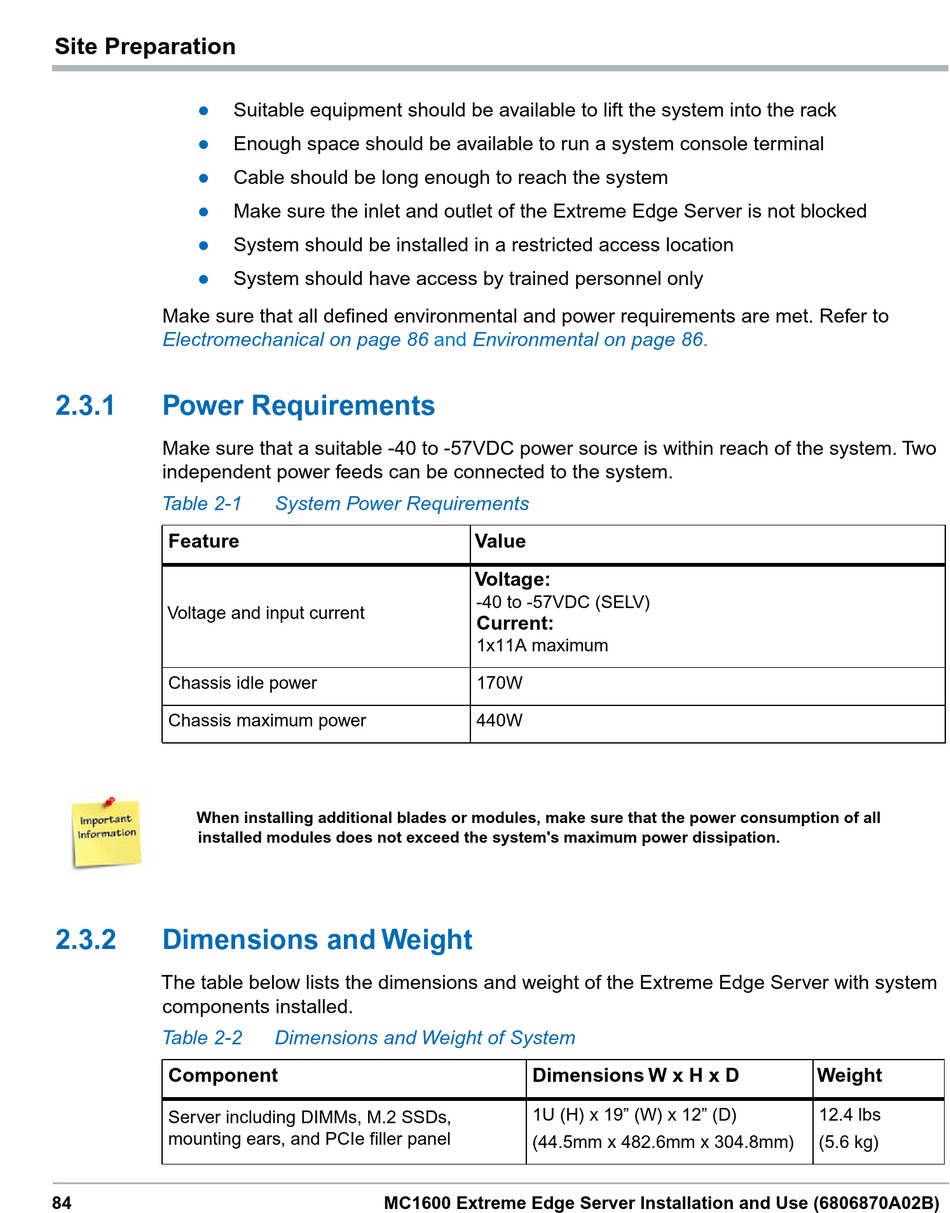

Site Preparation
 Suitable equipment should be available to lift the system into the rack

Enough space should be available to run a system console terminal
 Cable should be long enough to reach the system
 Make sure the inlet and outlet of the Extreme Edge Server is not blocked
 System should be installed in a restricted access location
 System should have access by trained personnel only
Make sure that all defined environmental and power requirements are met. Refer to
Electromechanical on page 86
2.3.1

Power Requirements

Make sure that a suitable -40 to -57VDC power source is within reach of the system. Two
independent power feeds can be connected to the system.
Table 2-1
Feature
Voltage and input current
Chassis idle power
Chassis maximum power
When installing additional blades or modules, make sure that the power consumption of all
installed modules does not exceed the system's maximum power dissipation.
2.3.2

Dimensions and Weight

The table below lists the dimensions and weight of the Extreme Edge Server with system
components installed.
Table 2-2
Component
Server including DIMMs, M.2 SSDs,
mounting ears, and PCIe filler panel
84
and
System Power Requirements
Dimensions and Weight of System
MC1600 Extreme Edge Server Installation and Use (6806870A02B)
Environmental on page
Value
Voltage:
-40 to -57VDC (SELV)
Current:
1x11A maximum
170W
440W
Dimensions W x H x D
1U (H) x 19" (W) x 12" (D)
(44.5mm x 482.6mm x 304.8mm)
Site Preparation
86.
Weight
12.4 lbs
(5.6 kg)
