System Overview
1.12

Baseboard Management Controller (BMC)

The Extreme Edge Server includes a Baseboard Management Controller (BMC) to perform
system management functions. The device used as the BMC is a highly-integrated SoC
management processor. A block diagram of the BMC subsystem is shown next.

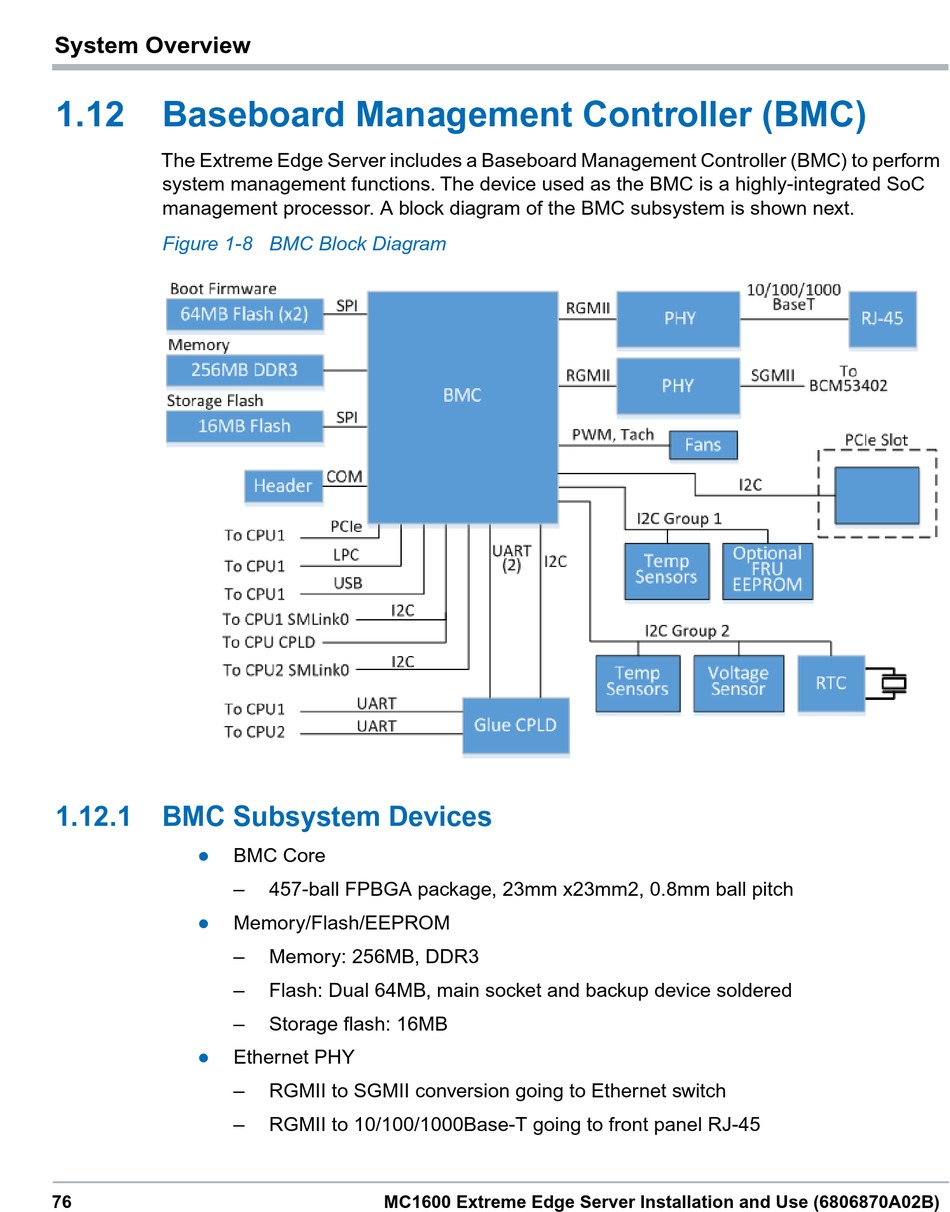

Figure 1-8 BMC Block Diagram

1.12.1

BMC Subsystem Devices

 BMC Core
–

Memory/Flash/EEPROM
–
–
–
 Ethernet PHY
–
–
76
457-ball FPBGA package, 23mm x23mm2, 0.8mm ball pitch
Memory: 256MB, DDR3
Flash: Dual 64MB, main socket and backup device soldered
Storage flash: 16MB
RGMII to SGMII conversion going to Ethernet switch
RGMII to 10/100/1000Base-T going to front panel RJ-45
MC1600 Extreme Edge Server Installation and Use (6806870A02B)
System Overview
