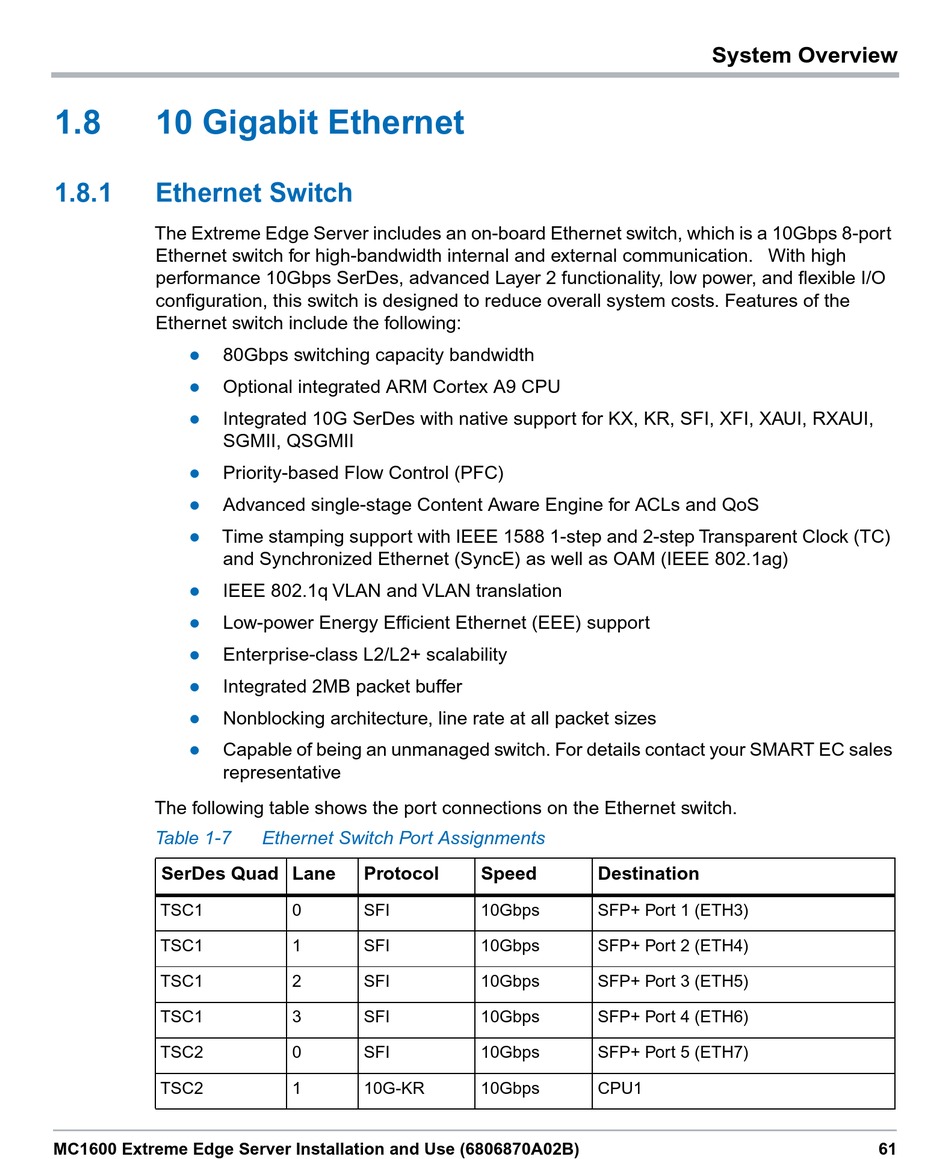

1.8

10 Gigabit Ethernet

1.8.1

Ethernet Switch

The Extreme Edge Server includes an on-board Ethernet switch, which is a 10Gbps 8-port
Ethernet switch for high-bandwidth internal and external communication. With high
performance 10Gbps SerDes, advanced Layer 2 functionality, low power, and flexible I/O
configuration, this switch is designed to reduce overall system costs. Features of the
Ethernet switch include the following:
 80Gbps switching capacity bandwidth
 Optional integrated ARM Cortex A9 CPU
 Integrated 10G SerDes with native support for KX, KR, SFI, XFI, XAUI, RXAUI,
SGMII, QSGMII
 Priority-based Flow Control (PFC)
 Advanced single-stage Content Aware Engine for ACLs and QoS
 Time stamping support with IEEE 1588 1-step and 2-step Transparent Clock (TC)
and Synchronized Ethernet (SyncE) as well as OAM (IEEE 802.1ag)
 IEEE 802.1q VLAN and VLAN translation
 Low-power Energy Efficient Ethernet (EEE) support
 Enterprise-class L2/L2+ scalability
 Integrated 2MB packet buffer

Nonblocking architecture, line rate at all packet sizes
 Capable of being an unmanaged switch. For details contact your SMART EC sales
representative
The following table shows the port connections on the Ethernet switch.
Table 1-7
SerDes Quad Lane
TSC1
TSC1
TSC1
TSC1
TSC2
TSC2
MC1600 Extreme Edge Server Installation and Use (6806870A02B)
Ethernet Switch Port Assignments
Protocol
0 SFI
1 SFI
2 SFI
3 SFI
0 SFI
1 10G-KR
Speed Destination
10Gbps SFP+ Port 1 (ETH3)
10Gbps SFP+ Port 2 (ETH4)
10Gbps SFP+ Port 3 (ETH5)
10Gbps SFP+ Port 4 (ETH6)
10Gbps SFP+ Port 5 (ETH7)
10Gbps CPU1
