Software Configuration

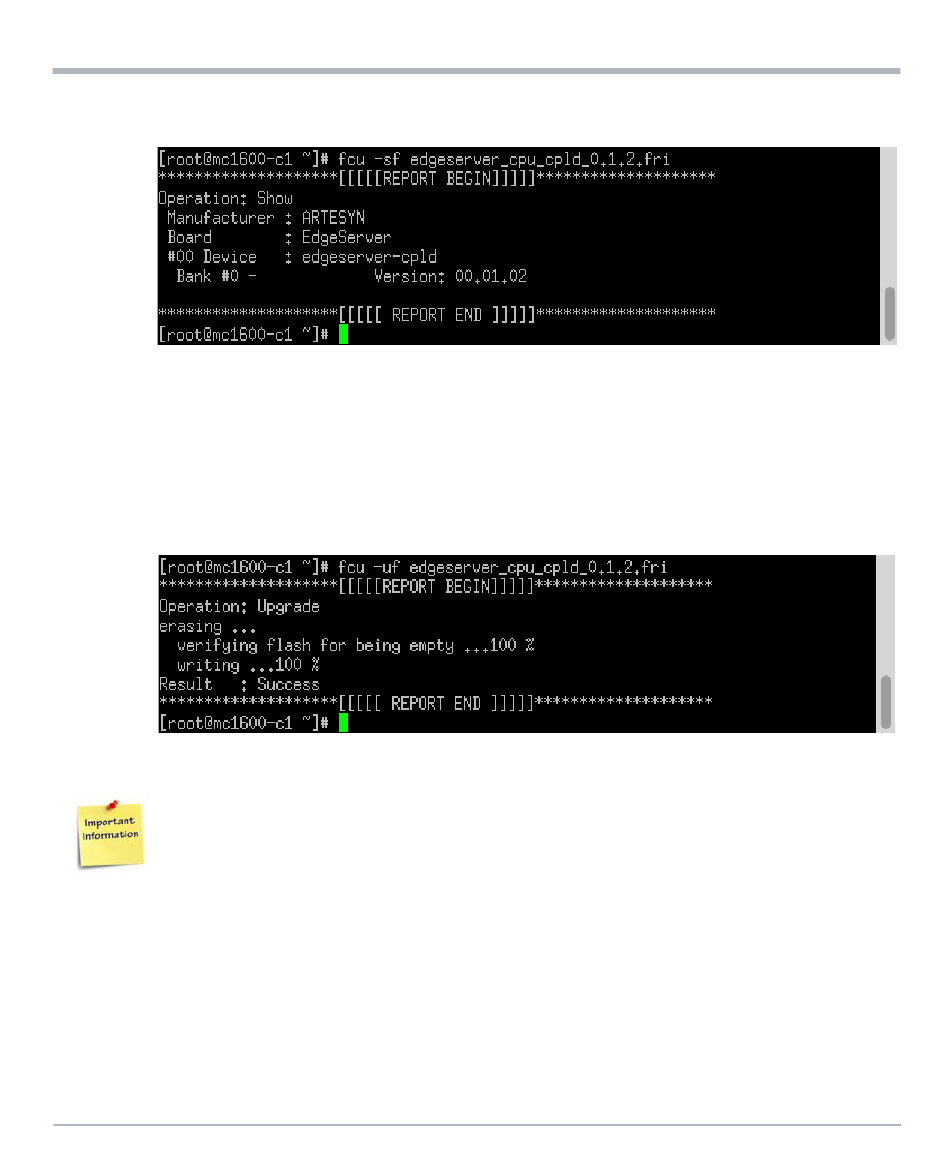

Show contents of CPLD firmware image:
Upgrade Operation
To upgrade CPLD, use the following command:
$ fcu –uf <CPLD image>.fri
Here, <CPLD image>.fri is the firmware file to which CPLD will be upgraded.
The following screen shows a typical output when the above command is executed.
For the newly upgraded CPLD image to be active, you need to power cycle the
system.
After the system boots to Linux, to confirm the CPLD upgrade, execute the fcu –q
command.
5.2.1.3

Broadcom Switch

The MC1600 contains a Broadcom BCM53402 8-port Ethernet switch. Each port supports
10GbE. The eight ports are connected as follows:
1 - Front panel SFP+, labeled ETH3 (BCM port xe0)
