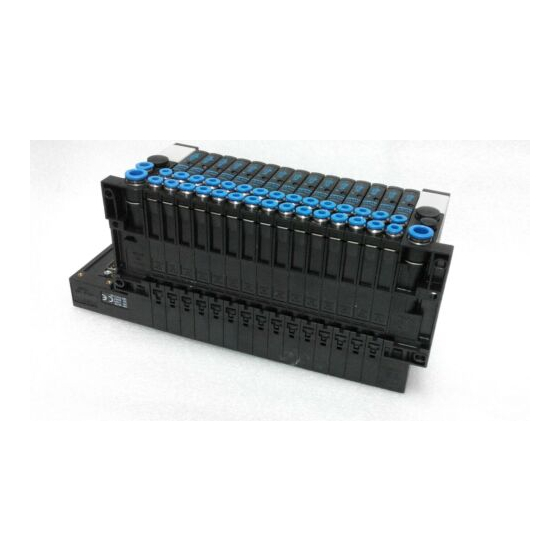

Compact performance
CPA pneumatics
manual
Valve terminal with
CPA pneumatics
Type CPA..-VI
Manual
173 515
en 0207c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPA VI Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Festo CPA VI Series

Summary of Contents for Festo CPA VI Series

  • Page 1 Compact performance CPA pneumatics manual Valve terminal with CPA pneumatics Type CPA..-VI Manual 173 515 en 0207c...
  • Page 3 ....... . . 173 515 ® AS-Interface is a registered trademark of AS-Interface Association E (Festo AG & Co., D-73726 Esslingen, Federal Republic of Germany, 2002) Internet: http://www.festo.com e-mail: service_international@festo.com The copying, distribution and utilization of this document as well as the communication of its contents to others without ex- pressed authorization is prohibited.
  • Page 4 Contents and general instructions Festo P.BE-CPA-EN en 0207c...

  • Page 5: Table Of Contents

    Address assignment of the valves ........3-24 Festo P.BE-CPA-EN en 0207c...
  • Page 6 ............Festo P.BE-CPA-EN en 0207c...

  • Page 7: Designated Use

    National and local safety regulations must also be observed. Target group This manual is directed exclusively at technicians trained in control and automation technology. Service Please consult your local Festo service centre if you have any technical problems. Festo P.BE-CPA-EN en 0207c...

  • Page 8: Notes On This Manual

    CPA valve terminal with CPX terminal, type CPA.. Information on the electric/electronic components: see manual “CPX system, installation and commis- sioning” Tab. 0/1: CPA valve terminal with CPX terminal Festo P.BE-CPA-EN en 0207c...
  • Page 9 Information on the electric/electronic components: see manual “CP system, installation and commissioning” With AS-Interface connection; type CPA..-IFB-ASI or CPA..-IFB-ASI-Z Information on the electric/electronic components: see leaflet with product Tab. 0/2: Connection variants of the CPA valve terminal Festo P.BE-CPA-EN en 0207c...
  • Page 10 CPX-... as well as type CPA and Midi/ Maxi pneumatic interfaces Tab. 0/3: Manuals on the CPA valve terminal with CPX terminal VIII Festo P.BE-CPA-EN en 0207c...
  • Page 11 Information on fitting, Information on fitting, commissioning, installing and commis- installing and com- programming and sioning CPA or CPV missioning CP diagnosing related valve terminals I/O modules to the node used Tab. 0/4: Manuals on the CP system Festo P.BE-CPA-EN en 0207c...
  • Page 12 Fig. 0/1: Main components of the CPA valve terminal This manual contains the documentation for the valve sub- bases with Ident. codes B, E, G, H, J, K, M and N (see chapter “System overview, description of components”). Festo P.BE-CPA-EN en 0207c...

  • Page 13: Important User Instructions

    This means that failure to observe this instruction may result in damage to property. The following pictogram marks passages in the text which describe activities with electrostatically sensitive compo- nents. Electrostatically sensitive components may be damaged if they are not handled correctly. Festo P.BE-CPA-EN en 0207c...
  • Page 14 Accessories: Information on necessary or sensible accessories for the Festo product. Environment: Information on environment-friendly use of Festo products. Text markings The bullet indicates activities which may be carried out in • any order. 1. Figures denote activities which must be carried out in the numerical order specified.
  • Page 15 CP modules. CPA valve terminal with CPA valve terminal variant on which every valve solenoid coil can be individual connection connected individually with a special cable. (IC connection) XIII Festo P.BE-CPA-EN en 0207c...
  • Page 16 Pneumatic manifold sub-base with open or closed compressed air channel for single-solenoid, double-solenoid or mid-position valves with work connections 2 and 4. Valve sub-base Plate with single-solenoid, double-solenoid or mid-position valve. Tab. 0/5: Product-specific terms and abbreviations Festo P.BE-CPA-EN en 0207c...

  • Page 17: System Summary

    System summary Chapter 1 Festo P.BE-CPA-EN en 0207c...
  • Page 18 ........Festo P.BE-CPA-EN en 0207c...
  • Page 19 – the connecting, display and operating elements. Further information Information on the electric multipin can be found in the brief description of the CPA valve terminal with multipin connection. Festo P.BE-CPA-EN en 0207c...

  • Page 20: Overview Of Variants

    1. System summary Overview of variants Festo assists you in solving your automation tasks at machine level with CPA valve terminals. The modular structure of the CPA valve terminal for the CP system enables you to use the CPA valve terminals optimally in your machine or system.
  • Page 21 This CPA valve terminal is available with 2 to max. 22 valve with IC connection locations. The electrical connection of the valve solenoid coils is made via individual connector plugs. Maximum 44 valve coils can be actuated. Festo P.BE-CPA-EN en 0207c...
  • Page 22 All CPA valve terminal variants are available with micro terminal valves (valve width 10 mm, CPA10) or with mini valves (valve width 14 mm, CPA14). Mixed operation with valves of both sizes in not possible on a CPA valve terminal. Festo P.BE-CPA-EN en 0207c...

  • Page 23: Description Of Components

    CPX adapter for fitting the CPX (manifold block EV1 occupies pneumatic interface 1 address, EV2 occupies 2 addresses) CPA valve terminals for the CPX terminal: CPX pneumatic interface Fig. 1/3: Electrical components of the CPA valve terminal Festo P.BE-CPA-EN en 0207c...
  • Page 24 Right-hand end plate with supply exhaust connections and exhaust connections CPX adapter for fitting the CPX Additional supply plate or blanking pneumatic interface plate Valve sub-base with single-solenoid or double-solenoid valves Fig. 1/4: Pneumatic components of the CPA valve terminal Festo P.BE-CPA-EN en 0207c...
  • Page 25 *) In the case of CPA valve terminals with IC connection, the maximum number of valve locations is limited to 22 due to the tie rod. Tab. 1/1: Maximum number of valve locations depending on the CPA valve terminal variants Festo P.BE-CPA-EN en 0207c...
  • Page 26 Sub-base for pressure zone separation, compressed air channel (1) blocked Valve sub-base, 5/2-way, single-solenoid on two-coil valve location Tab. 1/2: Ident. code of the pneumatic components Further information on the valve sub-bases can be found in Appendix A. 1-10 Festo P.BE-CPA-EN en 0207c...
  • Page 27 Supply connections (1, 12/14) and exhaust connections (3/5) on the right-hand end plate Work connections (2, 4) per valve sub-base Supply connection (1) and exhaust connections (3/5, 82/84) on the left-hand end plate Fig. 1/5: Pneumatic connecting and operating elements of the CPA valve terminal 1-11 Festo P.BE-CPA-EN en 0207c...
  • Page 28 Yellow LED per cable socket, shows signal status of the pilot solenoids Terminal lugs of pilot solenoid coil 12 Terminal lugs of pilot solenoid coil 14 Fig. 1/6: Electrical connecting and display elements of the CPA valve terminal with IC connection 1-12 Festo P.BE-CPA-EN en 0207c...
  • Page 29 CPA valve terminal with MP connection: Identification clips Yellow LED, signal status displays of the pilot solenoids Sub-D multipin plug (25-pin) Fig. 1/7: Electrical connecting and display elements of the CPA valve terminal with MP connection 1-13 Festo P.BE-CPA-EN en 0207c...
  • Page 30 Green LED, status display of the CP connection Incoming CP cable Yellow LED, signal status display of the pilot solenoids Continuing CP cable Earth/ground connection Identification clips Fig. 1/8: Electrical connecting and display elements of the CPA valve terminal with CP connection 1-14 Festo P.BE-CPA-EN en 0207c...
  • Page 31 Earth/ground connection Green LED, status display of the CP connection Cable socket for additional supply with black additional supply cable (optional) Fig. 1/9: Electrical connecting and display elements of the CPA valve terminal with AS-Interface connection 1-15 Festo P.BE-CPA-EN en 0207c...
  • Page 32 Fig. 1/10: Electrical connecting and display elements of the CPA valve terminal with CPX terminal Detailed instructions on the CPX pneumatic interface can be found in the supplementary manual for the CPX I/O modules (P.BE-CPX-EA-..). 1-16 Festo P.BE-CPA-EN en 0207c...

  • Page 33: Fitting

    Fitting Chapter 2 Festo P.BE-CPA-EN en 0207c...
  • Page 34 ......... . . Festo P.BE-CPA-EN en 0207c...

  • Page 35: Fitting

    Information on fitting and dismantling the module elec- tronics and sub-bases can be found in the manual “CPX I/O modules” and in the leaflet supplied with the product in the case of modules and components ordered at a later stage. Festo P.BE-CPA-EN en 0207c...

  • Page 36: Fitting Variants

    – 0.15 mm path at 10...58 Hz – 2 g acceleration at 58...150 Hz. This can cause damage to the CPA valve terminal or to your machine or system. Use the wall fitting for CPA14 valve terminals. • Festo P.BE-CPA-EN en 0207c...

  • Page 37: Fitting Onto A Wall

    23 mm 26 mm 10.6 mm x number of sub-bases 14.6 mm x number of sub-bases 4 holes for fitting onto a wall 4 holes for fitting onto a wall Fig. 2/1: Position of the fastening holes Festo P.BE-CPA-EN en 0207c...

  • Page 38: Hat Rail Fitting

    6. Swing the CPA valve terminal onto the hat rail (see arrow B). Make sure that the clamping element lies horizontally to the hat rail. 7. Fasten the CPA valve terminal against tilting or sliding by tightening the locking screws on both sides with 1.3 Nm. Festo P.BE-CPA-EN en 0207c...
  • Page 39 2. Fitting Hat rail Self-cutting M4x10 screw of the hat rail clamping unit Clamping element of the hat rail clamping unit Fig. 2/2: Fitting the CPA valve terminal onto a hat rail Festo P.BE-CPA-EN en 0207c...
  • Page 40 2. Fitting Festo P.BE-CPA-EN en 0207c...

  • Page 41: Installation

    Installation Chapter 3 Festo P.BE-CPA-EN en 0207c...
  • Page 42 Address assignment of the valves ........3-24 Festo P.BE-CPA-EN en 0207c...

  • Page 43: Installation

    Information on connecting the CPA valve terminal with CP connection can be found in the CP system manual. Information on connecting the CPA valve terminal with CPX terminal can be found in the CP system manual. Festo P.BE-CPA-EN en 0207c...

  • Page 44: Preparing The Compressed Air

    (see ISO 8573-1 class 4). You will thereby avoid functional damage of the valves. Excessive residual oil cannot be permitted irrespective of the compressor oil, as otherwise the basic lubrication will be washed out during the course of time. Festo P.BE-CPA-EN en 0207c...

  • Page 45: Operation With Lubricated Compressed Air

    Incorrect additional oil and too much residual oil content in the compressed air will reduce the service life of the valve terminal. – Use Festo special oil OFSW-32 or the other oils listed in the Festo catalogue (as per DIN51524-HLP32, basic viscosity 32cST at 40 °C).
  • Page 46 A further indication of excessive lubrication is the colouring or status of the exhaust silencer. A distinctly yellow colouring of the filter element or drops of oil on the silencer indicate that the lubricator setting is too high. Festo P.BE-CPA-EN en 0207c...

  • Page 47: General Connecting Methods

    – unexpected movements of the connected actuators, – non-defined switching states of the electronic compo- nents. 3.2.1 Laying the tubing If elbow screw connectors or multiple distributors are used, the airflow will be reduced slightly. Festo P.BE-CPA-EN en 0207c...

  • Page 48: Basic Information

    1. Press down the blue locking ring (A) of the screw con- nector. 2. Pull out tubing (B). 3. Seal unused connections with blind plugs or threaded blind plugs (C). Pin-type insert Connecting Pin-type adapter (with threaded connection) QS screw connector Removing Fig. 3/1: Tubing variants Festo P.BE-CPA-EN en 0207c...

  • Page 49: Connecting The Cpa Valve Terminal

    You can ascertain the auxiliary pilot air variant for which your CPA valve terminal is equipped by the type designation on the right-hand end plate (see table). Festo P.BE-CPA-EN en 0207c...
  • Page 50 If the CPA valve terminal with internal pilot air is used, the centre connection must be fitted with a blind plug (see dia- gram). Seal connection with a blind plug Fig. 3/2: Internal pilot air 3-10 Festo P.BE-CPA-EN en 0207c...
  • Page 51 (see diagrams). Control pressure 12/14 (bar) Work pressure P1 (bar) Start-up pressure Fig. 3/3: External pilot air diagram for valve sub-bases CPA10 with Ident. codes N, K, H 3-11 Festo P.BE-CPA-EN en 0207c...

  • Page 52: Cpa Valve Terminal With Pressure Zone Separation

    Electrical connection IC, MP or AS-Interface variants Pressure zones 1...12 1...9 1...3 Tab. 3/2: Maximum number of pressure zones The pressure zones are implemented by means of special sub-bases which block the compressed air channel (1). 3-12 Festo P.BE-CPA-EN en 0207c...
  • Page 53 (see diagram). As an additional aid to remove the exhaust air, a silencer can be fitted at connection 4 on these sub-bases. If connection 4 is not used, it must be sealed with a blind plug. 3-13 Festo P.BE-CPA-EN en 0207c...

  • Page 54: Connecting The Supply, Exhaust And Work Lines

    Pressure zone 3 (compressed air supply via connection 1 on the right-hand end plate) Fig. 3/5: Example: Pressure zone separation and external pilot air 3.3.3 Connecting the supply, exhaust and work lines Fit the tubing as described below. Then lay the pneumatic tubing. 3-14 Festo P.BE-CPA-EN en 0207c...
  • Page 55 Threaded connection: 12/14 or CPA10-PTA-M5 CPA14-PTA-1/8 82/84 CPA10-PTA-M7 CPA14-PTA-1/8NPT CPA10-PTA-10-32-UNF With threaded Blind screw: Blind screw: connection B-M5-B B-1/8 not 12/14 or B-M7 (only connection 2/4) (B-M5-B) 82/84 Silencer: B-1/8N UC-QS-6H UC-QS-..H Tab. 3/3: Pin-type inserts 3-15 Festo P.BE-CPA-EN en 0207c...
  • Page 56 3. Installation 2. Check that the seal of the pin-type is greased. If necess- ary, grease the seal with Festo F2 grease. 3. Press the pin type inserts into the holes in the sub-base. 4. Make sure that the pin-type inserts are seated as far as possible in the holes.
  • Page 57 Clamping springs Pin-type inserts Fig. 3/7: Fitting and removing the pin-type inserts 6. In the case of pin type inserts with threaded connection, screw in the connectors. 7. Fit the tubing as shown in Fig. 3/1. 3-17 Festo P.BE-CPA-EN en 0207c...
  • Page 58 In the case of CPA valve terminals with two or more pres- sure zones and auxiliary pilot air branched internally on the right-hand side, the pressure for the pressure zone on the outside right must be 3...8 bar. 3-18 Festo P.BE-CPA-EN en 0207c...
  • Page 59 H) cannot be used for vacuum or low-pressure operation. If your CPA valve terminal is fitted with these valve sub- bases, a separate pressure zone must be provided for these valves (supply pressure see Fig. 3/3 for CPA10 or Fig. 3/4 for CPA14). 3-19 Festo P.BE-CPA-EN en 0207c...

  • Page 60: Connecting The Electric Cables

    By the use of PELV power units, protection against electric shock (protection against direct and indirect contact) is guar- anteed with the Festo valve terminals in accordance with EN 60204-1/IEC 204. Safety transformers with the adjacent symbol must be used for supplying PELV networks. The valve terminals must be earthed to ensure that they function cor- rectly (e.g.
  • Page 61 Earth/ground connection Fig. 3/9: of the CPA valve terminal with CP connection CPA valve terminal with IC connection With this variant of the CPA valve terminal each valve solenoid coil is connected separately. 3-21 Festo P.BE-CPA-EN en 0207c...
  • Page 62 3. Installation Use the ready-to-use connector socket KMYZ-7-24-...-LED from Festo for connecting the valve solenoid coils. The hold- ing current reduction for the valve solenoid coil and an LED are incorporated in the transparent plug of this connector socket. The LED indicates the switching status of the valve solenoid coils.
  • Page 63 3. Installation Connector socket Terminal lug of valve solenoid Fig. 3/10: Fitting the individual connector sockets 3-23 Festo P.BE-CPA-EN en 0207c...

  • Page 64: Address Assignment Of The Valves

    CPA valve terminal by means of the identification marking on the manifold block (see diagram). Fig. 3/11: Marking the manifold blocks – Counting begins from left to right, on the individual valve plates from the rear to the front (see diagram). 3-24 Festo P.BE-CPA-EN en 0207c...
  • Page 65 Fig. 3/12: Example: Address assignment of CPA valve terminal with MP connection and 8 valve locations (top view) CPA valve terminal with MP or AS-Interface connection Connecting the MP or AS-Interface cable Instructions on the electrical connections can be found in the leaflet supplied with the product. 3-25 Festo P.BE-CPA-EN en 0207c...
  • Page 66 Instructions on the electrical connections can be found in the manual “CP system, general installation and commissioning,” chapter 3. CPA valve terminal with CPX terminal Instructions on the electrical connections can be found in chapter 3 of the system manual. 3-26 Festo P.BE-CPA-EN en 0207c...

  • Page 67: Commissioning

    Commissioning Chapter 4 Festo P.BE-CPA-EN en 0207c...
  • Page 68 LED display of the valves ........4-17 Festo P.BE-CPA-EN en 0207c...

  • Page 69: Commissioning

    Further information Commissioning of the CP system is described in the appropri- ate manual for the CP node. Commissioning of the CPX terminal is described in the ap- propriate manual for the CPX field bus node. Festo P.BE-CPA-EN en 0207c...

  • Page 70: Testing The Valves

    Complete commissioning of the Installing and connecting complete system the complete system. Program control via PLC/ industrial PC. Tab. 4/1: Commissioning variants Commissioning the pneumatic components by means of the manual override is described below. Festo P.BE-CPA-EN en 0207c...

  • Page 71: Checking The Valve Functions

    By actuating the manual override, you can switch the valve without an electric signal. You only need to switch on the compressed air supply. Festo P.BE-CPA-EN en 0207c...
  • Page 72 Manual override covered No manual override function Tab. 4/2: Variants of the manual override The following manual override variants are available for CPA valve terminals with MP, CP, AS-Interface connection or CPX terminal: Festo P.BE-CPA-EN en 0207c...
  • Page 73 Fig. 4/1: Manual override variants of the CPA valve terminal with MP, CP, AS-Interface connection or CPX terminal Both the locking and the non-locking types of manual over- ride can be used with CPA valve terminals with IC connection. Festo P.BE-CPA-EN en 0207c...
  • Page 74 Locking or non-locking push button of the manual override to pilot solenoid 14 Locking or non-locking push button of the manual override to pilot solenoid 12 Fig. 4/2: Position of the manual override on CPA valve terminals with IC connection Festo P.BE-CPA-EN en 0207c...

  • Page 75: Checking The Valve-Cylinder Combination

    The slow increase in pressure of the complete supply does not then affect the cylinder. Depending on the valve function, the cylinder would extend or retract suddenly. Festo P.BE-CPA-EN en 0207c...
  • Page 76 Externally supplied auxiliary pilot air (3 to 8 bar), branched from the safety start-up valve Safety start-up valve (slow build up of pressure of complete supply) Fig. 4/3: Example of valve-cylinder combination with slow increase in pressure of the complete supply 4-10 Festo P.BE-CPA-EN en 0207c...
  • Page 77 3. In the case of the CPA valve terminal with locking manual override: After testing the valves, make sure that all man- ual override actuations are in their basic positions. 4. Switch off the compressed air supply after checking the valves. 4-11 Festo P.BE-CPA-EN en 0207c...
  • Page 78 – returns to basic The spring resets the plunger position of the manual override to the (not in the case starting position. of double-sole- noid valve type J) Tab. 4/4: Non-locking actuation of the manual override 4-12 Festo P.BE-CPA-EN en 0207c...
  • Page 79 14; with manual override 12 you can actuate the valve on control side 12 (see switching symbols of the valve sub-bases Appendix B). In this way you will avoid undefined switching states when commissioning the machine/system. 4-13 Festo P.BE-CPA-EN en 0207c...
  • Page 80 CPA valve terminal with type J) IC connection: Turn the plunger in an anti- • clockwise direction as far as possible. Then release the plunger. Tab. 4/5: Locking actuation of the manual override 4-14 Festo P.BE-CPA-EN en 0207c...

  • Page 81: Eliminating Faults

    (if necessary set as a – does not react – Basic position factor of the work pressure). Servicing required • Check the controller • (apply pressure>3 bar at controller) Tab. 4/6: Function impairment of the pneumatic system 4-15 Festo P.BE-CPA-EN en 0207c...
  • Page 82 CPA valve terminal. Slow start-up after If there are control signals, the auxi- EMERGENCY STOP liary pilot air must have a pressure of 3...8 bar. Tab. 4/7: Pneumatic operating states 4-16 Festo P.BE-CPA-EN en 0207c...

  • Page 83: Led Display Of The Valves

    14 LED and manual override for pilot solenoid 12 Fig. 4/4: Assignment of the LED for the manual override on CPA valve terminals with MP, CP, AS-Interface connection or CPX terminal 4-17 Festo P.BE-CPA-EN en 0207c...
  • Page 84 – compressed air supply not OK – pilot exhaust blocked – servicing required *) With double-solenoid valves (Ident code J) the LED lights up only when the signal is present. Tab. 4/8: Meaning of the LED display 4-18 Festo P.BE-CPA-EN en 0207c...

  • Page 85: Maintenance And Conversion

    Maintenance and conversion Chapter 5 Festo P.BE-CPA-EN en 0207c...
  • Page 86 Adding/removing valve locations ........5-25 Festo P.BE-CPA-EN en 0207c...

  • Page 87: Maintenance And Conversion

    Instructions on the electrical connections of the CPV valve terminal with multipin or AS-Interface connection can be found in the leaflet supplied with the product. Information on connecting the CPA valve terminal with CP connection can be found in the CP system manual. Festo P.BE-CPA-EN en 0207c...

  • Page 88: General Precautionary Measures

    • the power supply for the valve solenoid coils. • You can thereby avoid: – uncontrolled movements of loose tubing, – unexpected movements of the connected actuators, – non-defined switching states of the electronic compo- nents. Festo P.BE-CPA-EN en 0207c...

  • Page 89: Dismantling The Cpa Valve Terminal

    2. Loosen the locking screws on the connector plugs. 3. Pull the plugs carefully away from the terminal lugs. CPX terminal 1. Mark all electrical connection cables. 2. Loosen and remove these cables. Tab. 5/1: Removing electrical connections Festo P.BE-CPA-EN en 0207c...
  • Page 90 CPA valve terminal. 1. Mark all pneumatic tubing. 2. Press down the blue clamping ring of the pin type or screw connector. 3. Pull the pneumatic tubing away from the pin type or screw connector. Festo P.BE-CPA-EN en 0207c...
  • Page 91 – 2 screws on the CPX pneumatic interface – 2 screws on the left-hand end plate of the CPX terminal. Tab. 5/2: Removing the CPA valve terminal fitted onto a wall 3. Remove the CPA valve terminal from the fastening surface. Festo P.BE-CPA-EN en 0207c...
  • Page 92 3. Lift the CPA valve terminal off the hat rail (see diagram, arrow B). Hat rail Clamping element of the hat rail clamping unit Locking screw of the hat rail clamping unit Fig. 5/1: Dismantling the CPA valve terminal Festo P.BE-CPA-EN en 0207c...

  • Page 93: Replacing Cpa Valve Terminal Components

    1. Mark the valve sub-base to be removed with the valve solenoid coils to which the connector plug belongs. 2. Loosen the locking screws on the connector plugs of the valve sub-base to be replaced. 3. Pull the plugs carefully away from the terminal lugs. Festo P.BE-CPA-EN en 0207c...
  • Page 94 Fitting the components 1. Make sure the seal is not damaged. 2. Replace the seal if it is damaged. 3. Make sure that the seal is seated correctly. It must lie in the recess in the sub-base. 5-10 Festo P.BE-CPA-EN en 0207c...

  • Page 95: Replacing The Large Surface-Mounted Silencer

    5. Make sure that the seal is seated correctly. It must lie in the recess in the end plate. 6. Place the new silencer on the end plate. 7. Fasten the silencer only with the original screws. Tighten these screws with max. 0.7 Nm (± 0.1 Nm). 5-11 Festo P.BE-CPA-EN en 0207c...

  • Page 96: Replacing The End Plate, Sub-Base Or Manifold Block

    Pull the pin-type inserts out of the sub- base (see diagram). If necessary, use a screwdriver to do this. Clamping spring Pin-type inserts Fig. 5/3: Removing the pin-type inserts 5-12 Festo P.BE-CPA-EN en 0207c...
  • Page 97 Fig. 5/4: Loosening components on sub-bases 5. Replacing a sub-base or a manifold block: Remove the component on the sub-base to be replaced (see this chapter, “Replacing a sub-base, blanking plate or additional supply plate”). 5-13 Festo P.BE-CPA-EN en 0207c...
  • Page 98 Loosen the four fastening screws of the electrical sub- base or cover block and remove it from the relevant end plate (see diagram). Fastening screws of the electric sub-base Fastening screws of the cover block Fig. 5/6: Removing the sub-base or cover block 5-14 Festo P.BE-CPA-EN en 0207c...
  • Page 99 (see Fig. 5/8). Remove the seals from the sub-base or manifold block to be replaced. Sub-base to be replaced Fig. 5/7: Removing sub-bases Unlocking the manifold block Removing the manifold block from the sub- base Fig. 5/8: Removing the manifold block 5-15 Festo P.BE-CPA-EN en 0207c...
  • Page 100 Make sure that the electrical sub-base or cover block lies flush with the appropriate end plate (see Fig. 5/9). Tighten the screws with 0.7 Nm (± 0.1 Nm) (position see Fig. 5/6). 5-16 Festo P.BE-CPA-EN en 0207c...
  • Page 101 7. Tighten the screws of the tie rods in two stages as follows: Stage CPA10 CPA14 0.5 Nm 0.5 Nm 1.5 Nm 2 Nm Tab. 5/3: Tightening torques of the tie rods 5-17 Festo P.BE-CPA-EN en 0207c...
  • Page 102 12. Fit the CPA valve terminals onto their fastening surface (see chapter 2 “Fitting,” “Fitting onto a wall” or “Fitting onto a hat rail”). 13. Then fit the pneumatic and electrical connections (see chapter 3 “Installation, connecting the CPA valve terminal”). 5-18 Festo P.BE-CPA-EN en 0207c...

  • Page 103: Conversion Work On The Cpa Valve Terminal

    Conversion is not necessary. Proceed as follows: If you wish to re-use the safety clip: Use a thin object (e.g. a spatula) to lift the safety clip out • of the fixture (Fig. 5/10, 1 ). 5-19 Festo P.BE-CPA-EN en 0207c...
  • Page 104 (Fig. 5/10, 2 ). The safety clip will then bend and snap out of the fixture. Removing the safety clip by lifting it Remove the safety clip by pressing it out ( clip can be re-used) Fig. 5/10: Converting the manual override 5-20 Festo P.BE-CPA-EN en 0207c...

  • Page 105: Conversion To Internal Or External Pilot Air

    Unused connections must be sealed. Tab. 5/4: Right-hand end plate The method of fitting the relevant end plate into your CPA valve terminal is described in this chapter under “End plate, replacing the sub-base or manifold block.” 5-21 Festo P.BE-CPA-EN en 0207c...

  • Page 106: Converting The Cpa Valve Terminal To Different Pressure Zones

    The method of replacing the sub-bases and of fitting the addi- tional supply plate is described in this chapter under “Replac- ing the end plate, sub-base or manifold block” or “Replacing valve sub-bases, blanking plates or additional supply plates.” 5-22 Festo P.BE-CPA-EN en 0207c...
  • Page 107 Connection 1 on the right-hand end plate for supplying compressed air to the 3rd. pressure zone Valve sub-bases of the 3rd. pressure zone Fig. 5/11: Example of a CPA valve terminal with two pressure zones 5-23 Festo P.BE-CPA-EN en 0207c...

  • Page 108: Conversion Of Valve Location For Actuating One Or Two Solenoid Coils

    CPA valve terminal by means of the identification marking on the manifold block (see diagram). EV1: manifold block for actuating one solenoid coil EV2: manifold block for actuating two solenoid coils Fig. 5/12: Marking the manifold blocks 5-24 Festo P.BE-CPA-EN en 0207c...

  • Page 109: Adding/Removing Valve Locations

    By adding or removing valve locations, you can easily adapt the CPA terminal to your requirements. A valve location consists of a sub-base and a manifold block. The number of valve locations determines the length of the tie rods and the tie rod screws. 5-25 Festo P.BE-CPA-EN en 0207c...
  • Page 110 Short tie rod screw for extending this CPA valve terminal to 8 valve locations Long tie rod screw for extending this CPA valve terminal to 9 valve locations Fig. 5/13: Extending the CPA valve terminal 5-26 Festo P.BE-CPA-EN en 0207c...
  • Page 111 Short tie rod screw if necessary CPA..-ZA-SK (for valve terminals with an even numberof valve locations) Long tie rod screw if necessary CPA..-ZA-SL (for valve terminals with an odd numberof valve locations) Tab. 5/5: Tie rod extension 5-27 Festo P.BE-CPA-EN en 0207c...
  • Page 112 Short tie rod screw if necessary CPA..-ZA-SK (for valve terminals with an even numberof valve locations) Long tie rod screw if necessary CPA..-ZA-SL (for valve terminals with an odd numberof valve locations) Tab. 5/7: Tie rods and tie rod screws 5-28 Festo P.BE-CPA-EN en 0207c...
  • Page 113 2 basis tie rods if necessary 2 basis tie rods if necessary 2 long tie rod screws 2 short tie rod screws Number of valve locations to be removed Tab. 5/8: Adapting the tie rod length 5-29 Festo P.BE-CPA-EN en 0207c...
  • Page 114 Use the tie rod extension only for two additional valve loca- tions. Further tie rod extensions are not permitted. In this case use correspondingly longer basis tie rods. 5-30 Festo P.BE-CPA-EN en 0207c...
  • Page 115 (see this chapter, “Replacing sub-bases, blanking plates or additional supply plates ”). 3. Fit the CPA valve terminal onto its fastening surface (see chapter 2 “Fitting onto a wall” or “Fitting onto a hat rail”). 5-31 Festo P.BE-CPA-EN en 0207c...
  • Page 116 5. Maintenance and conversion 5-32 Festo P.BE-CPA-EN en 0207c...

  • Page 117: Technical Appendix

    Technical appendix Appendix A Festo P.BE-CPA-EN en 0207c...

  • Page 118: A. Technical Appendix

    ......... . Festo P.BE-CPA-EN en 0207c...

  • Page 119: Festo Accessories

    CPA valve terminal with IC connection – Individual connector plug with LED and holding current reduction KMYZ-7-24-...-LED CPA valve terminal with MP connection – Ready-to-use multipin cable KEA-1-25P-.. – Multipin socket SD-SUB-D-BU Tab. A/1: Festo accessories for CPA valve terminal Festo P.BE-CPA-EN en 0207c...

  • Page 120: Technical Specifications

    - 5 ... + 50 ° – Medium - 5 ... + 50 Protection class as per EN 60529 IP65 (with cable from Festo accessories) Relative humidity 90 % Protection against corrosion Against industrial climate (as per FN 940070) Mounting position...
  • Page 121 The valves can be used at temperatures down to – 5 In order to prevent the condensate and the humidity from freezing, we recommend that you fit a dryer with which condensate and humidity can be removed. Festo P.BE-CPA-EN en 0207c...
  • Page 122 12/14: see diagrams Valve location Ident. codes B, E, G, J, M: 1: - 0,9...10 bar All valve sub-bases: 1: 3...10 bar Manual override Locking or non-locking Tab. A/4: Technical specifications – medium and pressure ranges Festo P.BE-CPA-EN en 0207c...
  • Page 123 Fig. A/1: External pilot air diagram for valve sub-bases CPA10 Ident. codes N, K, H Control pressure 12/14 (bar) Work pressure P1 (bar) Start-up pressure Fig. A/2: External pilot air diagram for valve sub-bases CPA14 Ident. codes N, K, H Festo P.BE-CPA-EN en 0207c...
  • Page 124 2 ⇒ 3/5 or 4 ⇒ 3/5 5/2-way valve (single-solenoid) 5/2-way valve (double-solenoid) N, K, H, All 3/2-way valves 5/3-way valve, pressurized 550 (400) 5/3-way valve, closed 5/3-way valve, exhausted 550 (400) Tab. A/5: Technical specifications – flow rates Festo P.BE-CPA-EN en 0207c...
  • Page 125 All 3/2-way valves On: 9 Off: 28 5/3-way valve, pressurized On: 13 Off: 39 5/3-way valve, closed On: 13 Off: 30 5/3-way valve, exhausted On: 13 Off: 39 Tab. A/6: Technical specifications – valve switching times Festo P.BE-CPA-EN en 0207c...
  • Page 126 – CPA valve terminal with CP connection 20 mA Tab. A/7: Technical specifications electric components Data on the electric components of the CPA valve terminal with MP or AS-Interface connection are enclosed with the product. A-10 Festo P.BE-CPA-EN en 0207c...

  • Page 127: Supplementary Component Summary And Installation Instructions

    Supplementary component summary and installa- tion instructions Appendix B Festo P.BE-CPA-EN en 0207c...

  • Page 128: B. Supplementary Component Summary And Installation Instructions

    ......... . Separating the CPA valve terminal from the CPX terminal ....Festo P.BE-CPA-EN en 0207c...

  • Page 129: Overview Of End Plates

    Ident. code: H 82/84 Function: – On control side 14 a single-solenoid 3/2-way valve (basic position blocked) and on control side 12 a single-solenoid 3/2-way valve (basic position open). 12/14 Tab. B/1: Valve sub-bases with 3/2-way valves Festo P.BE-CPA-EN en 0207c...
  • Page 130 The number of assigned outputs: valve location with manifold block EV1: 1A 12/14 valve location with manifold block EV2: 2A Ident. code: J 82/84 Function: – One 5/2-way valve, double-solenoid 12/14 Tab. B/2: Valve sub-bases with 5/2-way valves Festo P.BE-CPA-EN en 0207c...
  • Page 131 – 5/3-way valve, mid position pressurized 12/14 Ident. code: G 82/84 Function: – 5/3-way valve, blocked in mid-position 12/14 Ident. code: I 82/84 Function: – 5/3-way valve, exhausted in mid position 12/14 Tab. B/3: Valve sub-bases with 5/3-way valves Festo P.BE-CPA-EN en 0207c...

  • Page 132: Separating The Cpa Valve Terminal From The Cpx Terminal

    Dismantling 1. Loosen the electrical and pneumatic connections and remove the CPA valve terminal from its fastening surface (see this chapter, “Dismantling the CPA valve terminal”). 2. Remove the dowel pins with a punch (see diagram). Festo P.BE-CPA-EN en 0207c...
  • Page 133 B. Supplementary component summary and installation instructions Fig. B/4: Dismantling the CPA valve terminal from the CPX terminal Festo P.BE-CPA-EN en 0207c...
  • Page 134 Fig. B/5: Dismantling the CPA valve terminal from the CPX terminal 4. Pull the CPA valve terminal carefully upwards from the CPX terminal without tilting. Fig. B/6: Dismantling the CPA valve terminal from the CPX terminal Festo P.BE-CPA-EN en 0207c...
  • Page 135 1. Insert the electrical bridge in the contact strip of the CPX terminal. Fig. B/7: Fitting the electrical bridge 2. Push the CPA valve terminal together with the CPX ter- minal. Make sure that the electrical bridge is correctly seated in the contact strips. Festo P.BE-CPA-EN en 0207c...
  • Page 136 3. Press and hold the CPA valve terminal against the CPX terminal. 4. Place the dowel pins over the holes of the pneumatic adapter. Drive them in with a punch. They must be flush with the rear side (not projecting). B-10 Festo P.BE-CPA-EN en 0207c...
  • Page 137 7. Carry out the electrical and pneumatic connections of the CPX terminal. Information on the: – electrics can be found in the CPX system manual. – pneumatics can be found in chapter 3 of this manual. B-11 Festo P.BE-CPA-EN en 0207c...
  • Page 138 B. Supplementary component summary and installation instructions B-12 Festo P.BE-CPA-EN en 0207c...

  • Page 139: Index

    Index Appendix C Festo P.BE-CPA-EN en 0207c...

  • Page 140: C. Index

    ............Festo P.BE-CPA-EN en 0207c...
  • Page 141 ....3-21 Current consumption ......A-10 Festo P.BE-CPA-EN en 0207c...
  • Page 142 ........Festo P.BE-CPA-EN en 0207c...
  • Page 143 ........1-13 Notes on the use of this manual ..... . Festo P.BE-CPA-EN en 0207c...
  • Page 144 ....... . 5-28 Replacing the end plate ......5-12 Festo P.BE-CPA-EN en 0207c...
  • Page 145 ........Festo P.BE-CPA-EN en 0207c...
  • Page 146 C. Index Festo P.BE-CPA-EN en 0207c...

This manual is also suitable for:

Cpa10viCpa14viCpa series

Table of Contents
