- Page 1 CPX-AP-A-8DO-M12-5P Digital output module Operating instruc- tions 8160729 2022-07 [8160731]...
- Page 2 Translation of the original instructions...
-
Page 3: Table Of Contents
Technical data ..............14 Festo — CPX-AP-A-8DO-M12-5P — 2022-07... -
Page 4: About This Document
The product labelling and the Data Matrix Code are printed on the housings of the modules. Scanning the Data Matrix Code with an appropriate device opens the Festo Internet page with documents appropriate for the product. Alternatively, the Product Key (11-digit alphanumeric code on the product labelling) can be entered in the search field è... -
Page 5: Safety
The qualified personnel have skills and experience in dealing with electrical (open-loop) control technology. Additional information – Contact the regional Festo contact if you have technical problems è www.festo.com. – Accessories and spare parts è www.festo.com/catalogue. Festo — CPX-AP-A-8DO-M12-5P — 2022-07... -

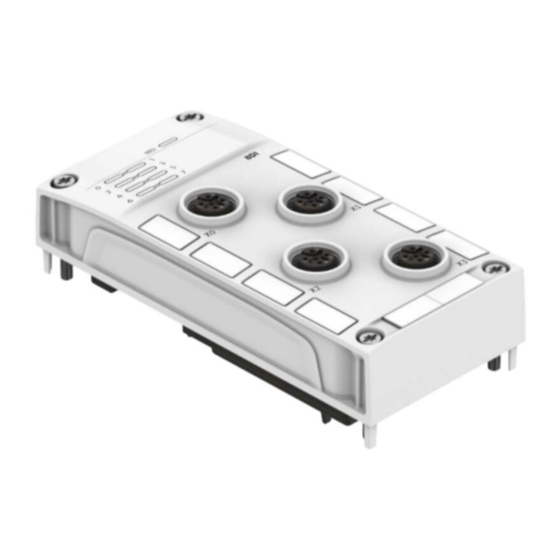

Page 6: Product Overview
Connection for outputs 6, 7 [X3] LED displays Inscription label (optional) Fig. 1: Product design 4.1.2 LED displays Status outputs (green) Module diagnostics [MD] (green, red) Status/diagnostics for load supply [PL] (green, red) Fig. 2: LED displays Festo — CPX-AP-A-8DO-M12-5P — 2022-07... -
Page 7: Connecting Elements
Carry out installation according to the "Automation system CPX-AP-A operating instructions" è 1.1 Applicable documents. Commissioning • Commission the automation system CPX-AP-A in accordance with the "Instruction manual for automation system CPX-AP-A" è 1.1 Applicable documents. Festo — CPX-AP-A-8DO-M12-5P — 2022-07... -
Page 8: Parameterisation
Measured value of temperature AP-ASIC [°C] 1 INT16 – 20087 Current measured value of logic supply (PS) 1 UINT16 – 20088 Current measured value of load supply (PL) UINT16 – 20089 Quality of the transmission line UINT16 Festo — CPX-AP-A-8DO-M12-5P — 2022-07... -
Page 9: Diagnostics And Fault Clearance
02 | 01 | 0105 Undervoltage in load Undervoltage in the load supply PL 24 V DC has been (33620229) supply PL 24 V DC detected. – Check load supply PL. Remedy Diagnos- Error tics status Festo — CPX-AP-A-8DO-M12-5P — 2022-07... - Page 10 – Check the cable. Diagnos- Error tics status 08 | 01 | 01A2 Device in emergency System initialisation (module detection) has failed. The (134283682) operation system system is in maintenance mode. There is no I/O function state available. Festo — CPX-AP-A-8DO-M12-5P — 2022-07...
- Page 11 – Restart system 08 | 01 | 01A2 Device in emergency Remedy – Update firmware to the latest version (134283682) operation system – Contact Festo Service state Diagnos- Error tics status Tab. 7: Diagnostics messages Festo — CPX-AP-A-8DO-M12-5P — 2022-07...
-
Page 12: Led Displays
PS red light Module ramp-up not yet completed. – System communication not yet initial- ised. flashing red 2 Hz Module identification (service function) – flashing green 2 Hz Tab. 8: LED module diagnostics [MD] Festo — CPX-AP-A-8DO-M12-5P — 2022-07... - Page 13 Tab. 9: LED status of output Diagnostics of output LED (red) Meaning Remedy Short circuit/overload at output Check the connected actuators, elimi- nate short circuit/overload. Illuminated No channel error at output – Tab. 10: LED diagnostics of output Festo — CPX-AP-A-8DO-M12-5P — 2022-07...
-
Page 14: Technical Data
(Safe extra-low voltage/Protected extra-low voltage) in accordance with IEC 60204-1 and IEC 60364-4-41) Electromagnetic compatibility See declaration of conformity è www.festo.com Mounting position Tab. 11: General technical data Power supply Logic supply PS [V DC] 24 ±... - Page 15 Response after end of over- No automatic recovery load Output delay with resistive load Signal change from 0 to 1 [µs] . 200 Signal change from 1 to 0 [µs] . 200 Tab. 13: Digital outputs Festo — CPX-AP-A-8DO-M12-5P — 2022-07...
- Page 16 Copyright: Festo SE & Co. KG 73734 Esslingen Ruiter Straße 82 Deutschland Phone: +49 711 347-0 Internet: © 2022 all rights reserved to Festo SE & Co. KG www.festo.com...
