Base Circuit Board Overview - Auerswald COMmander Basic.2 Installation And Commissioning Instructions

Modular pbxs for isdn and internet telephony

Hide thumbs Also See for COMmander Basic.2:

Table of Contents

Preparation (Casing Variants for Wall Mounting)

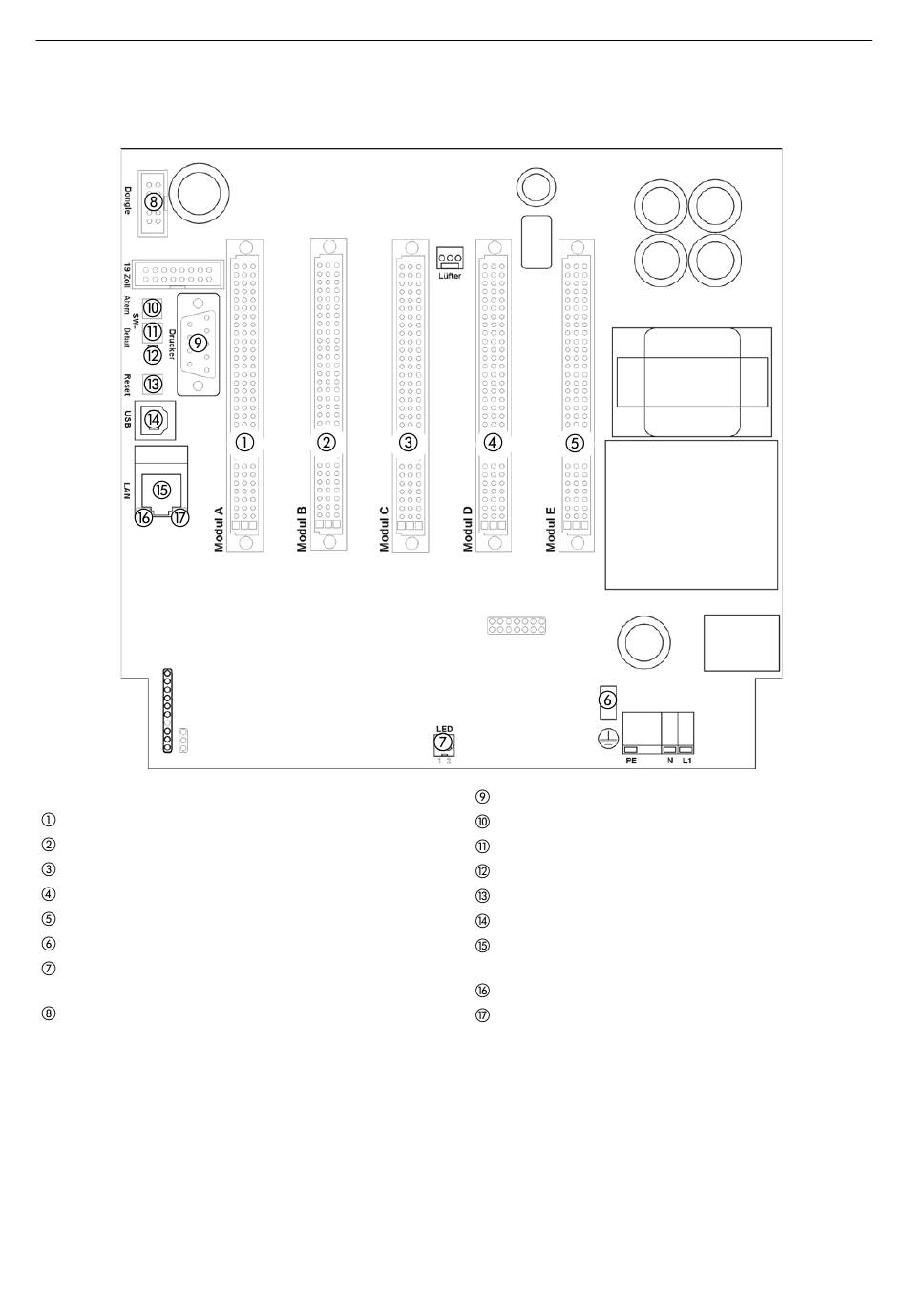

Fig. 14: COMmander Basic.2 base circuit board

Module slot 1A for universal module use

Module slot 1B for universal module use

Module slot 1C for universal module use

Module slot 1D for universal module use

Module slot 1E for universal module use

Earthing terminal

Connector for connecting the casing and the LED

("Power" LED)

Socket for inserting the system dongle

Base Circuit Board Overview

9-pole D-sub socket for connecting to a serial printer

"Alternate" button

"Default" button

"Status" LED

"Reset" button

USB socket for connecting to a PC

RJ-45 socket (Ethernet) for connecting to a PC Or

network

"LAN" LED (green)

"LAN Activity" LED (orange)
