3. How to Install
3

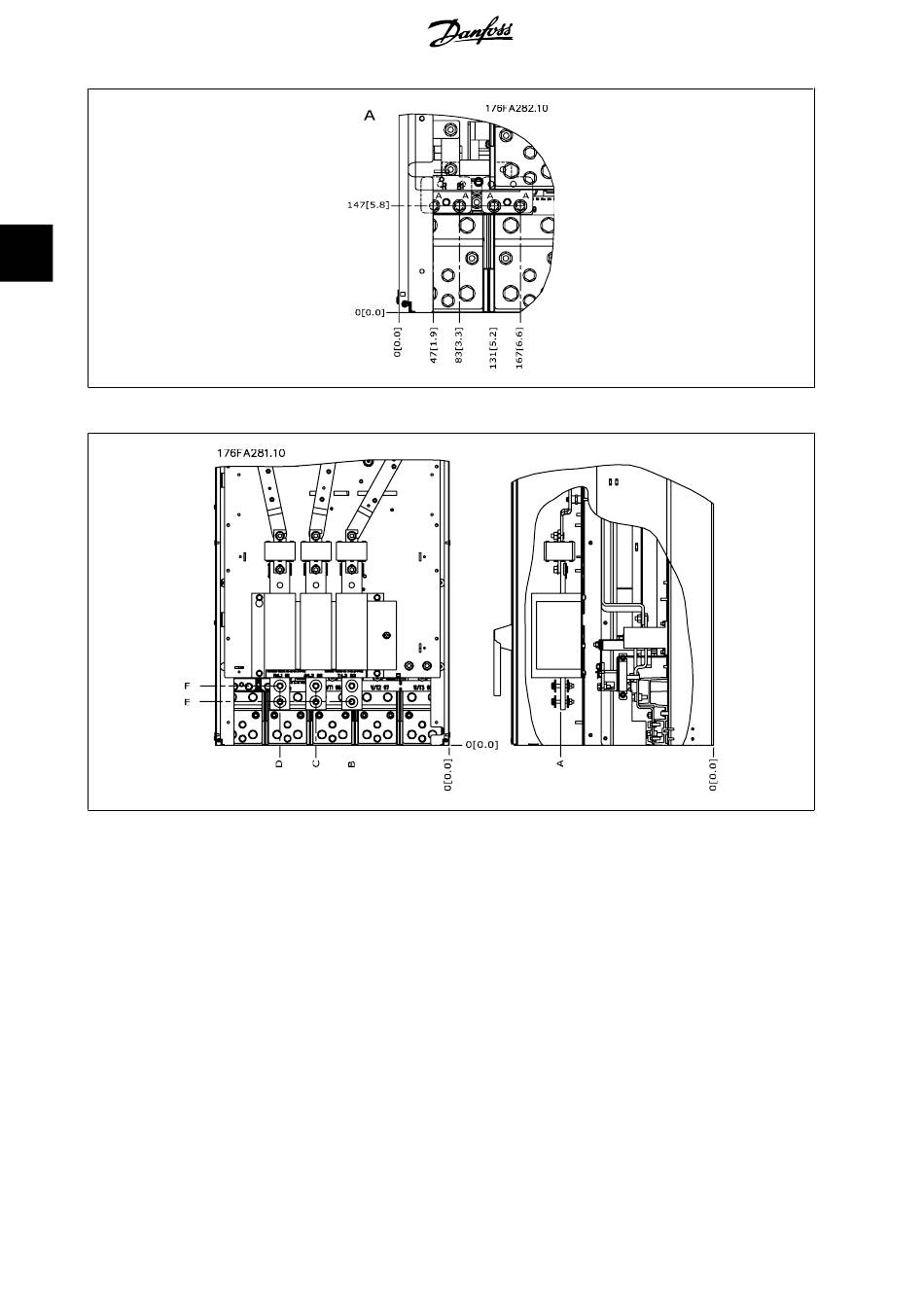

Illustration 3.16: IP00 enclosure power connection positions
Illustration 3.17: IP00 enclosure power connections positions of disconnect switch
Note that the power cables are heavy and difficult to bend. Consider the optimum position of the frequency converter for ensuring easy installation of
the cables.
Each terminal allows use of up to 4 cables with cable lugs or use of standard box lug. Earth is connected to relevant termination point in the drive.
