VLT
Automation Drive FC 300
Operating Instructions High Power
Terminal locations - Options Cabinet (F3 and F4 enclosures)

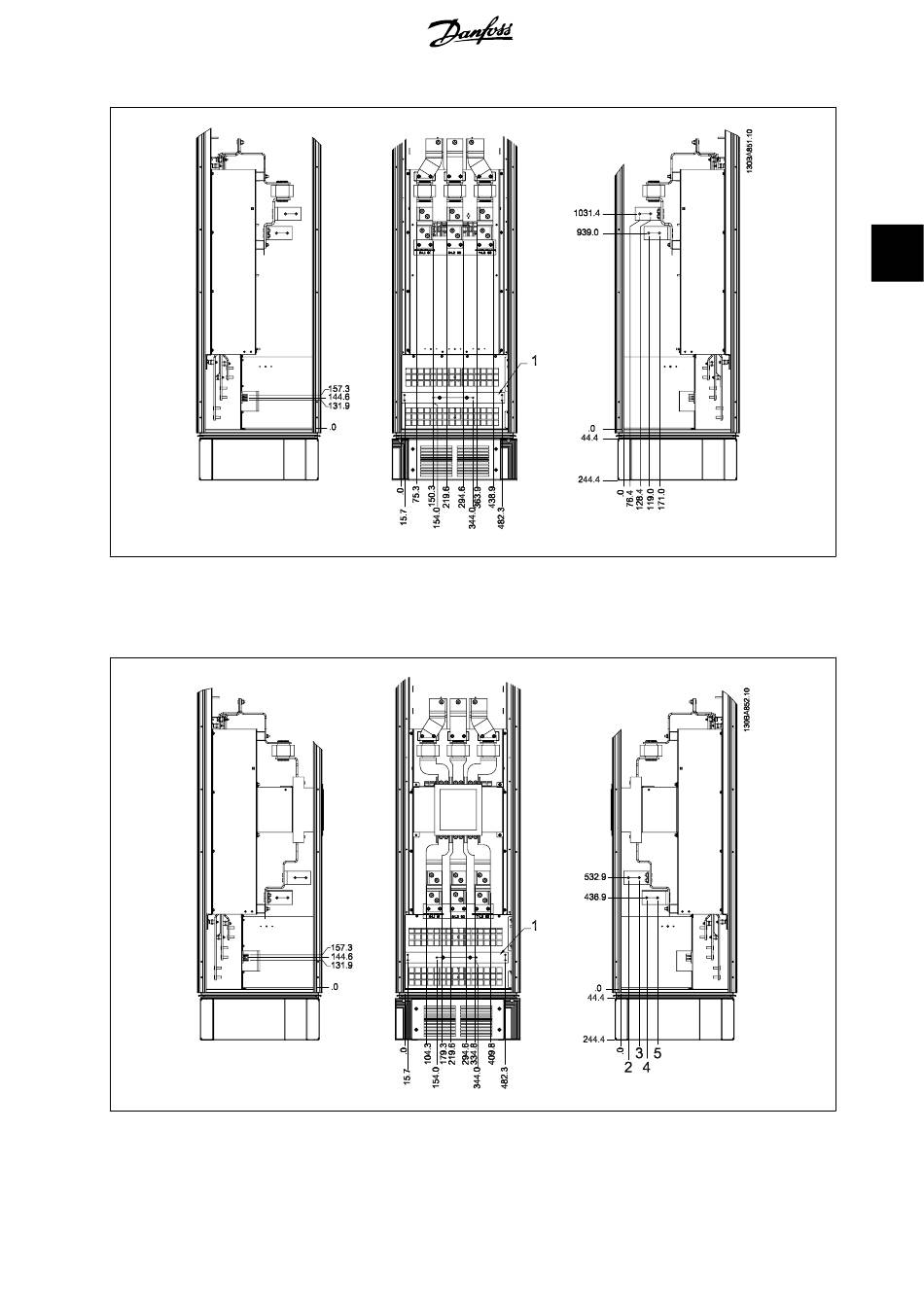

Illustration 3.22: Terminal locations - Options Cabinet (Left side, front and right side view)
1) Earth ground bar
Terminal locations - Options Cabinet with circuit breaker/ mol-
ded case switch (F3 and F4 enclosures)
Illustration 3.23: Terminal locations - Options Cabinet with circuit breaker/ molded case switch (Left side, front and right side view)
1) Earth ground bar
MG.33.U2.02 - VLT
®
is a registered Danfoss trademark
3. How to Install
3
33
