3. How to Install
3

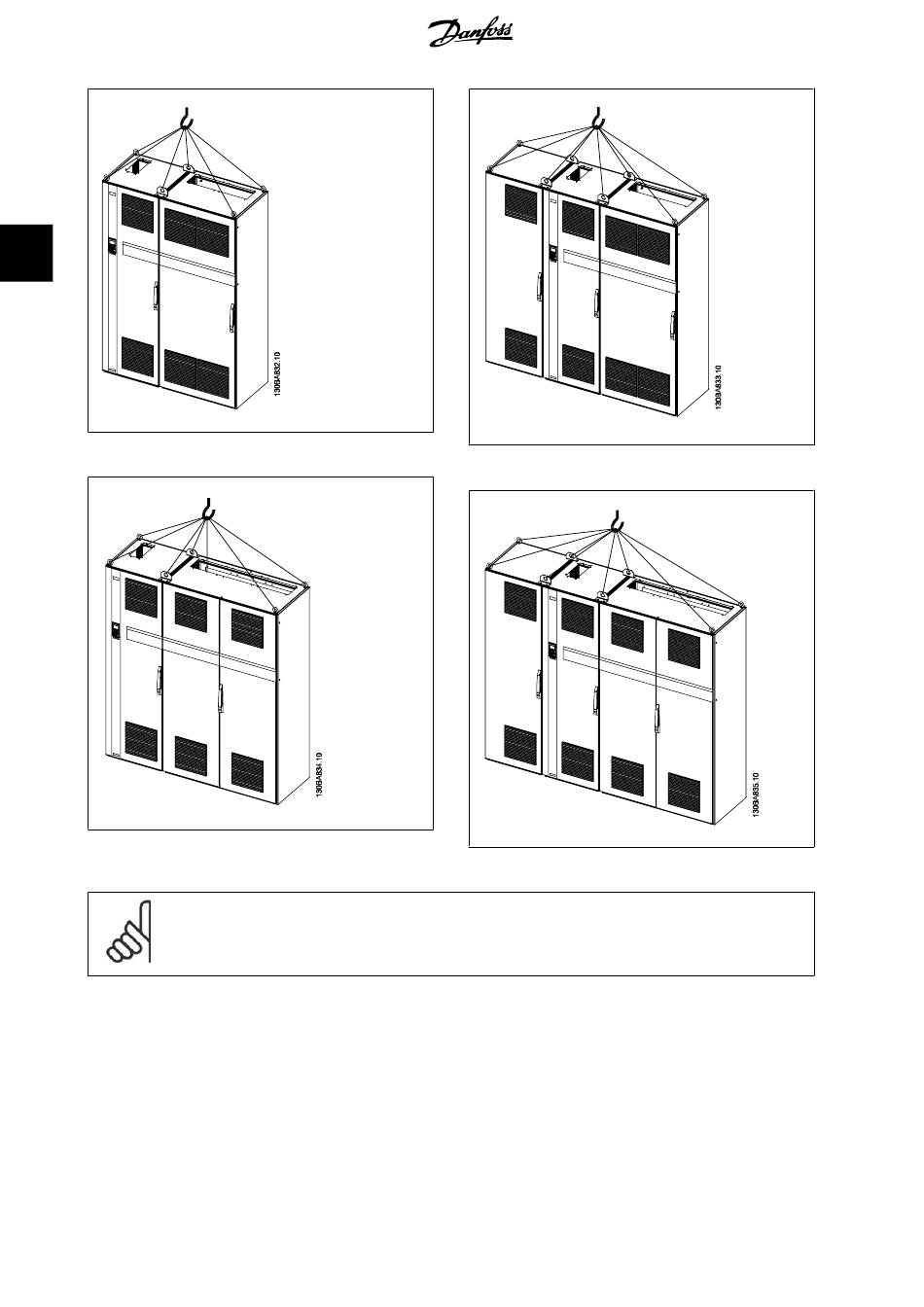

Illustration 3.4: Recommended lifting method, enclosure F1
Illustration 3.5: Recommended lifting method, enclosure F2
NB!
Note the plinth is provided in the same packaging as the VLT but is not attached to F1-F4 enclosures during shipment. The plinth is
required to allow airflow to the drive to provide proper cooling. The F enclosures should be positioned on top of the plinth in the final
installation location. The angle from the top of the drive to the lifting cable should be 60 degrees or greater.
16
Illustration 3.6: Recommended lifting method, enclosure F3
Illustration 3.7: Recommended lifting method, enclosure F4
