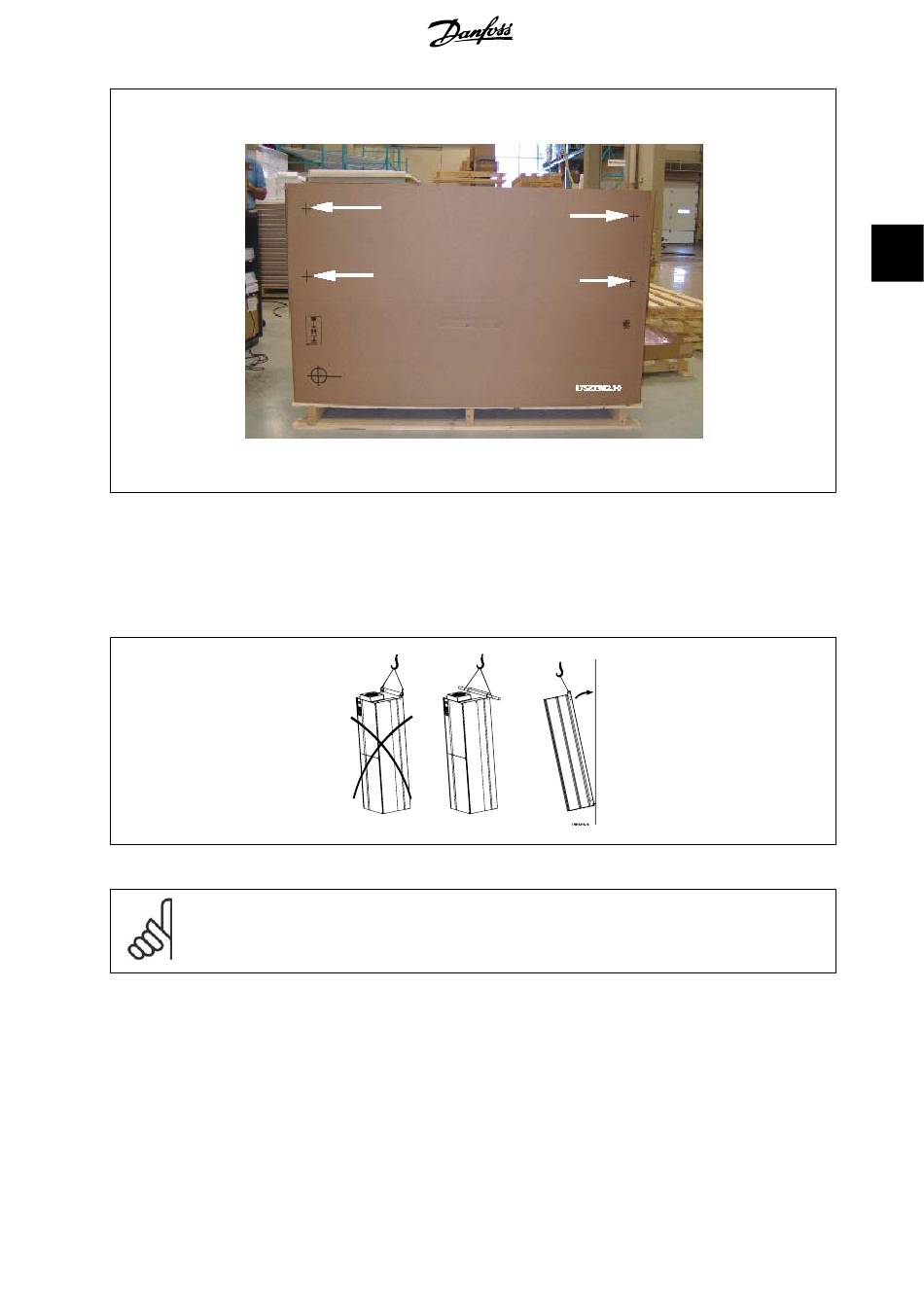

Illustration 3.2: Mounting Template

3.2.4. Lifting

Always lift the frequency converter in the dedicated lifting eyes. For all D and E2 (IP00) enclosures, use a bar to avoid bending the lifting holes of the
frequency converter.
Illustration 3.3: Recommended lifting method, D and E enclosures
NB!
The lifting bar must be able to handle the weight of the frequency converter. See
enclosures. Maximum diameter for bar is 25 cm (1 inch). The angle from the top of the drive to the lifting cable should be 60 degrees
or greater.
