Illustration 3.18: Terminal in details
NB!
Power connections can be made to positions A or B

3.3.5. Terminal Locations - F enclosures

NB!
The F enclsoures have four different sizes, F1, F2, F3 and F4. The F1 and F2 consist of an inverter cabinet on the right and rectifier
cabinet on the left. The F3 and F4 have an additional options cabinet left of the rectifier cabinet. The F3 is an F1 with an additional
options cabinet. The F4 is an F2 with an additional options cabinet.
Terminal locations - F1 and F3 enclosures

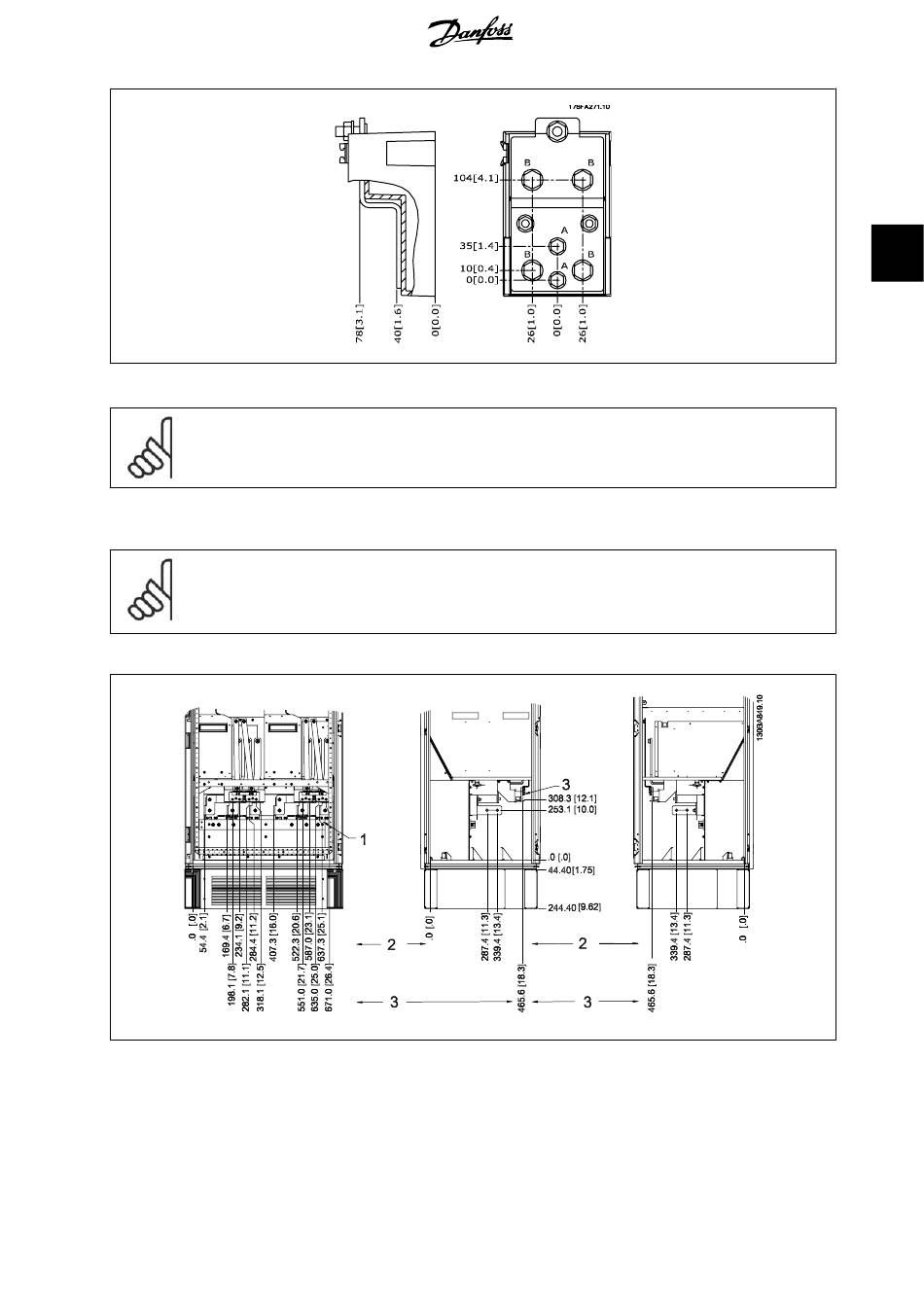

Illustration 3.19: Terminal locations - Inverter Cabinet - F1 and F3 (front, left and right side view)
1) Earth ground bar
2) Motor terminals
3) Brake terminals
