3. How to Install
3.3.4. Terminal Locations - E enclosures
Terminal locations - E1
Take the following position of the terminals into consideration when designing the cable access.
3

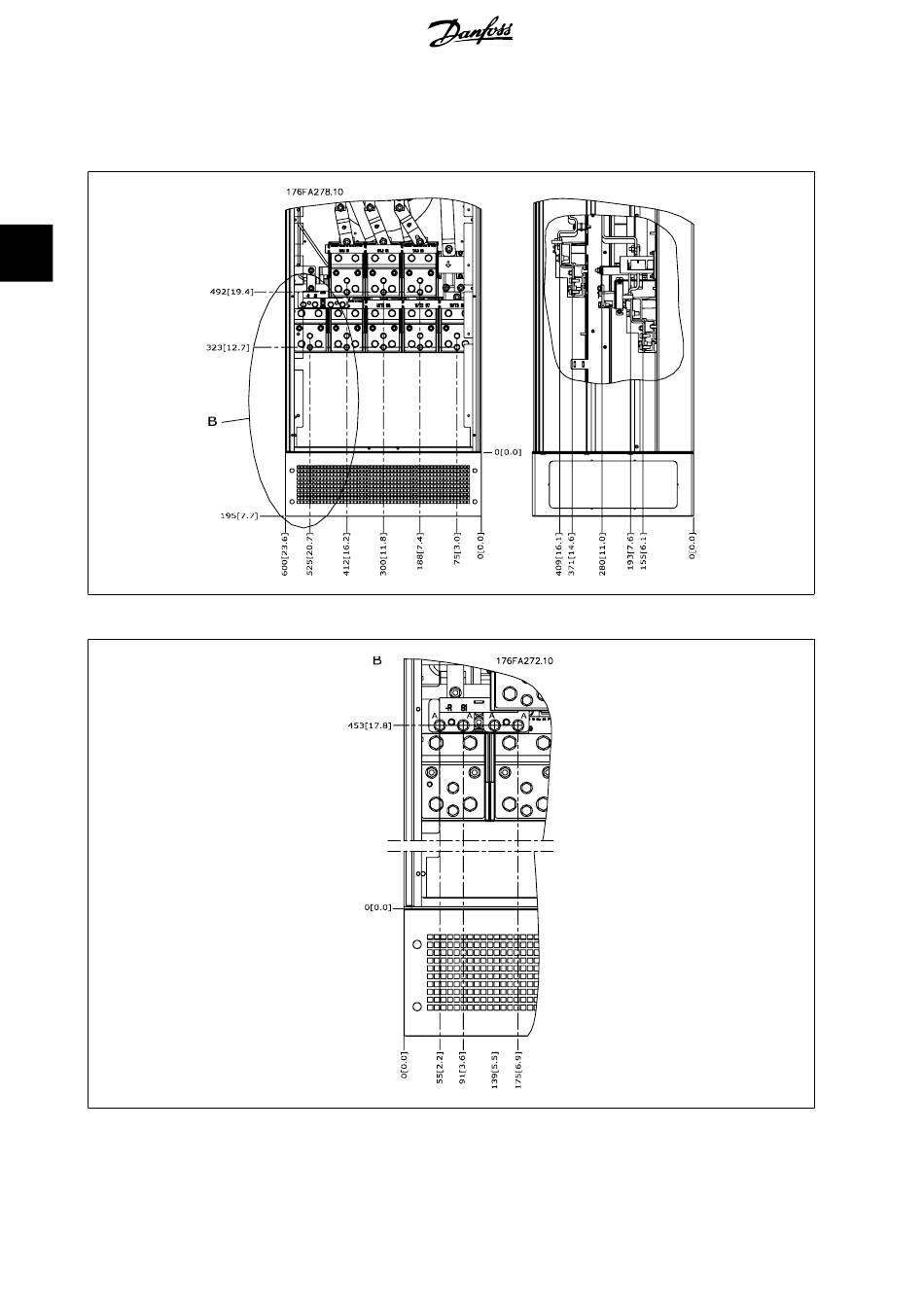

Illustration 3.12: IP21 (NEMA Type 1) and IP54 (NEMA Type 12) enclosure power connection positions
Illustration 3.13: IP21 (NEMA type 1) and IP54 (NEMA type 12) enclosure power connection positions (detail B)
28
MG.33.U2.02 - VLT
®
is a registered Danfoss trademark
®
VLT
Automation Drive FC 300
Operating Instructions High Power
