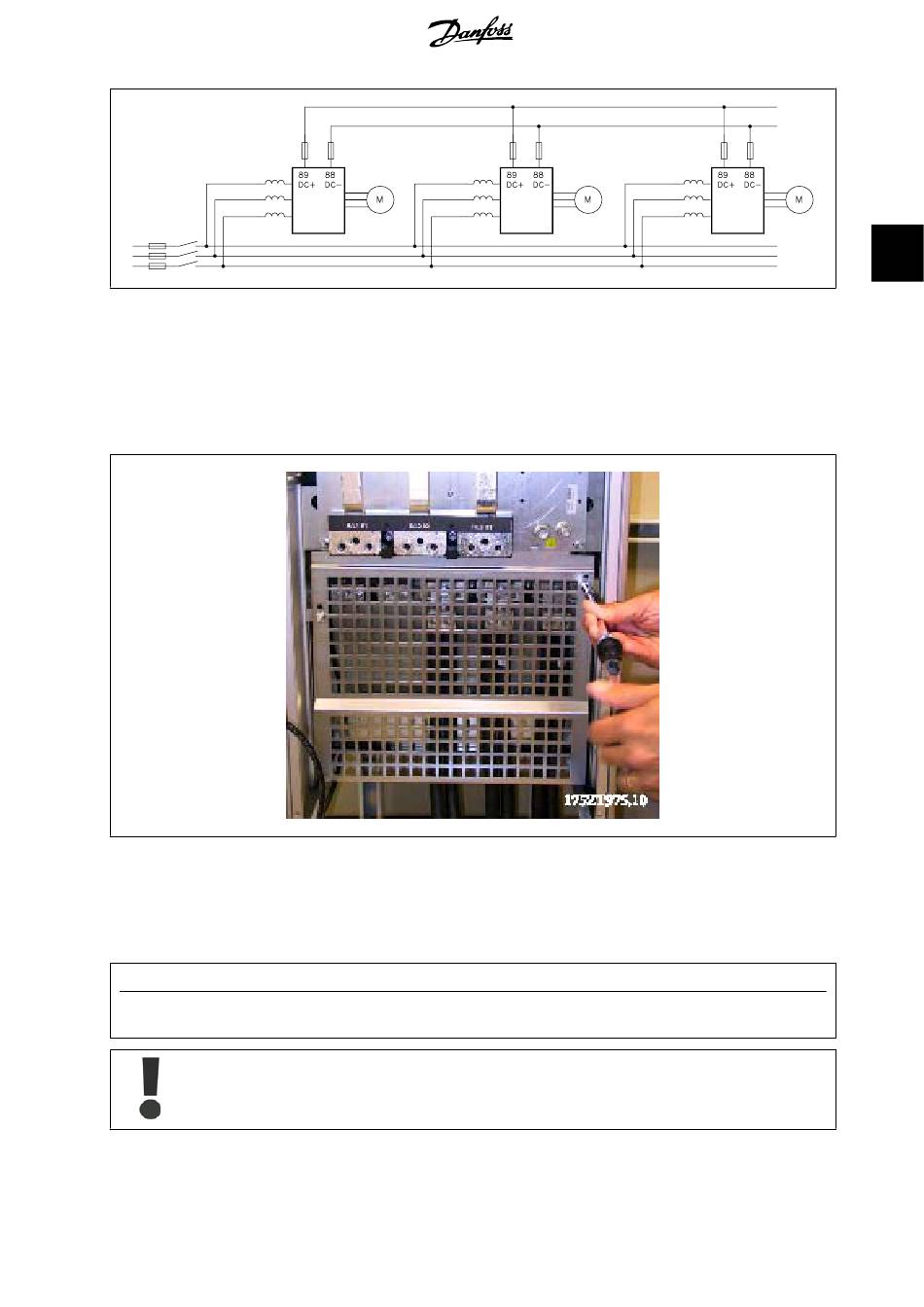

Illustration 3.46: Possible load sharing connection.
3.6.10. Shielding against Electrical Noise
Before mounting the mains power cable, mount the EMC metal cover to ensure best EMC performance.
NOTE: The EMC metal cover is only included in units with an RFI filter.
Illustration 3.47: Mounting of EMC shield.

3.6.11. Mains connection

Mains must be connected to terminals 91, 92 and 93. Earth/ground is connected to the terminal to the right of terminal 93.
Terminal No.
91, 92, 93
94
Check the name plate to ensure that the mains voltage of the frequency converter matches the power supply of your plant.
Function
Mains R/L1, S/L2, T/L3
Ground/Earth
