Chapter 2: Installation and Wiring
1
6
Description
1
Mounting screw hole/mounting foot
2
Removable Terminal Block (RTB)
3
RTB hold down screws
User's Manual Pub. 0300321-01 Rev. A

2.4.1 Minimum Spacing

Maintain spacing from enclosure walls, wire ways, adjacent equipment, etc.
Allow 50.8 mm (2 in.) of space on all sides for adequate ventilation, as shown:

2.4.2 Parts List

Your package contains one Micro800 Expansion I/O 2085-IR8-SC Module and
one Quick Start Guide.

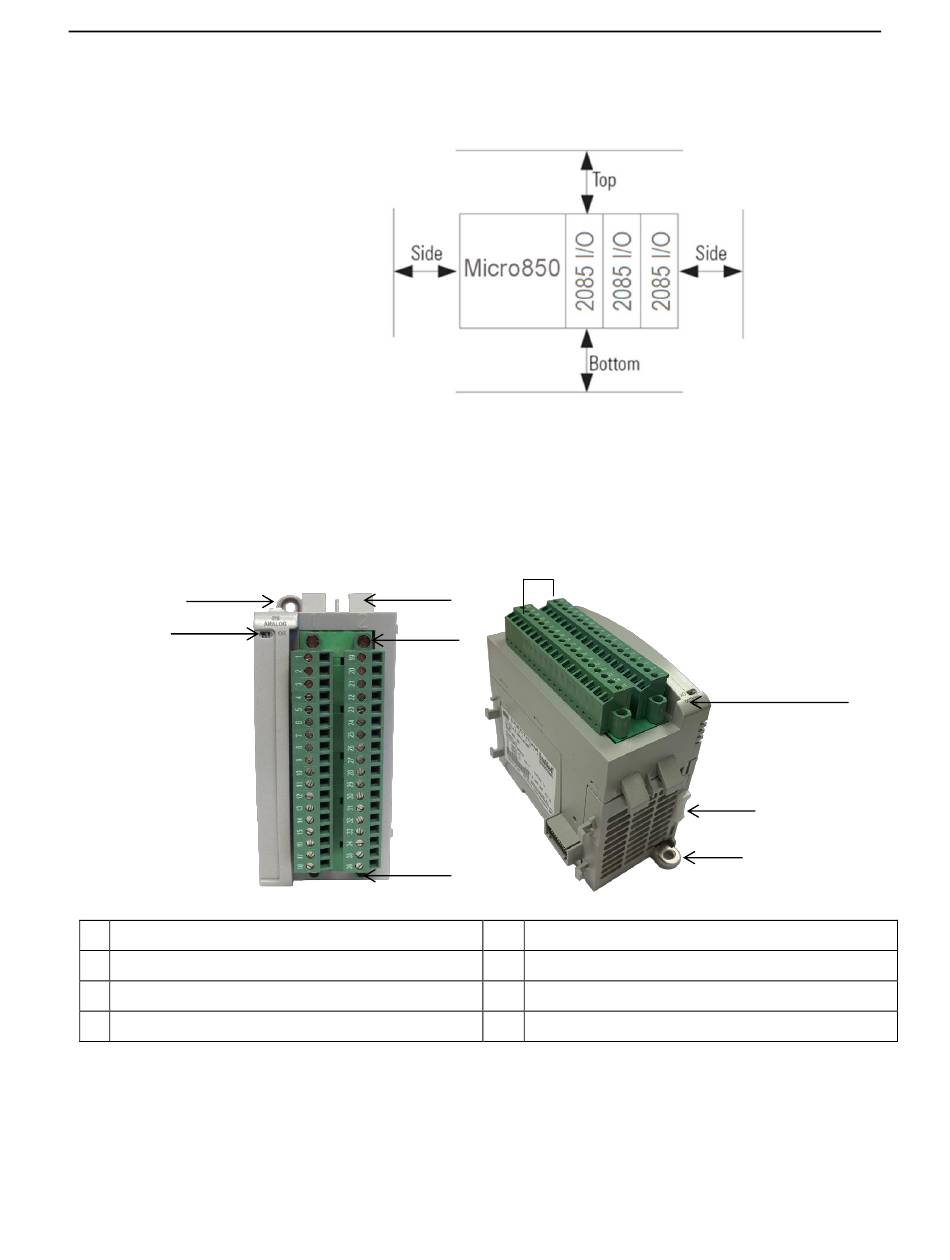

2.4.3 Module Description

You can choose to wire the expansion I/O module before installing it next to the
controller or wire it once the module is secured in place.
Place the module next to the controller against the panel where you are mounting
it. Make sure the controller and module are spaced properly.
2
5
3
3
Description
4
Module interconnect latch
5
DIN rail mounting latch
6
I/O Status LED
3
4
1
