Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW
4
The Disable option is only available for voltage measurement.
User's Manual Pub. 0300321-01 Rev. A

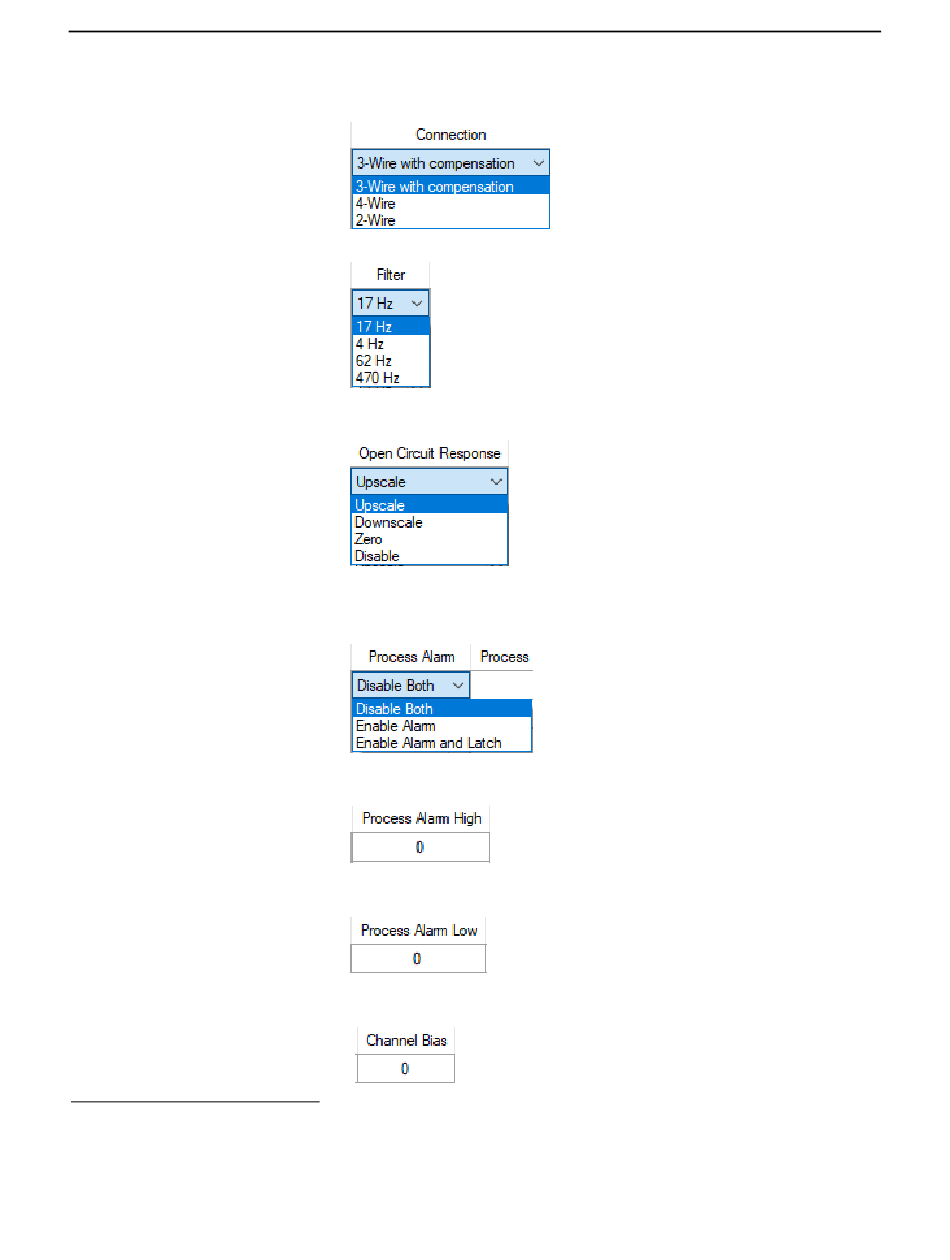

Connection. Defines connection type. Default is 3-Wire With
Compensation:
Filter. Specifies which filter to use. Default is 17 Hz.
Open Circuit Response. Specifies how to respond to an open circuit
condition. Default is Upscale
Process Alarm . Specifies whether a warning on under- or over-
range detection (from user-defined values) is turned on for the
channel, disabled, or enabled for both alarm and latch.
Process Alarm High. Specify over range value of a user-defined
value for the module to monitor.
Process Alarm Low. Specify under range value of a user-defined
pair of high and low values for the module to monitor.
Channel Bias. Specifies individual channel bias values. Default bias
is 0. Range may be -32768 to 32767.
