Chapter 1 Module Overview; Section 1.1 General Description - Spectrum Controls Micro800 2085-IR8-SC User Manual
Expansion i/o 8-channel rtd and resistance analog input module
Hide thumbs
Also See for Micro800 2085-IR8-SC:
- User manual (70 pages) ,
- User manual (68 pages) ,
- User manual (40 pages)
Table of Contents
Advertisement
Section 1.1
General
Description
Chapter 1
Module Overview
This chapter describes the following topics:
•
General description
•
Input specifications
•
Data formats
•
Hardware features
•
System overview
™
The Micro800

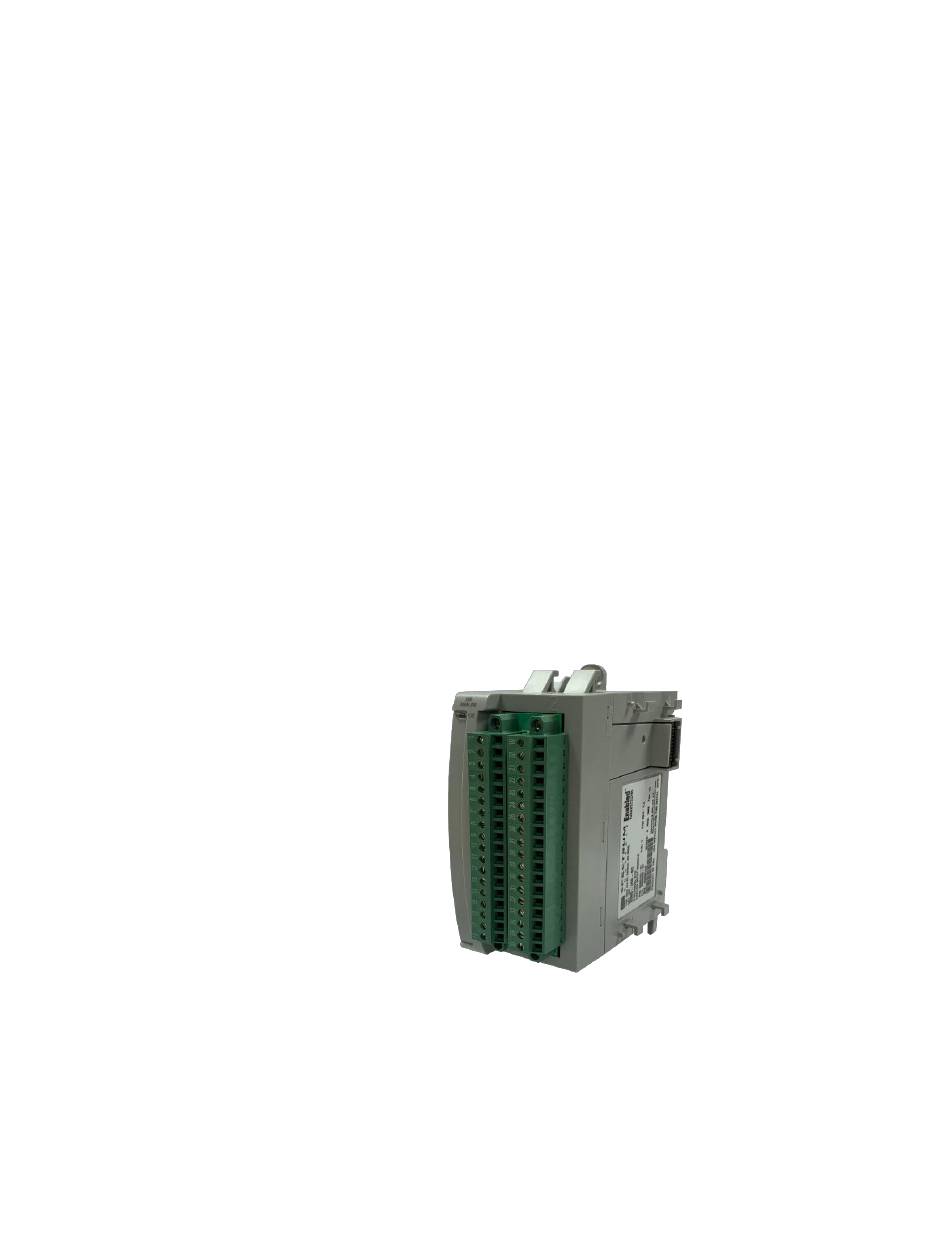

2085-IR8-SC is an isolated. 8-channel RTD/Resistance module
designed to expand the local I/O capability of Rockwell Automation Micro850
and Micro870 Systems over its Expansion I/O buses. The minimum system
requirement in which an Expansion I/O Module can be installed is a Micro850 or
Micro870 Controller and a controller power supply.
The number of 2085-IR8-SC modules that can be installed with a Micro850/870
PLC is based on the current controller firmware revision and CCW software
revision.
User's Manual Pub. 0300321-01 Rev. A
