Section 3.5
Mounting
User' s Manual 0300215-03 Rev. A
During panel or DIN rail mounting of all devices, be sure that all debris
!
(metal chips, wire strands, etc.) is kept from falling into the module.
Debris that falls into the module could cause damage at power up.
Attention

3.5.1 Minimum Spacing

Maintain spacing from enclosure walls, wireways, adjacent equipment, etc. Allow 50 mm
(2 in.) of space on all sides for adequate ventilation, as shown below:

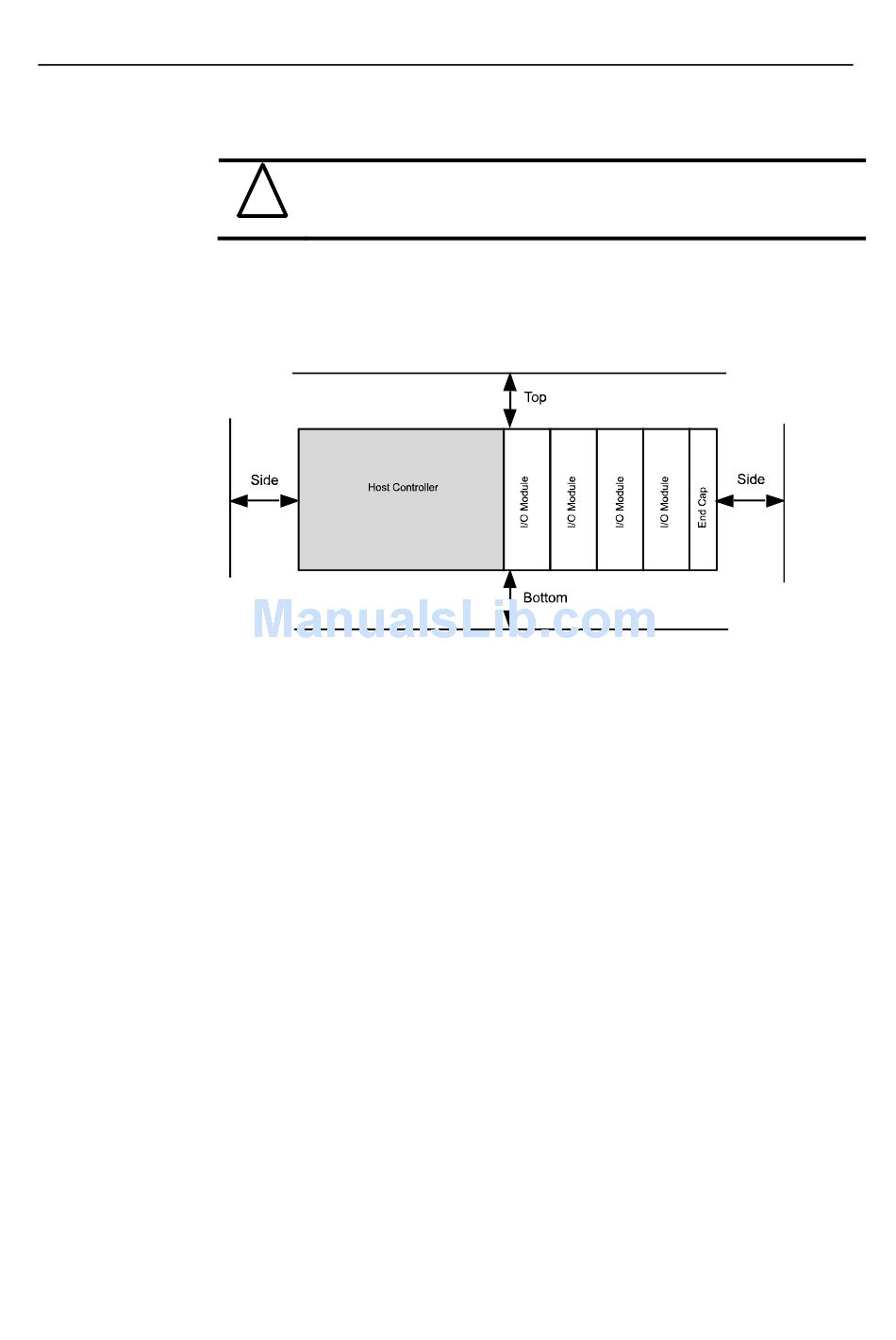

Figure 3-3

3.5.2 Panel Mounting

Mount the module to a panel using two screws per module. Use M4 or #8 panhead
screws. Mounting screws are required on every module.
