Section 2.6 Mounting
WARNING
The maximum I/O module rating is 8, which means that a module may not be
located more than 8 modules away from the system power supply.
Keeping module free of debris and avoiding overheating:
Do not remove protective debris strip until after the module and
all other equipment near the module is mounted and the wiring is
complete.
Once wiring is complete, and the module is free of debris,
carefully remove protective strip.
Failure to remove strip before operating can cause overheating.

2.6.1 Minimum Spacing

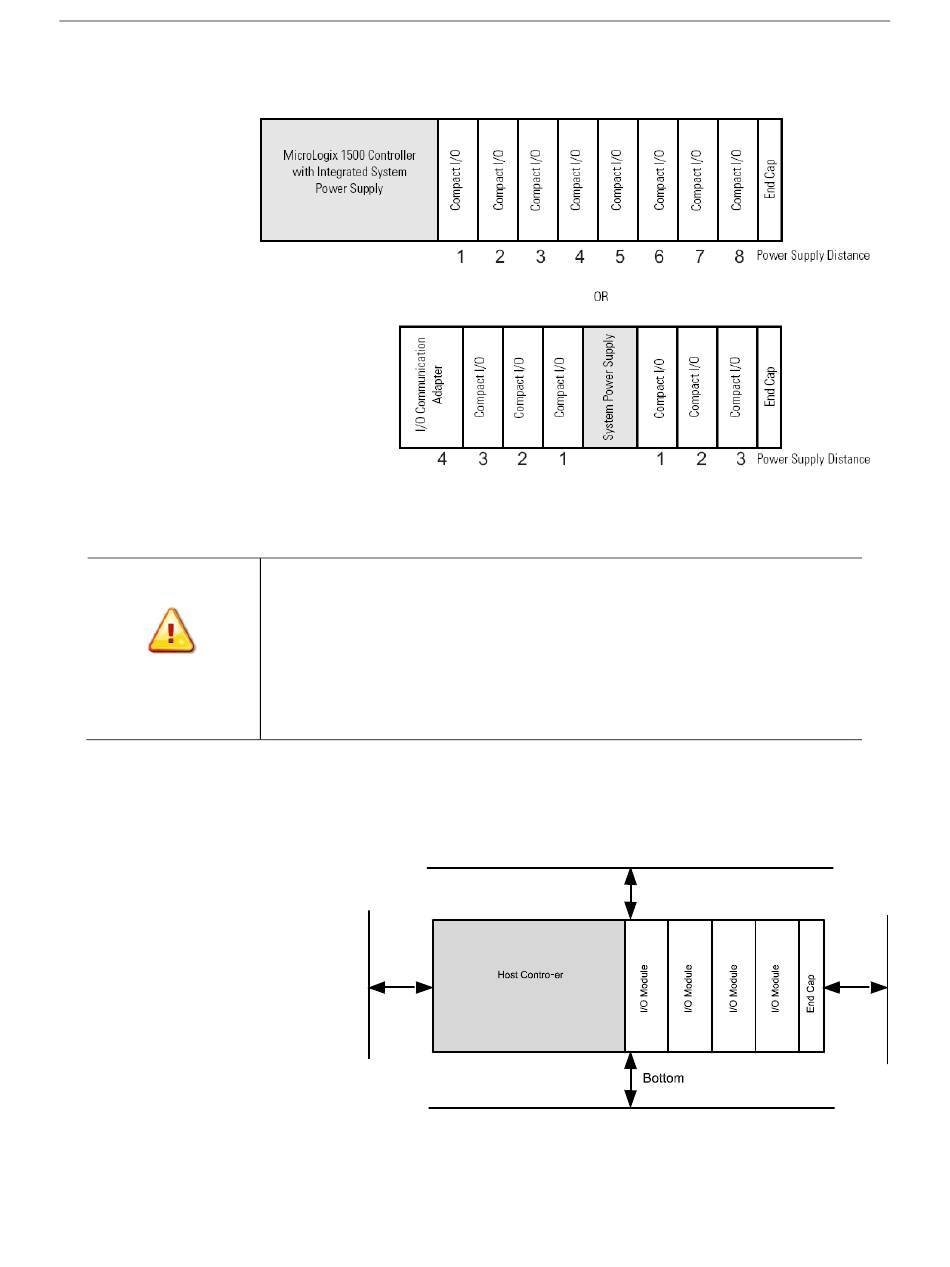

Maintain spacing from enclosure walls, wire ways, adjacent equipment, etc.
Allow 50.8 mm (2 in.) of space on all sides for adequate ventilation, as shown:
Chapter 2: Installation and Wiring
User's Manual Pub. 0300244-02 Rev. A
2-5
