Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW

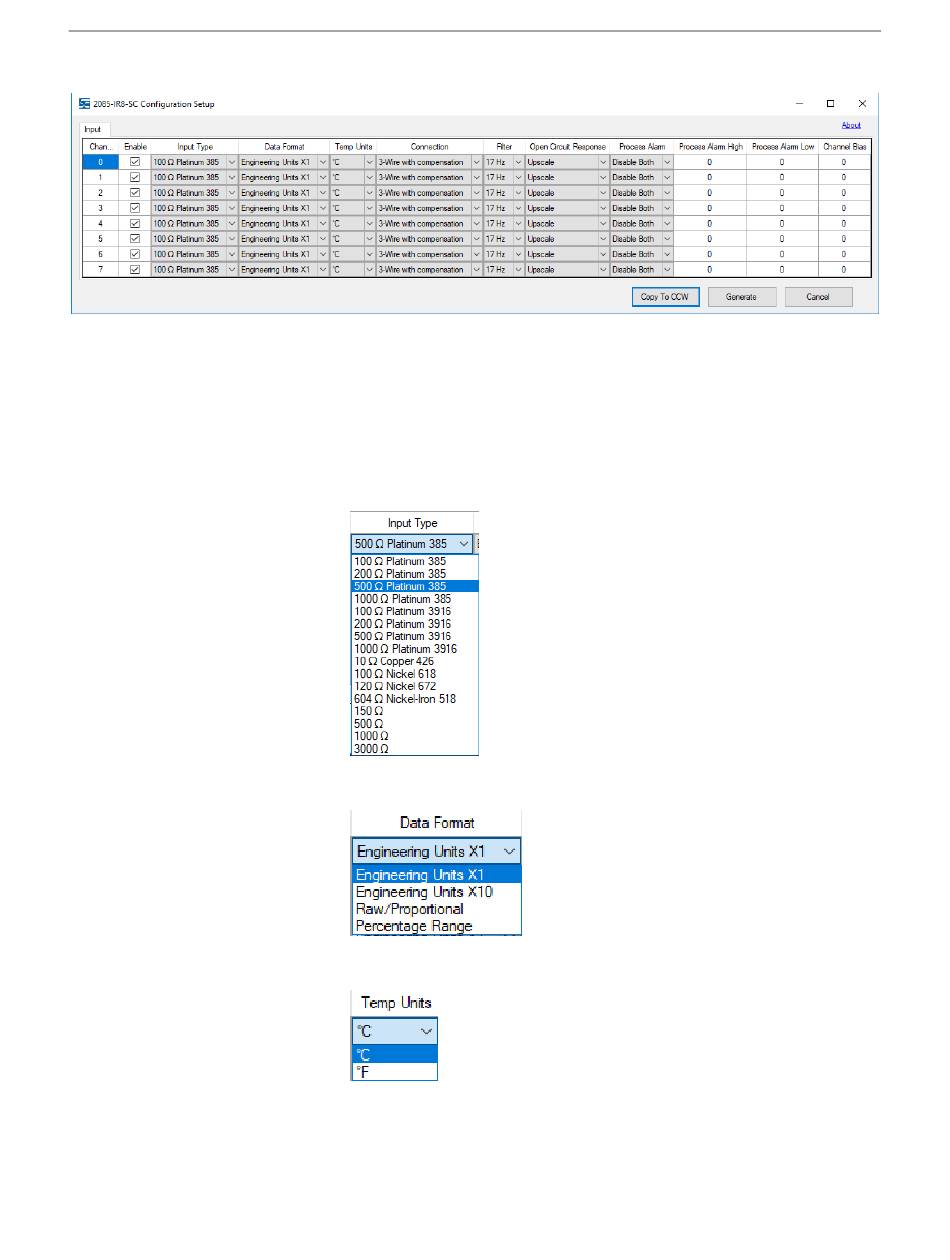

The 2085-IR8-SC Configuration Setup dialog appears:
6. View and specify the following options as needed. See Channel
Configuration Bit locations listed later in this section for details on the
settings for every configuration bit:
Chan. Lists number of input channel from 0 to 7.
Enable. Specifies whether to enable use of this channel. Enabled by
default (checkbox enabled).
Input Type. Specifies which input type to use. Select type from
drop-down list. 100 Ω Platinum 385 is default:
Data Format. Specifies which data format to use for reporting input
values. Default is Engineering Units X1:
Temp Units. Specifies the temperature units the module reports in
Centigrade or Fahrenheit. Default is Centigrade:
User's Manual Pub. 0300321-01 Rev. A
3-9
