Mounting
WARNING
Keeping module free of debris and avoiding overheating:
•
Do not remove protective debris strip until after the module and
all other equipment near the module is mounted and the wiring is
complete.
•
Once wiring is complete, and the module is free of debris,
carefully remove protective strip.
•
Failure to remove strip before operating can cause overheating.

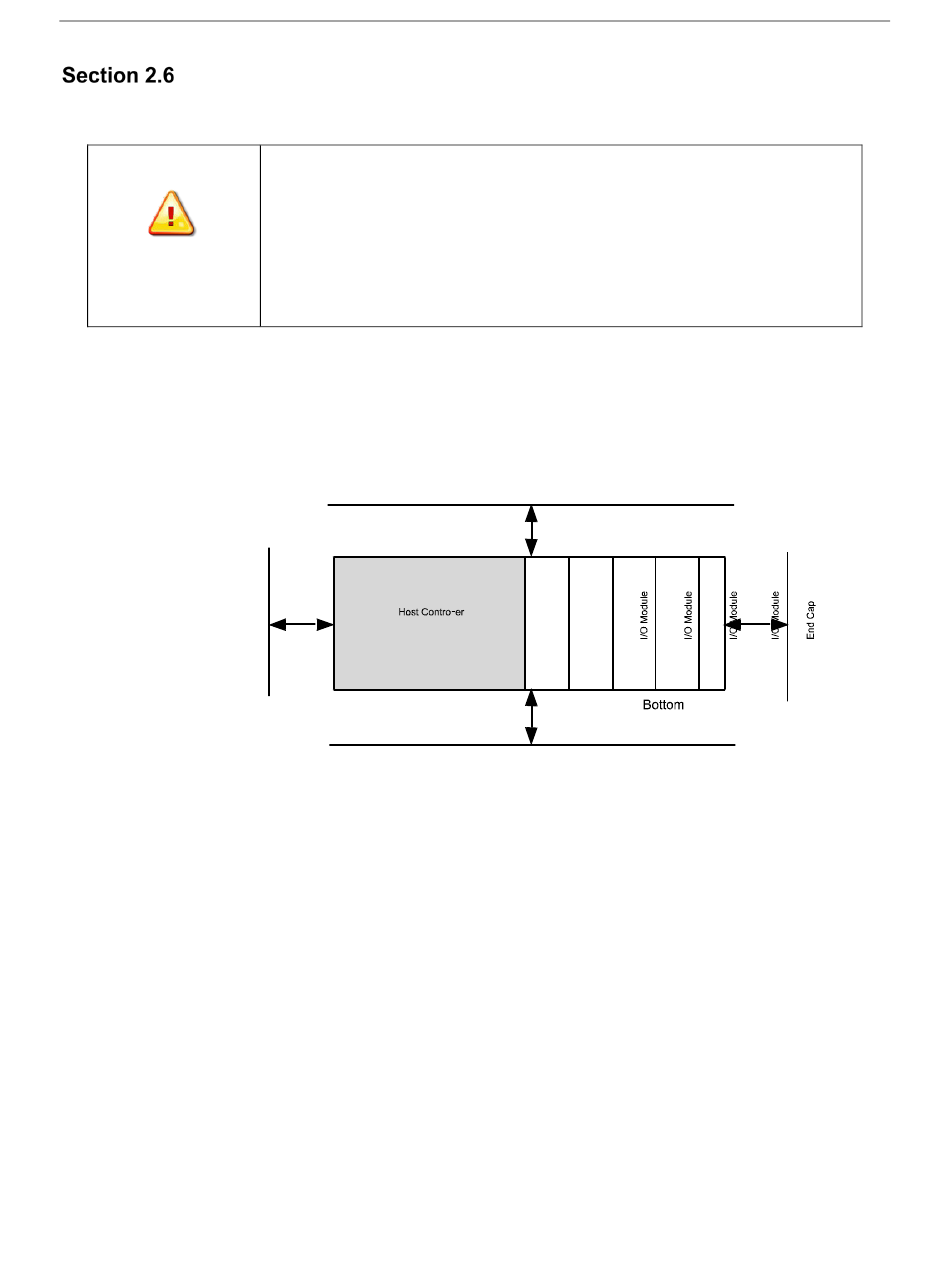

2.6.1 Minimum Spacing
Maintain spacing from enclosure walls, wire ways, adjacent equipment, etc.
Allow 50.8 mm (2 in.) of space on all sides for adequate ventilation, as shown:
Figure 2-2. Minimum Spacing
Chapter 1: Module Overview
User's Manual Pub. 0300241-02 Rev. A
2-5
