Spectrum Controls Micro800 2085-IR8-SC User Manual page 27

Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW
2. When prompted by Windows User Account Control, to confirm that you
wish to run the program, click Yes button.
If necessary, confirm with the Windows operating system that you wish

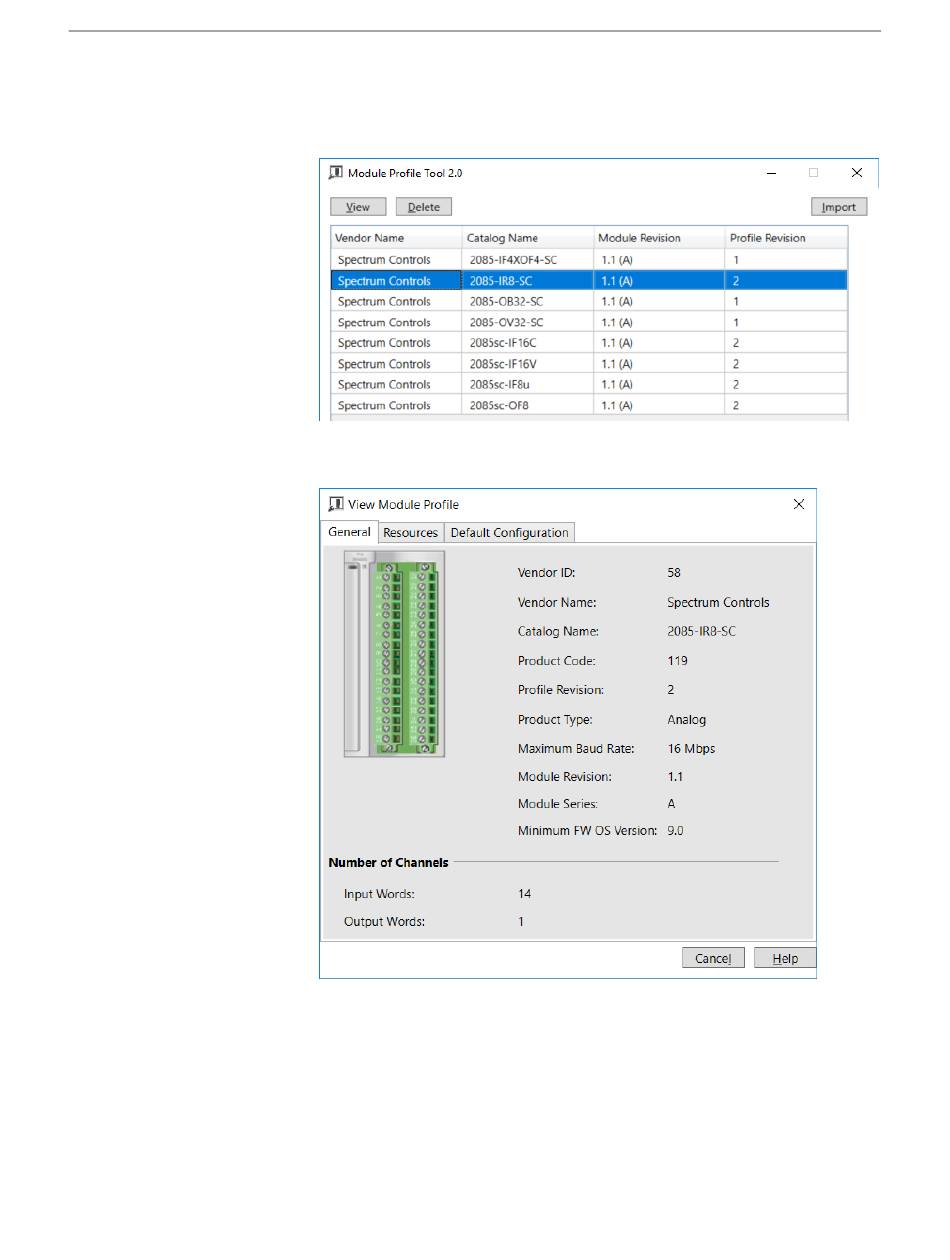

to run the software. The Module Profile Tool dialog appears:
3. Select the row showing the module catalog name, and then click the
View button.
The View Module Profile window appears:
The first tab of the window provides the module identity information.
This information is described in greater detail in Module Identity, later
in this section.
4. To view software language availability, module description, and a help
file for the module, click the Resources tab.
User's Manual Pub. 0300321-01 Rev. A
3-3
