2-4
Chapter 2: Installation and Wiring
2
Description
1
Mounting screw hole/mounting foot
2
Removable Terminal Block (RTB)
3
RTB hold down screws
4
Module interconnect latch
User's Manual Pub. 0300309-01 Rev. A

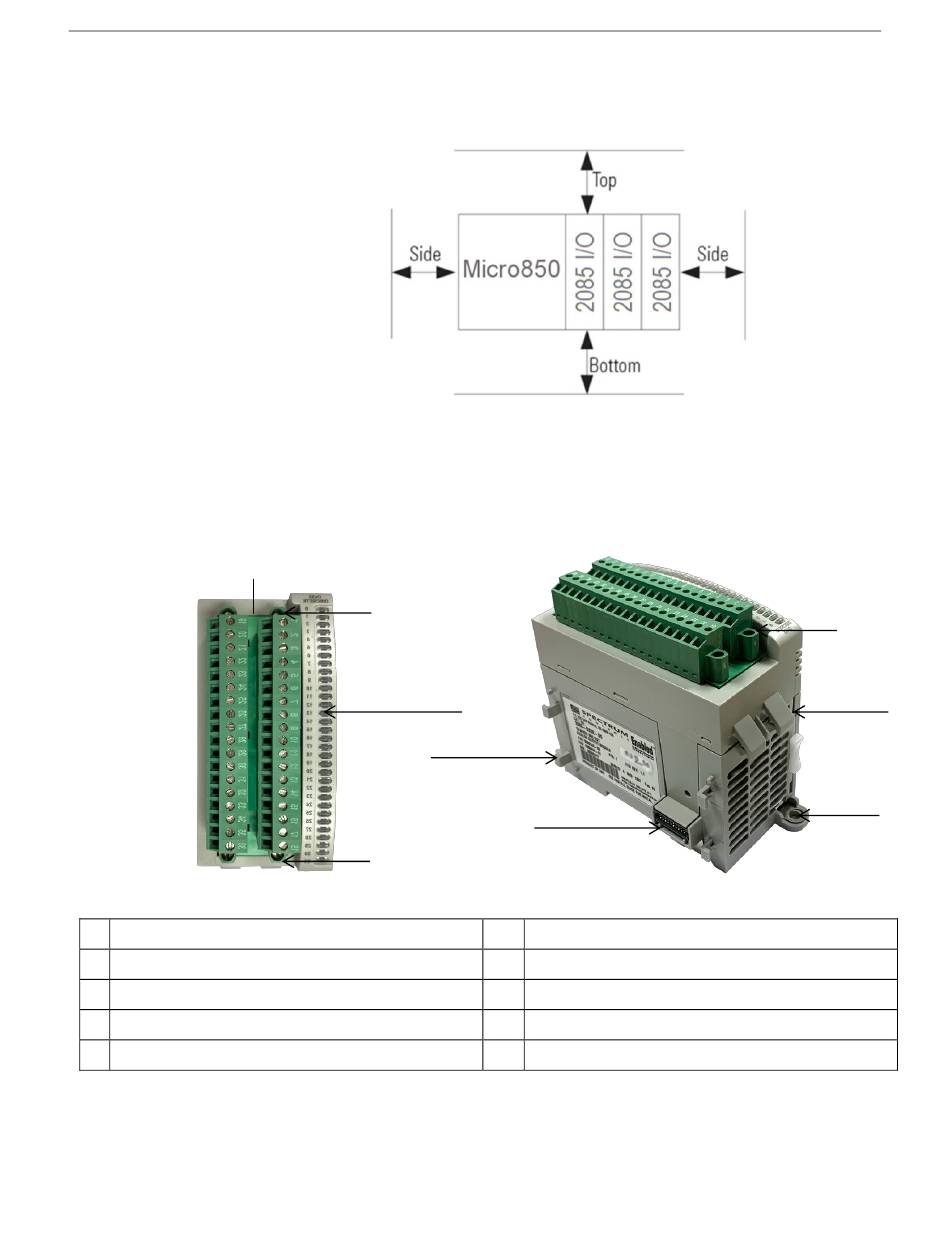

2.3.1 Minimum Spacing

Maintain spacing from enclosure walls, wire ways, adjacent equipment, etc.
Allow 50.8 mm (2 in.) of space on all sides for adequate ventilation, as shown:

2.3.2 Parts List

Your package contains one Micro800 Expansion I/O 2085-OX32-SC Module and
one Quick Start Guide.

2.3.3 Module Description

3
4
3
6
7
Description
5
DIN rail mounting latch
6
I/O Status LEDs
7
Bus Connector (2, Right and Left)
3
5
1
