3-4
Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW
User's Manual Pub. 0300321-01 Rev. A

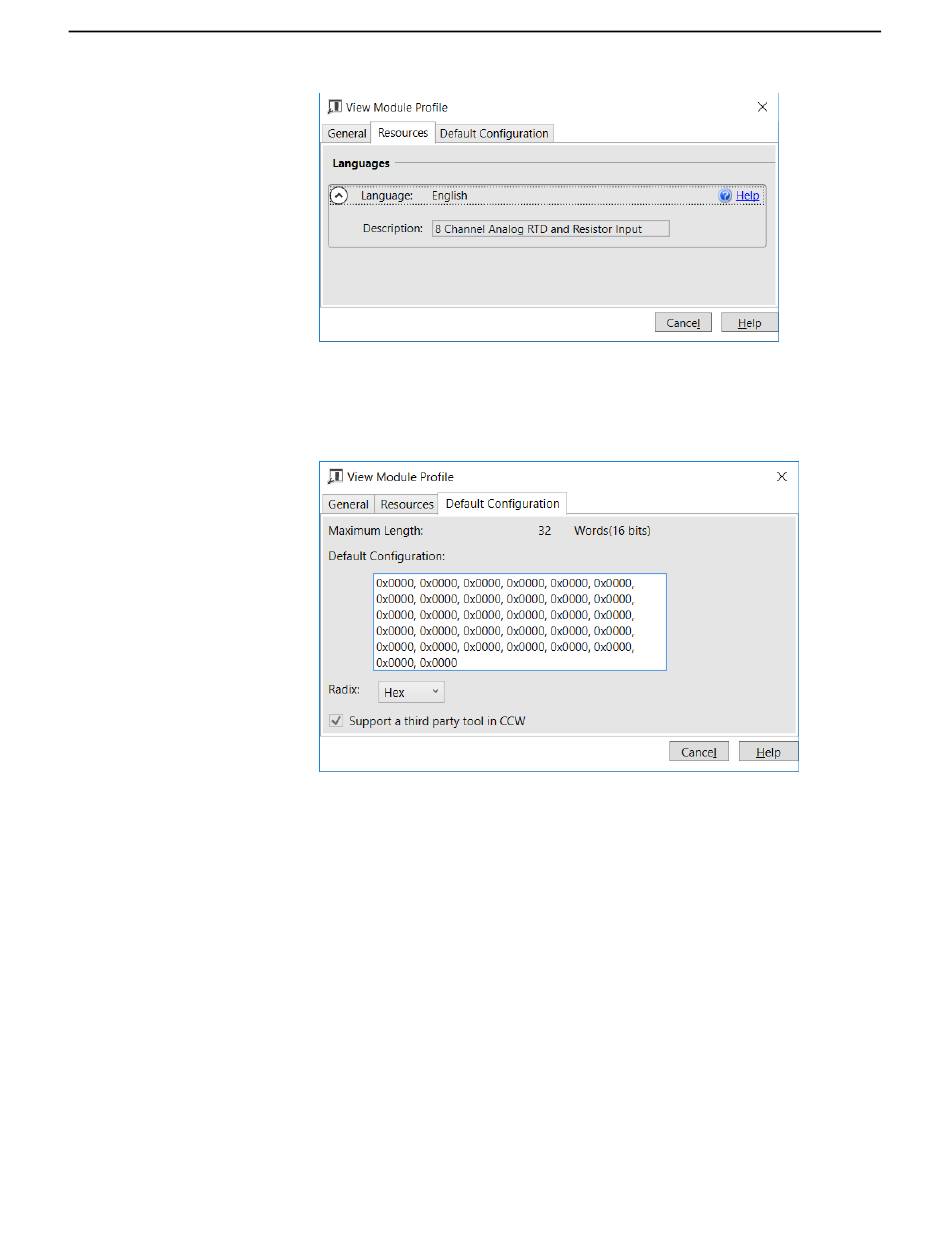

The Resources tab appears:
The window lists the language chosen for the module, and the module
description. You may also use this tab to access the help file provided for
the module.
5. To view default configuration information, click the Default
Configuration tab:
6.
The enabled checkbox shown on the bottom of the tab indicates that the
software provides the service for launching the MCC utility to help you
configure your module. More information is described in Setting
Configuration Parameters Using MCC, later in this section.
