3-2 Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW
Resistance
150, 500, 1 k, 3 kΩ
RTD & R Analog Input Module
Section 3.2
Importing a Profile
into CCW Software
User's Manual Pub. 0300321-01 Rev. A
PC Workstation
with CCW Program
and 2085-IR8-SC
User
RAMPP file
Micro800 Expansion I/O Module Backplane
2085-IR8-SC
8-Channel

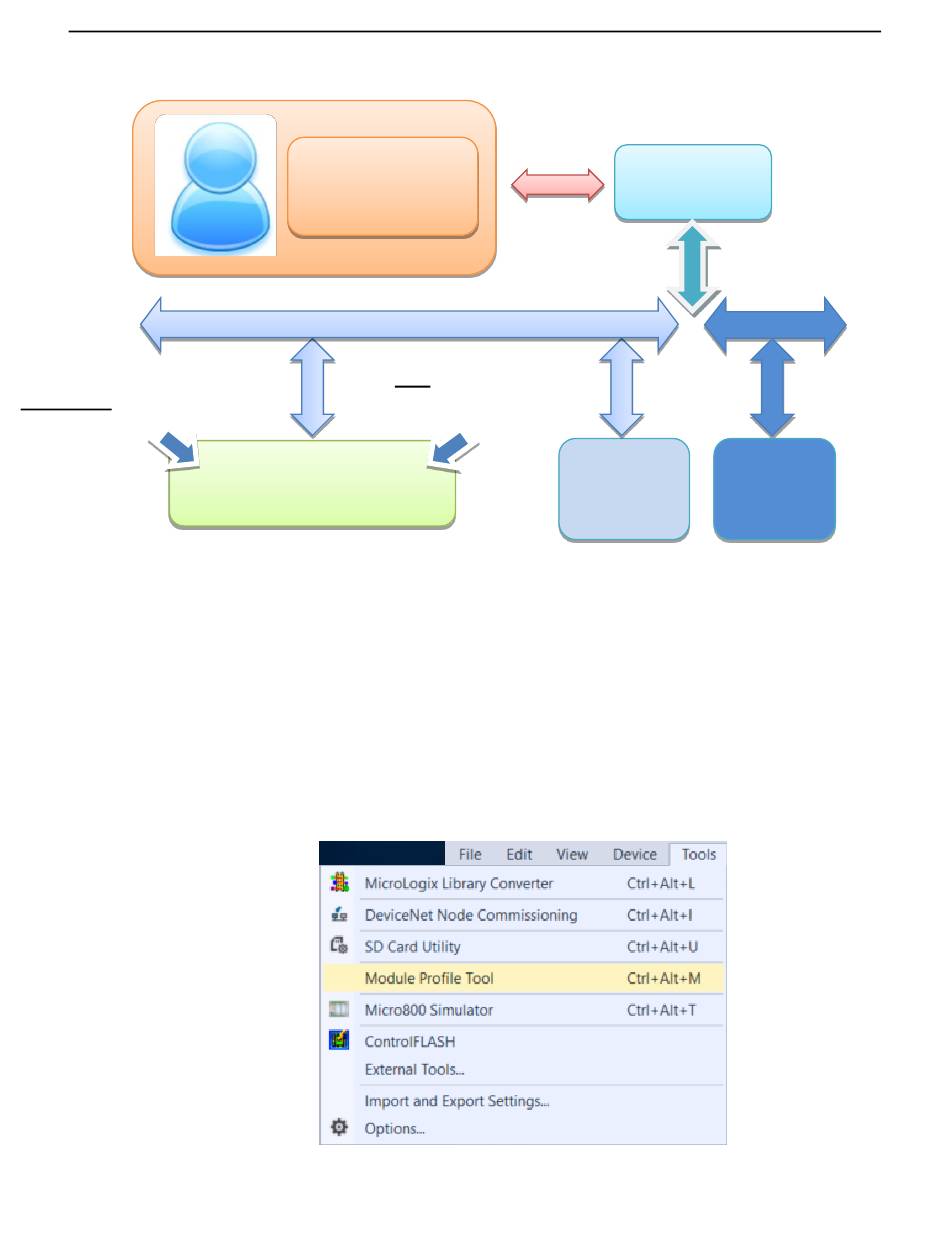

You use the module's add-on-profile to configure your module. The profile is
available in the CCW software. If not available, or a newer revision is released,
see Appendix A about how to manually import a module AOP to CCW.
To view information about the profile:
1. Use RA's Module Profile Tool 2.0. This tool may be launched from
within CCW by selecting the Module Profile Tool option from the
CCW Tools menu:
