3-30
Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW

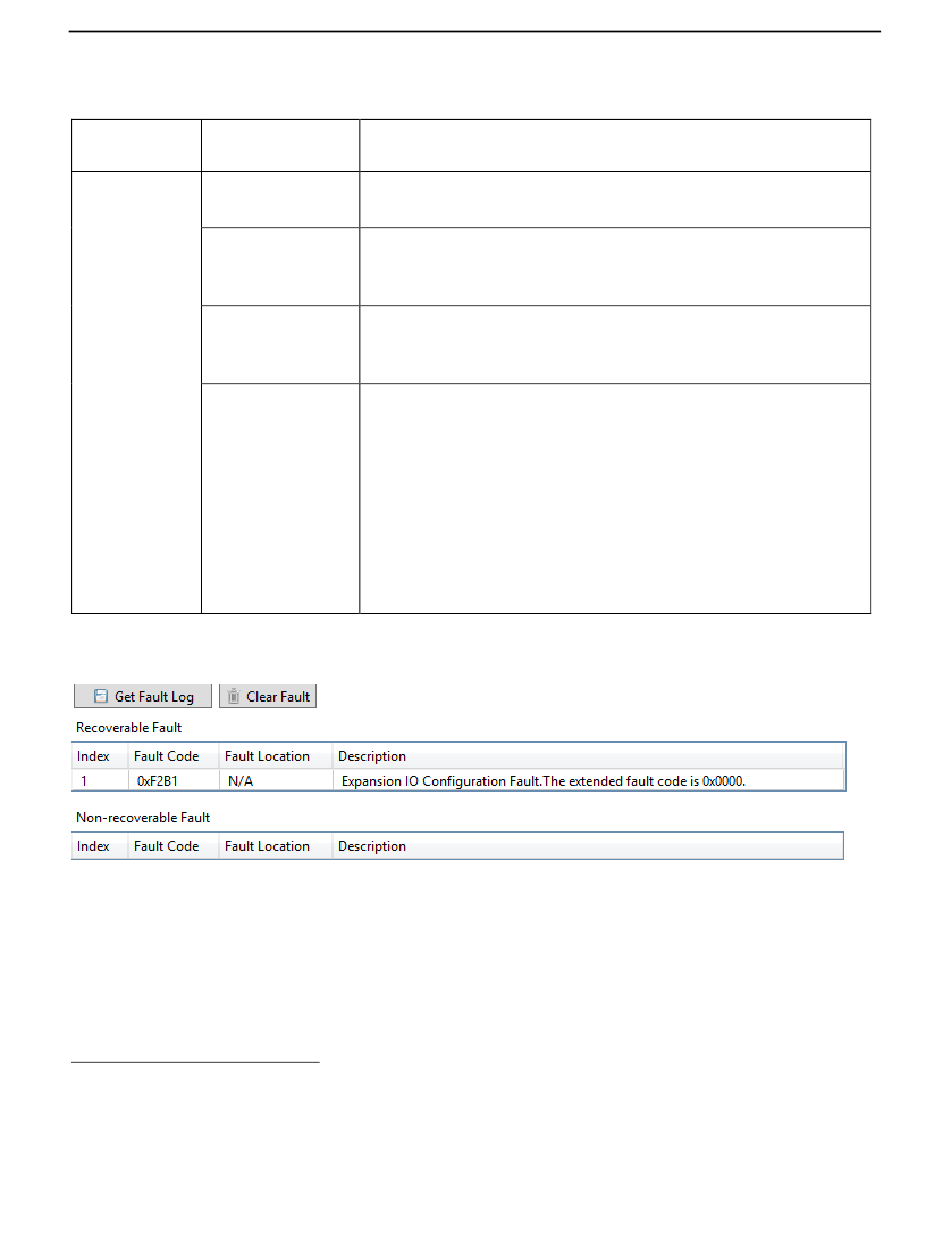

Fault Code
Extended Fault
Code
0×450
0×410 – 0×417
0×430 – 0×437
9
0×F2Bz
0×440 – 0×447
9
z indicates the slot number of the expansion I/O. If z=0, then the slot number cannot be identified.
User's Manual Pub. 0300321-01 Rev. A
If any of the following faults has happened, look up the Configuration Table to
use appropriate values:
Error Description
General Channel Configuration Error
No additional information
Configuration error on Invalid Connection Method
Connection Method selection error. Valid selections are 2-wire,
3-wire with compensation, and 4-wire.
Invalid Process Alarm and Latching
The selected Process Alarm option is out of the valid selectable
range.
Invalid Process Alarm Value
Check the Process Alarm Low Value and Process Alarm High
Value for legal ranges. If the module receives any of the
following illegal data, this error is detected:
PALV greater than or equal to PAHV
PAHV greater than Input Type High Limit
PALV less than Input Type Low Limit
(PALV is the Process Alarm Low Value)
(PAHV is the Process Alarm High Value)
The extended configuration fault code is not available and will be displayed as
0×0000 in Micro850 Series A & B PLCs and Micro870 Series A PLC.
