2-4
Chapter 2: Installation and Wiring

Mounting

WARNING
User's Manual Pub. 0300309-01 Rev. B
Keeping module free of debris and avoiding overheating:
Do not remove protective debris strip until after the module and
all other equipment near the module is mounted and the wiring is
complete.
Once wiring is complete, and the module is free of debris,
carefully remove protective strip.
Failure to remove strip before operating can cause overheating.

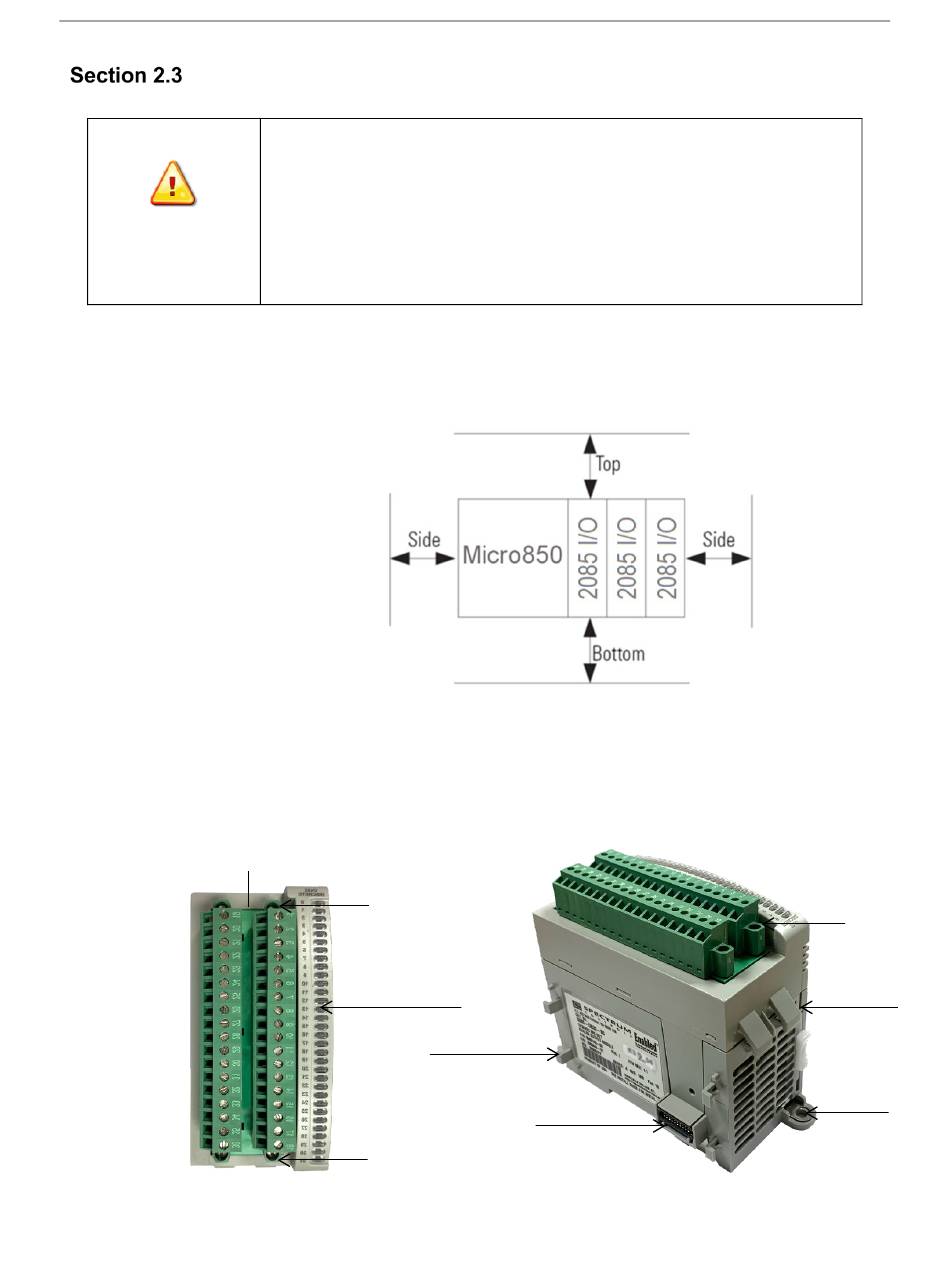

2.3.1 Minimum Spacing

Maintain spacing from enclosure walls, wire ways, adjacent equipment, etc.
Allow 50.8 mm (2 in.) of space on all sides for adequate ventilation, as shown:

2.3.2 Parts List

Your package contains one Micro800 Expansion I/O 2085-OX32-SC Module and
one Quick Start Guide.

2.3.3 Module Description

2
3
4
3
6
7
3
5
1
