3-8
Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW
User's Manual Pub. 0300321-01 Rev. A

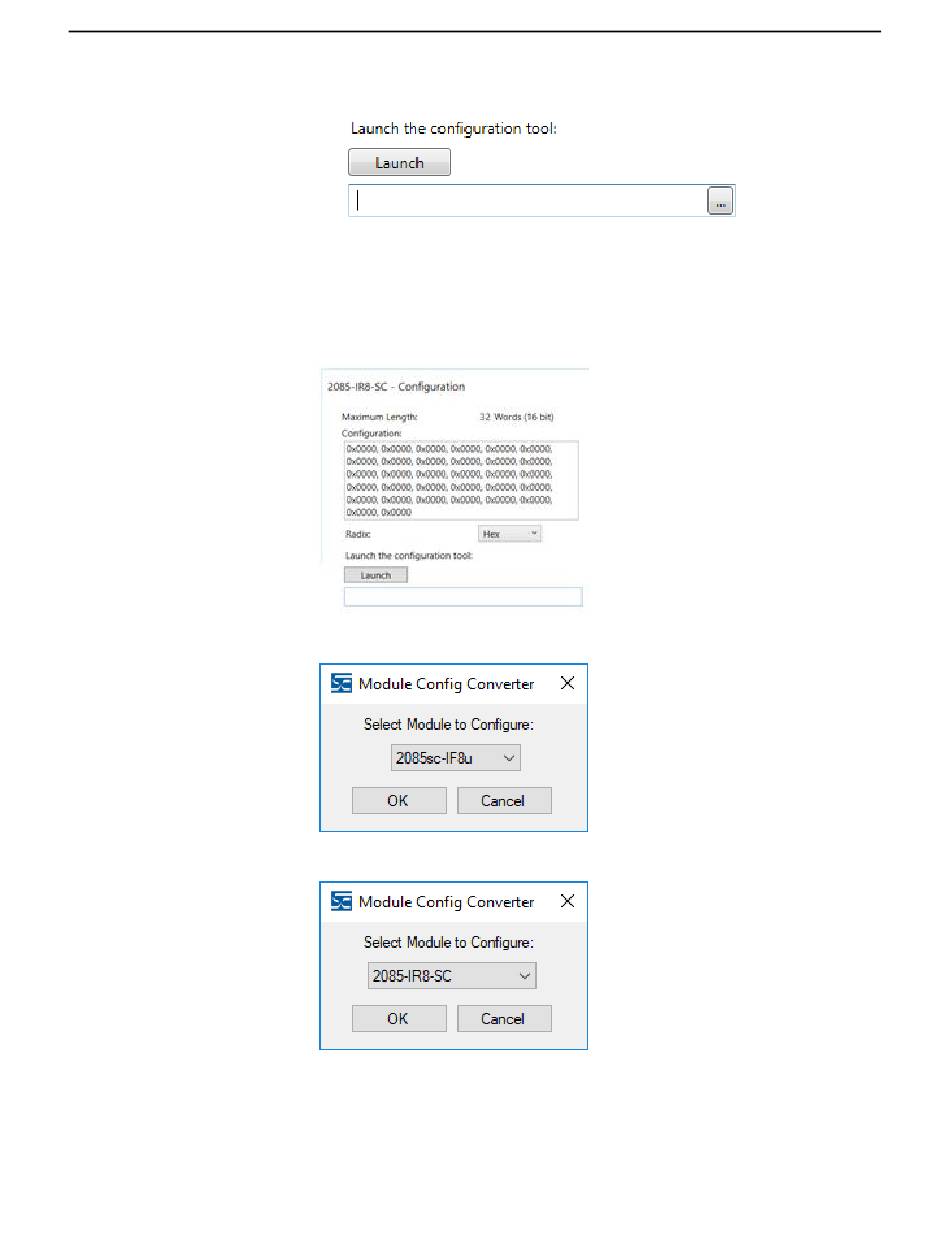

2. Navigate to the CCW Configuration Tab and click in the file path
textbox below the Launch button.
The Browse button appears.
3. Click the button, navigate to the directory where you installed the CCW
program, and select the ModuleConfigConverter tool located in the
Spectrum Tool directory:
Example. C:\Program Files (x86)\Rockwell
Automation\CCW\SpectrumTool
4. To run the tool, click Launch. The Module Config Converter dialog
appears:
5. Select the 2085-IR8-SC module from the drop-down menu, and click
OK:
