Chapter 3: Configuring the Micro800 Expansion I/O 2085-IR8-SC Using CCW
5
It is recommended that before manually or automatically pasting your configuration settings to the textbox
of the CCW Configuration tab, be sure to select the Hex Radix indication on both software packages. The
CCW software is unable to receive negative values under Decimal Radix indication.

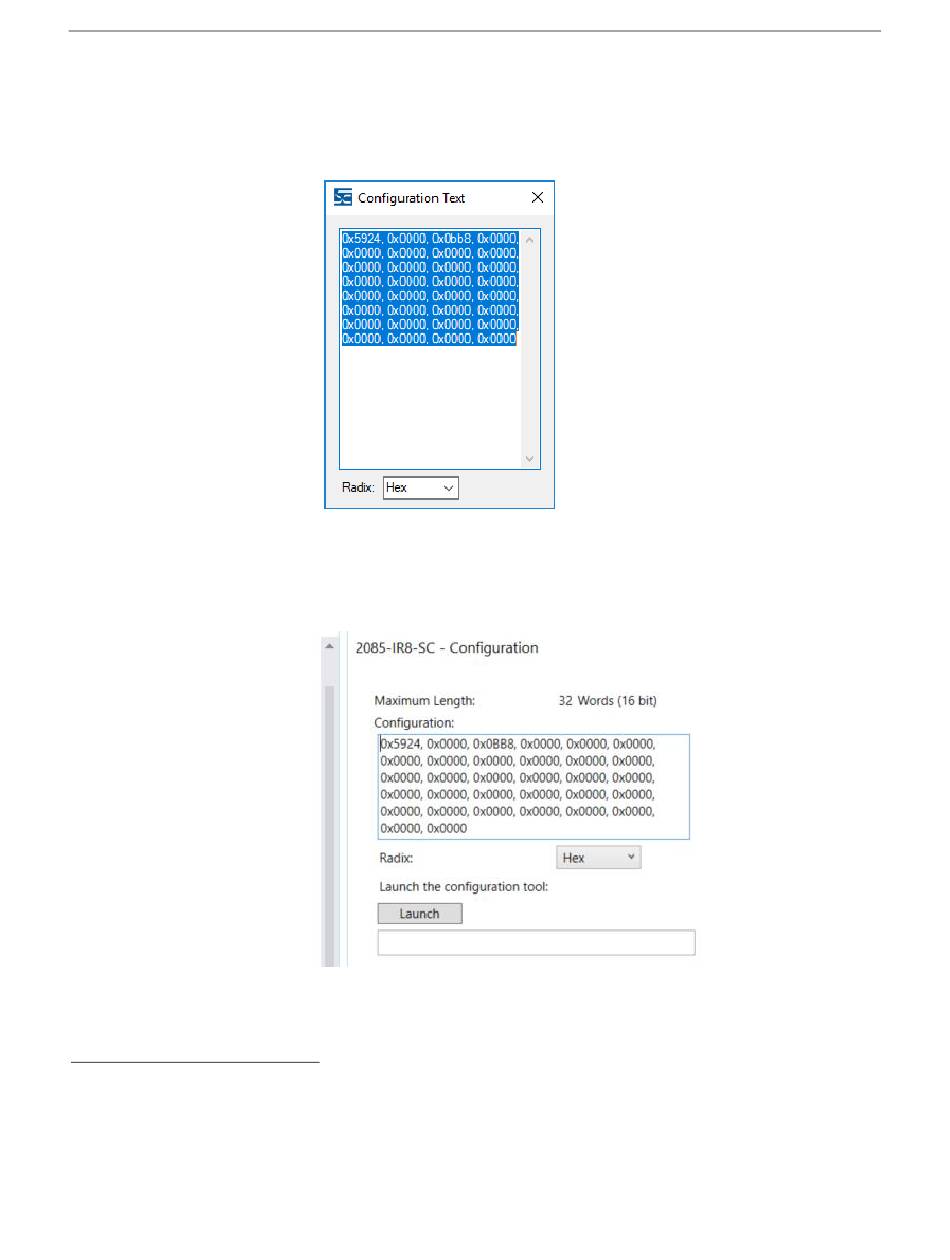

7. When finished making selections, click Generate.
The Configuration Text dialog appears with your configuration settings
for all the channels.
You can manually copy the settings and paste it to the textbox of the
CCW Configuration tab
8. To automatically copy the generated settings into the textbox of the
CCW Configuration tab, have the textbox visible on the monitor screen,
and then click Copy to CCW button
9. The utility copies the configuration settings and shows it inside the
textbox.
10. Download the CCW project to controller and start to run the module
operation.
5
.
5
.
User's Manual Pub. 0300321-01 Rev. A
3-11
